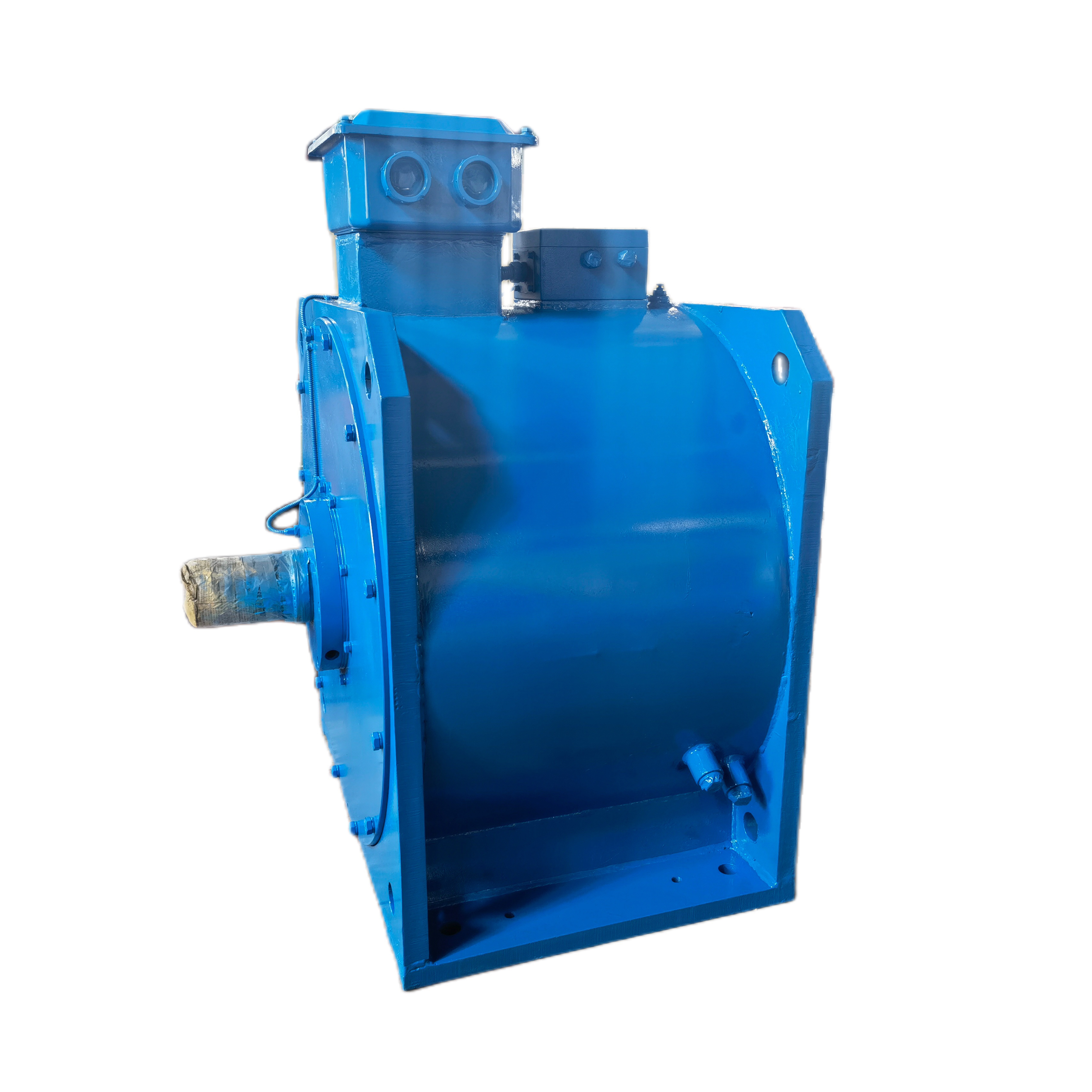

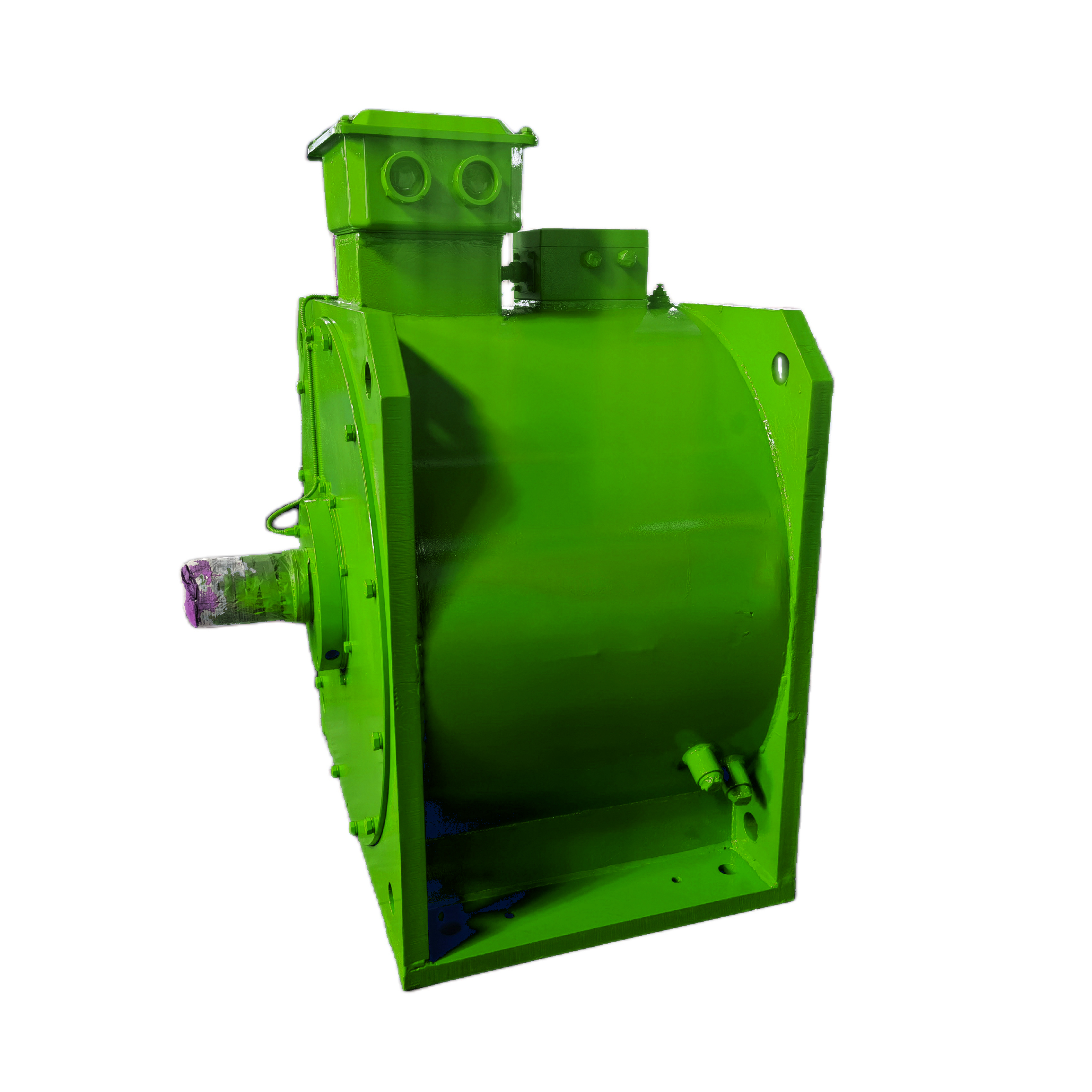

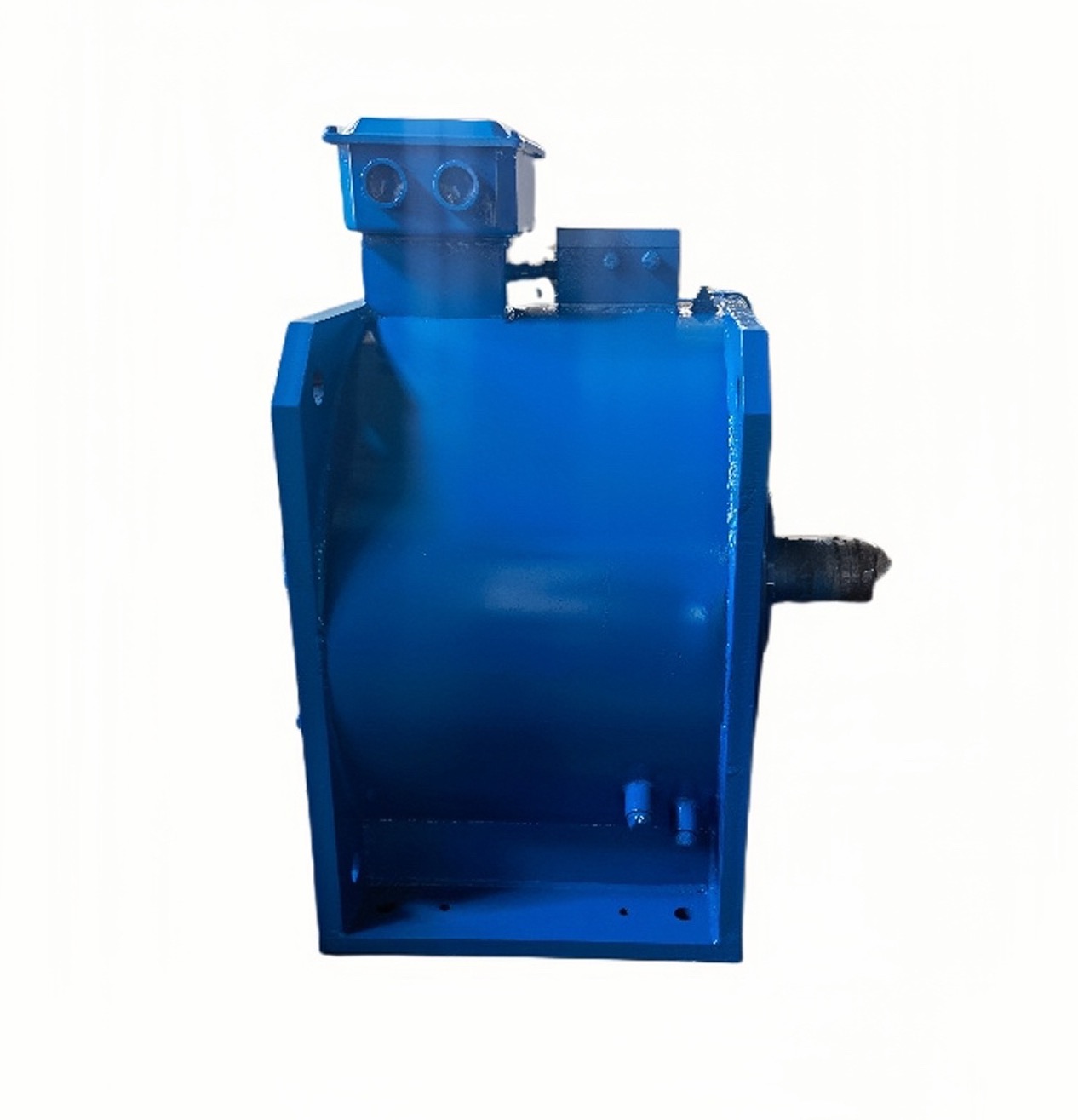

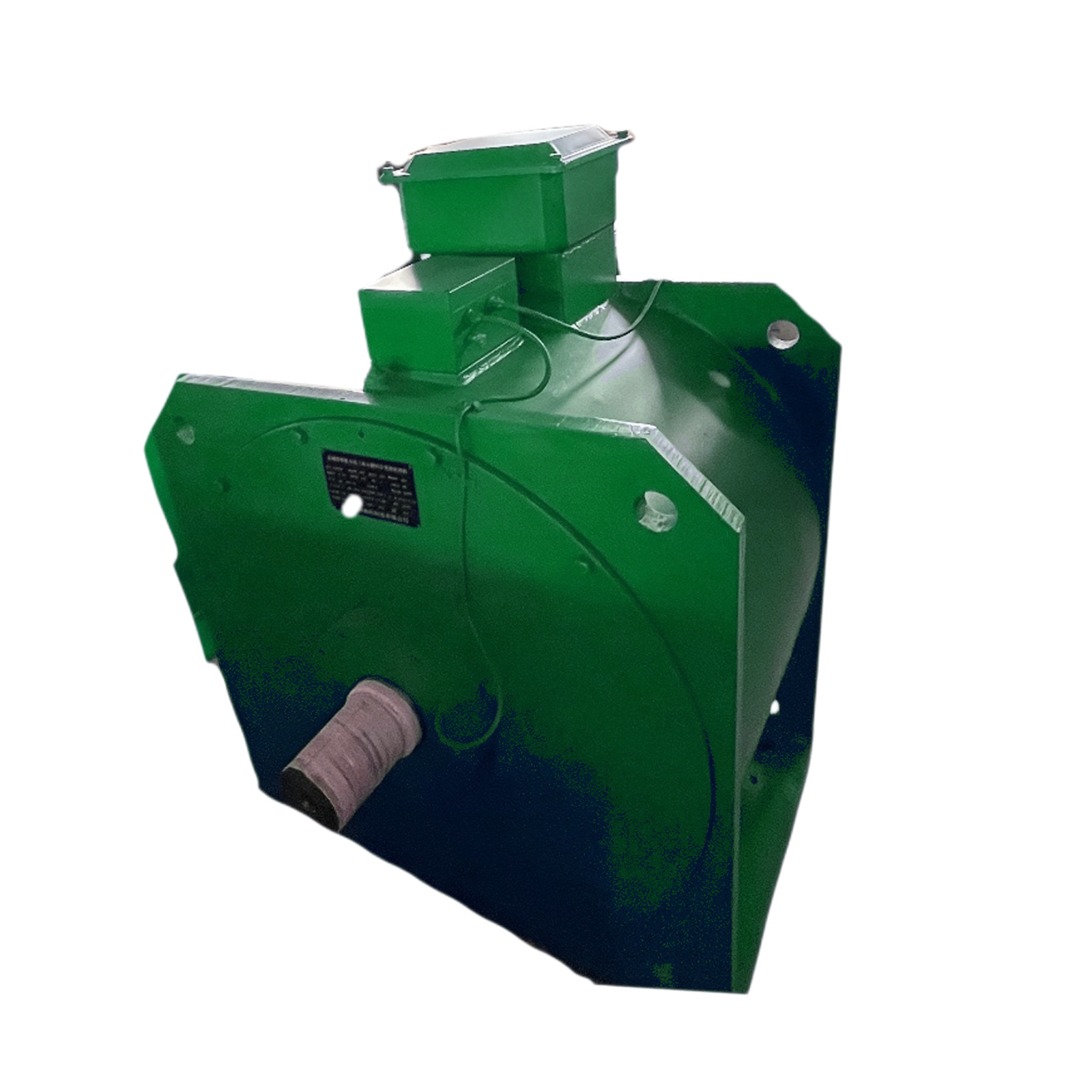

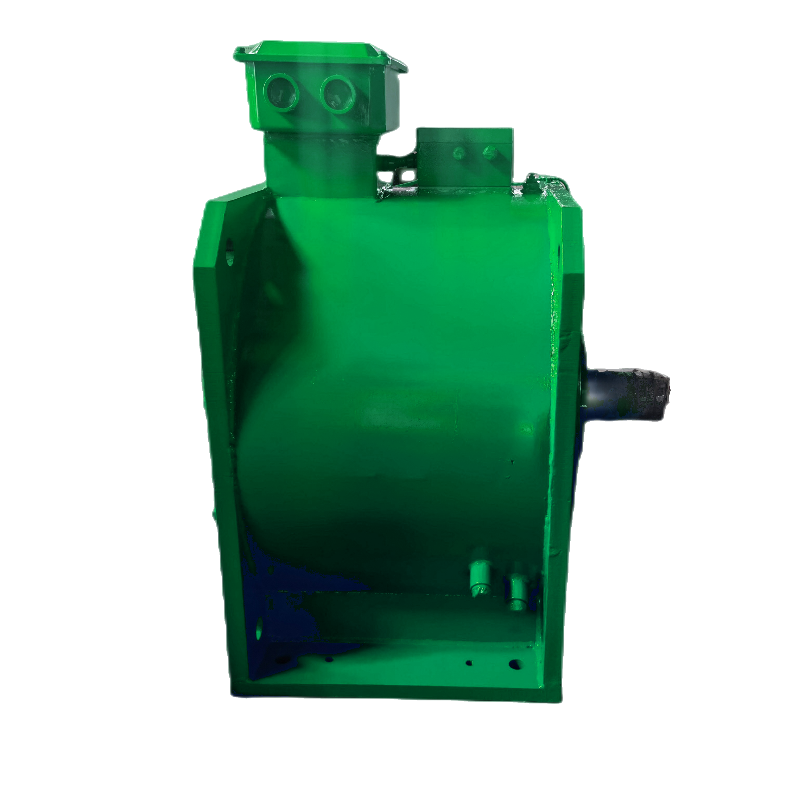

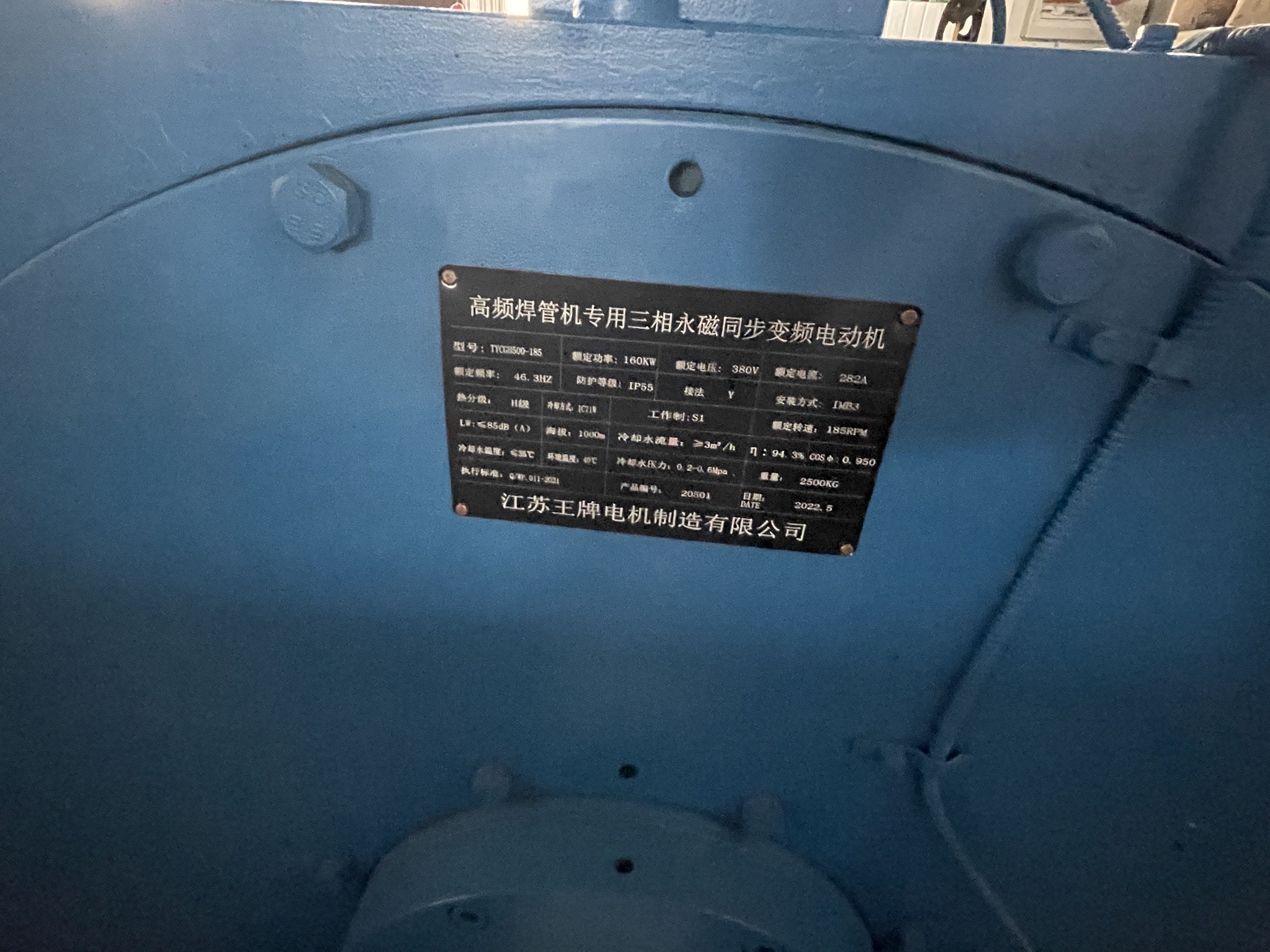

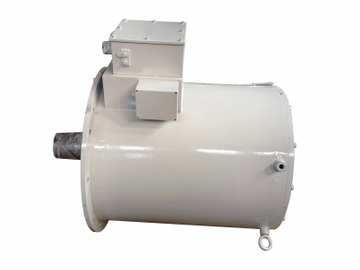

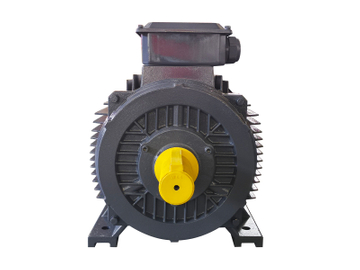

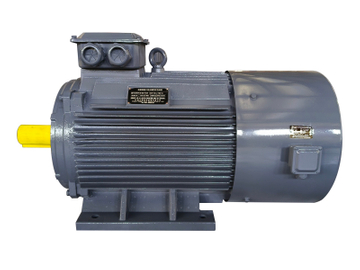

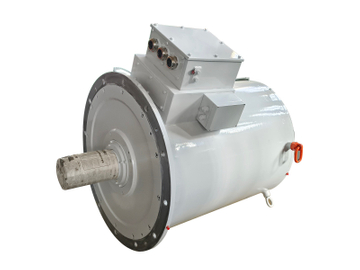

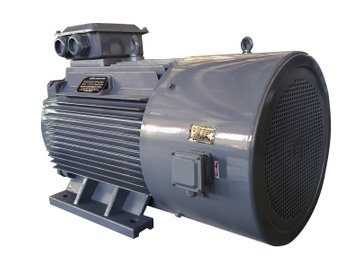

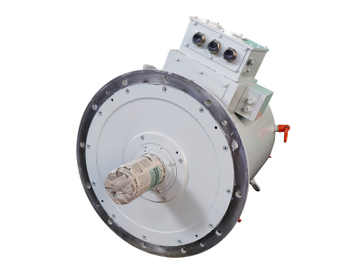

TPTYC Series Three-Phase Variable-Frequency Permanent Magnet Synchronous Direct-Drive Motor
TPTYC permanent magnet synchronous motors are designed for low-voltage direct drive retrofit, replacing the classic "motor + gearbox + coupling" arrangement with a single, gearless, high-efficiency drive. By eliminating the gearbox, plant operators remove its maintenance cost, oil changes, alignment issues and efficiency losses — total system efficiency typically improves 5-15%.
The permanent magnet rotor delivers high torque at low speed, exactly where geared drives were previously required, with smooth low-speed operation and high dynamic response from a standard VFD. Available in 380V / 660V / 1140V ratings with custom low-speed / high-torque specifications. Typical applications: conveyor direct drives, mixer and agitator retrofits, extruder drives, and any low-speed high-torque process where gearbox reliability is a concern. Compact design simplifies installation; each motor is tested per IEC 60034 with full documentation.
| Parameter | Value |
|---|
| Motor Type | TPTYC Series Three-Phase Variable-Frequency PM Synchronous Direct-Drive Motor (PMSM) |
| Model Designation | T (synchronous) + PT (permanent magnet) + YC (variable-frequency) + frame height (mm) |
| Rated Voltage | 380V / 660V / 1140V (Low Voltage); HV version 3.3kV / 6kV / 10kV |
| Rated Power Range | 30 - 1000 kW (Low Voltage); 220 - 2000 kW (High Voltage) |
| Rated Speed | 60 / 75 / 90 r/min (direct drive, low speed high torque) |
| Frame / Center Height | 400 - 1000 mm |
| Efficiency | 91.5% - 96% |
| Power Factor | 0.95 - 0.96 |
| Rated Torque | Up to ~53,000 N·m (high-torque low-speed) |
| Insulation | Class H (grade 180) |
| Protection | IP55 |
| Duty | S1 (continuous) |
| Cooling | Water-cooled IC416 |
| Mounting | B3 (horizontal) / B35 (vertical) |
| Vibration | ≤ 1.8 mm/s |
| Noise | Class A (low noise) |
| Design | Gearless Direct Drive (no gearbox / reducer), mechanical efficiency 100% |
| Drive System | PM direct-drive motor + dedicated VFD control + water cooling — SPFD Intelligent PM VFD Direct-Drive System |
| Shaft Length | S / M / L options |
| Application | Low-speed, high-torque direct-drive applications: conveyor / mixer / extruder direct drives |
