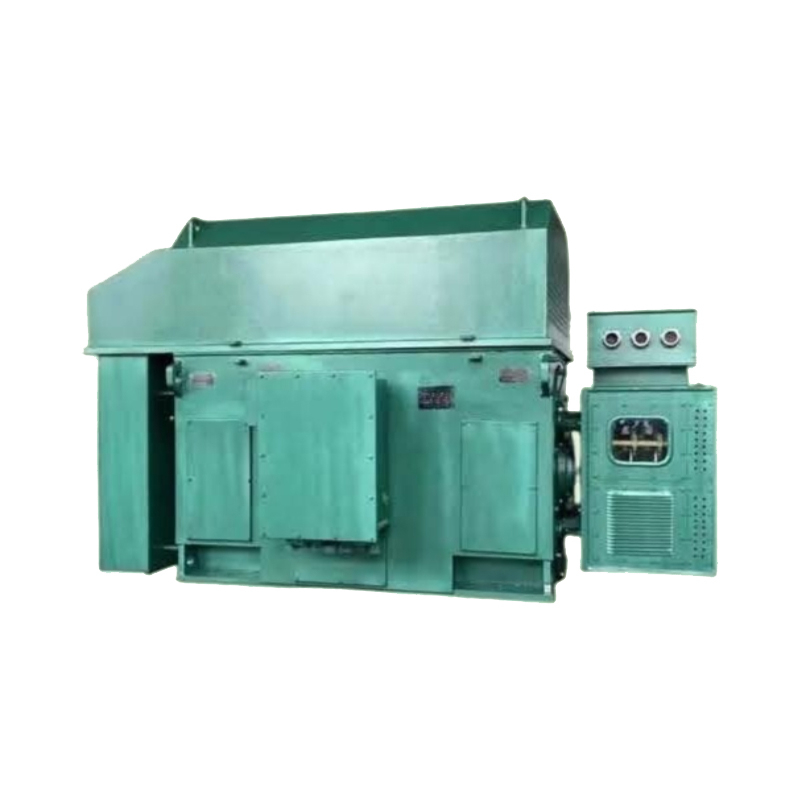

YRKK series wound rotor high voltage motor
WPDJ
| YRKK系列（6000伏）异步电动机技术参数（保证值） | |||||||||
| YRKK series 6000V Asynchronous Motor fechnical Data (Ensure Value) | |||||||||
| 型号 Type | 额定功率 Rated Output (kW) | 额定电流 Rated Current (A) | 同步转速 Speed (r/min) | 效率Efficiency % | 功率因数 Power Favtor (cosΦ) | 最大转矩额定转矩 Mmax Mn | 重量 Weight (Kg) | ||
| YRKK710-4 | 2240 | 257.0 | 1500 | 96.4 | 0.87 | 1.8 | 12200 | ||
| YRKK710-4 | 2500 | 286.5 | 1500 | 96.5 | 0.87 | 1.8 | 12760 | ||
| YRKK710-4 | 2800 | 320.6 | 1500 | 96.6 | 0.87 | 1.8 | 13130 | ||
| YRKK710-4 | 3150 | 360.7 | 1500 | 96.6 | 0.87 | 1.8 | 14500 | ||
| YRKK800-4 | 3550 | 408.2 | 1500 | 96.2 | 0.87 | 1.8 | 15670 | ||
| YRKK800-4 | 4000 | 459.4 | 1500 | 96.3 | 0.87 | 1.8 | 16000 | ||
| YRKK800-4 | 4500 | 515.8 | 1500 | 96.5 | 0.87 | 1.8 | 16780 | ||
| YRKK710-6 | 1600 | 196.3 | 1000 | 94.5 | 0.83 | 1.8 | 12500 | ||
| YRKK710-6 | 1800 | 220.6 | 1000 | 94.6 | 0.83 | 1.8 | 13000 | ||
| YRKK710-6 | 2000 | 244.9 | 1000 | 94.7 | 0.83 | 1.8 | 13580 | ||
| YRKK710-6 | 2240 | 273.9 | 1000 | 94.8 | 0.83 | 1.8 | 13800 | ||
| YRKK800-6 | 2500 | 305.7 | 1000 | 94.8 | 0.83 | 1.8 | 16500 | ||
| YRKK800-6 | 2800 | 342.1 | 1000 | 94.9 | 0.83 | 1.8 | 17200 | ||
| YRKK800-6 | 3150 | 384.4 | 1000 | 95.0 | 0.83 | 1.8 | 18500 | ||
| YRKK800-6 | 3550 | 432.8 | 1000 | 95.1 | 0.83 | 1.8 | 19230 | ||
| YRKK710-8 | 1400 | 176.9 | 750 | 94.0 | 0.81 | 1.8 | 12000 | ||
| YRKK710-8 | 1600 | 202.0 | 750 | 94.1 | 0.81 | 1.8 | 12500 | ||
| YRKK710-8 | 1800 | 227.0 | 750 | 94.2 | 0.81 | 1.8 | 13120 | ||
| YRKK800-8 | 2000 | 252.0 | 750 | 94.3 | 0.81 | 1.8 | 13760 | ||
| YRKK800-8 | 2240 | 281.9 | 750 | 94.4 | 0.81 | 1.8 | 15900 | ||
| YRKK800-8 | 2500 | 314.3 | 750 | 94.5 | 0.81 | 1.8 | 16670 | ||
| YRKK900-8 | 2800 | 347.3 | 750 | 94.6 | 0.82 | 1.8 | 21500 | ||
| YRKK900-8 | 3150 | 390.3 | 750 | 94.7 | 0.82 | 1.8 | 22900 | ||
| YRKK900-8 | 3550 | 439.4 | 750 | 94.8 | 0.82 | 1.8 | 23450 | ||
| YRKK710-10 | 1120 | 146.1 | 600 | 93.4 | 0.79 | 1.8 | 11580 | ||
| YRKK710-10 | 1250 | 162.8 | 600 | 93.5 | 0.79 | 1.8 | 12560 | ||
| YRKK710-10 | 1400 | 182.2 | 600 | 93.6 | 0.79 | 1.8 | 13455 | ||
| YRKK800-10 | 1600 | 208.0 | 600 | 93.7 | 0.79 | 1.8 | 14570 | ||
| YRKK800-10 | 1800 | 233.7 | 600 | 93.8 | 0.79 | 1.8 | 16500 | ||
| YRKK800-10 | 2000 | 259.4 | 600 | 93.9 | 0.79 | 1.8 | 17200 | ||
| YRKK900-10 | 2240 | 290.3 | 600 | 94.0 | 0.79 | 1.8 | 23500 | ||
| YRKK900-10 | 2500 | 323.6 | 600 | 94.1 | 0.79 | 1.8 | 24580 | ||
| YRKK900-10 | 2800 | 362.1 | 600 | 94.2 | 0.79 | 1.8 | 25000 | ||
| YRKK900-10 | 3150 | 406.9 | 600 | 94.3 | 0.79 | 1.8 | 25980 | ||
| YRKK1000-10 | 3550 | 452.3 | 600 | 94.4 | 0.80 | 1.8 | 29500 | ||
| YRKK1000-10 | 4000 | 509.1 | 600 | 94.5 | 0.80 | 1.8 | 32340 | ||
| YRKK1000-10 | 4500 | 572.2 | 600 | 94.6 | 0.80 | 1.8 | 33750 | ||
| 型号 Type | 额定功率 Rated Output (kW) | 额定电流 Rated Current (A) | 同步转速 Speed (r/min) | 效率Efficiency % | 功率因数 Power Favtor (cosΦ) | 最大转矩额定转矩 Mmax Mn | 重量 Weight (Kg) |
| YRKK710-12 | 900 | 122.8 | 500 | 92.8 | 0.76 | 1.8 | 12000 |
| YRKK710-12 | 1000 | 136.3 | 500 | 92.9 | 0.76 | 1.8 | 13100 |
| YRKK710-12 | 1120 | 152.5 | 500 | 93.0 | 0.76 | 1.8 | 13560 |
| YRKK800-12 | 1250 | 170.0 | 500 | 93.1 | 0.76 | 1.8 | 16500 |
| YRKK800-12 | 1400 | 190.2 | 500 | 93.2 | 0.76 | 1.8 | 17900 |
| YRKK800-12 | 1600 | 217.1 | 500 | 93.3 | 0.76 | 1.8 | 18560 |
| YRKK800-12 | 1800 | 244.0 | 500 | 93.4 | 0.76 | 1.8 | 18900 |
| YRKK900-12 | 2000 | 267.3 | 500 | 93.5 | 0.77 | 1.8 | 22500 |
| YRKK900-12 | 2240 | 299.1 | 500 | 93.6 | 0.77 | 1.8 | 23120 |
| YRKK900-12 | 2500 | 333.4 | 500 | 93.7 | 0.77 | 1.8 | 24600 |
| YRKK1000-12 | 2800 | 373.0 | 500 | 93.8 | 0.77 | 1.8 | 30150 |
| YRKK1000-12 | 3150 | 419.2 | 500 | 93.9 | 0.77 | 1.8 | 31780 |
| YRKK1000-12 | 3550 | 472.0 | 500 | 94.0 | 0.77 | 1.8 | 32135 |
| YRKK1000-12 | 4000 | 531.2 | 500 | 94.1 | 0.77 | 1.8 | 33475 |
| YRKK710-16 | 500 | 73.0 | 375 | 91.5 | 0.72 | 1.8 | 11500 |
| YRKK710-16 | 560 | 81.7 | 375 | 91.6 | 0.72 | 1.8 | 12000 |
| YRKK710-16 | 630 | 91.8 | 375 | 91.7 | 0.72 | 1.8 | 12560 |
| YRKK710-16 | 710 | 103.4 | 375 | 91.8 | 0.72 | 1.8 | 13120 |
| YRKK800-16 | 800 | 116.3 | 375 | 91.9 | 0.72 | 1.8 | 16560 |
| YRKK800-16 | 900 | 130.7 | 375 | 92.0 | 0.72 | 1.8 | 16660 |
| YRKK800-16 | 1000 | 145.1 | 375 | 92.1 | 0.72 | 1.8 | 17050 |
| YRKK800-16 | 1120 | 162.4 | 375 | 92.2 | 0.72 | 1.8 | 18230 |
| YRKK900-16 | 1250 | 181.0 | 375 | 92.3 | 0.72 | 1.8 | 24240 |
| YRKK900-16 | 1400 | 202.5 | 375 | 92.4 | 0.72 | 1.8 | 25030 |
| YRKK900-16 | 1600 | 231.2 | 375 | 92.5 | 0.72 | 1.8 | 26980 |
| YRKK1000-16 | 1800 | 259.8 | 375 | 92.6 | 0.72 | 1.8 | 30225 |
| YRKK1000-16 | 2000 | 288.3 | 375 | 92.7 | 0.72 | 1.8 | 31590 |
| YRKK1000-16 | 2240 | 322.6 | 375 | 92.8 | 0.72 | 1.8 | 33590 |
| YRKK系列（10000伏）异步电动机技术参数（保证值） | |||||||||
| YRKKseries 10000V Asynchronous Motor fechnical Data (Ensure Value) | |||||||||
| 型号 Type | 额定功率 Rated Output (kW) | 额定电流 Rated Current (A) | 同步转速 Speed (r/min) | 效率Efficiency % | 功率因数 Power Favtor (cosΦ) | 最大转矩额定转矩 Mmax Mn | 重量 Weight (Kg) | ||
| YRKK710-4 | 2000 | 139 | 1500 | 95.5 | 0.87 | 1.8 | 13000 | ||
| YRKK710-4 | 2240 | 156 | 1500 | 95.5 | 0.87 | 1.8 | 13500 | ||
| YRKK710-4 | 2500 | 174 | 1500 | 95.6 | 0.87 | 1.8 | 14100 | ||
| YRKK710-4 | 2800 | 194 | 1500 | 95.6 | 0.87 | 1.8 | 14650 | ||
| YRKK800-4 | 3150 | 218 | 1500 | 95.7 | 0.87 | 1.8 | 15030 | ||
| YRKK800-4 | 3550 | 246 | 1500 | 95.7 | 0.87 | 1.8 | 15540 | ||
| YRKK800-4 | 4000 | 277 | 1500 | 95.8 | 0.87 | 1.8 | 16000 | ||
| YRKK800-4 | 4500 | 312 | 1500 | 95.8 | 0.87 | 1.8 | 16450 | ||
| YRKK710-6 | 1600 | 121 | 1000 | 94.2 | 0.81 | 1.8 | 12000 | ||
| YRKK710-6 | 1800 | 136 | 1000 | 94.3 | 0.81 | 1.8 | 12500 | ||
| YRKK710-6 | 2000 | 151 | 1000 | 94.4 | 0.81 | 1.8 | 13200 | ||
| YRKK800-6 | 2240 | 167 | 1000 | 94.5 | 0.82 | 1.8 | 13850 | ||
| YRKK800-6 | 2500 | 186 | 1000 | 94.6 | 0.82 | 1.8 | 14500 | ||
| YRKK800-6 | 2800 | 208 | 1000 | 94.7 | 0.82 | 1.8 | 15100 | ||
| YRKK900-6 | 3150 | 234 | 1000 | 94.8 | 0.82 | 1.8 | 22050 | ||
| YRKK900-6 | 3550 | 263 | 1000 | 94.9 | 0.82 | 1.8 | 23580 | ||
| YRKK900-6 | 4000 | 296 | 1000 | 95.0 | 0.82 | 1.8 | 24050 | ||
| YRKK710-8 | 1120 | 86 | 750 | 93.5 | 0.80 | 1.8 | 12600 | ||
| YRKK710-8 | 1250 | 96 | 750 | 93.6 | 0.80 | 1.8 | 13000 | ||
| YRKK710-8 | 1400 | 108 | 750 | 93.7 | 0.80 | 1.8 | 13500 | ||
| YRKK710-8 | 1600 | 123 | 750 | 93.8 | 0.80 | 1.8 | 14200 | ||
| YRKK 800-8 | 1800 | 138 | 750 | 93.9 | 0.80 | 1.8 | 16200 | ||
| YRKK800-8 | 2000 | 154 | 750 | 94.0 | 0.80 | 1.8 | 17500 | ||
| YRKK800-8 | 2240 | 170 | 750 | 94.1 | 0.81 | 1.8 | 19550 | ||
| YRKK900-8 | 2500 | 189 | 750 | 94.2 | 0.81 | 1.8 | 24200 | ||
| YRKK900-8 | 2800 | 212 | 750 | 94.3 | 0.81 | 1.8 | 27500 | ||
| YRKK1000-8 | 3150 | 238 | 750 | 94.4 | 0.81 | 1.8 | 29200 | ||
| YRKK1000-8 | 3550 | 268 | 750 | 94.5 | 0.81 | 1.8 | 29890 | ||
| YRKK1000-8 | 4000 | 301 | 750 | 94.6 | 0.81 | 1.8 | 30280 | ||
| YRKK710-10 | 1000 | 81 | 600 | 93.1 | 0.77 | 1.8 | 12250 | ||
| YRKK710-10 | 1120 | 90 | 600 | 93.2 | 0.77 | 1.8 | 12850 | ||
| YRKK710-10 | 1250 | 100 | 600 | 93.3 | 0.77 | 1.8 | 13500 | ||
| YRKK800-10 | 1400 | 111 | 600 | 93.4 | 0.78 | 1.8 | 14200 | ||
| YRKK800-10 | 1600 | 127 | 600 | 93.5 | 0.78 | 1.8 | 16000 | ||
| YRKK800-10 | 1800 | 142 | 600 | 93.6 | 0.78 | 1.8 | 21500 | ||
| YRKK900-10 | 2000 | 158 | 600 | 93.7 | 0.78 | 1.8 | 22050 | ||
| YRKK900-10 | 2240 | 177 | 600 | 93.8 | 0.78 | 1.8 | 24000 | ||
| 型号 Type | 额定功率 Rated Output (kW) | 额定电流 Rated Current (A) | 同步转速 Speed (r/min) | 效率Efficiency % | 功率因数 Power Favtor (cosΦ) | 最大转矩额定转矩 Mmax Mn | 重量 Weight (Kg) |
| YRKK1000-10 | 2500 | 200 | 600 | 93.8 | 0.77 | 1.8 | 26500 |
| YRKK1000-10 | 2800 | 224 | 600 | 93.9 | 0.77 | 1.8 | 26980 |
| YRKK710-12 | 710 | 62 | 500 | 92.2 | 0.72 | 1.8 | 12400 |
| YRKK710-12 | 800 | 70 | 500 | 92.3 | 0.72 | 1.8 | 13200 |
| YRKK710-12 | 900 | 78 | 500 | 92.4 | 0.72 | 1.8 | 13900 |
| YRKK710-12 | 1000 | 86 | 500 | 92.5 | 0.73 | 1.8 | 14500 |
| YRKK800-12 | 1120 | 96 | 500 | 92.6 | 0.73 | 1.8 | 16650 |
| YRKK800-12 | 1250 | 107 | 500 | 92.7 | 0.73 | 1.8 | 17500 |
| YRKK800-12 | 1400 | 119 | 500 | 92.8 | 0.73 | 1.8 | 18300 |
| YRKK900-12 | 1600 | 136 | 500 | 92.9 | 0.73 | 1.8 | 21500 |
| YRKK900-12 | 1800 | 151 | 500 | 93.0 | 0.74 | 1.8 | 22700 |
| YRKK900-12 | 2000 | 165 | 500 | 93.1 | 0.75 | 1.8 | 24000 |
| YRKK1000-12 | 2240 | 185 | 500 | 93.2 | 0.75 | 1.8 | 31500 |
| YRKK1000-12 | 2500 | 204 | 500 | 93.3 | 0.76 | 1.8 | 32890 |
| YRKK1000-12 | 2800 | 228 | 500 | 93.4 | 0.76 | 1.8 | 33050 |
| YRKK710-16 | 500 | 44 | 375 | 92.7 | 0.71 | 1.8 | 14500 |
| YRKK710-16 | 560 | 49 | 375 | 92.8 | 0.71 | 1.8 | 15300 |
| YRKK710-16 | 630 | 55 | 375 | 92.9 | 0.71 | 1.8 | 15850 |
| YRKK800-16 | 710 | 61 | 375 | 93.0 | 0.72 | 1.8 | 16250 |
| YRKK800-16 | 800 | 69 | 375 | 93.1 | 0.72 | 1.8 | 17500 |
| YRKK800-16 | 900 | 77 | 375 | 93.2 | 0.72 | 1.8 | 18700 |
| YRKK800-16 | 1000 | 86 | 375 | 93.3 | 0.72 | 1.8 | 19850 |
| YRKK900-16 | 1120 | 95 | 375 | 93.4 | 0.73 | 1.8 | 21450 |
| YRKK900-16 | 1250 | 106 | 375 | 93.5 | 0.73 | 1.8 | 22800 |
| YRKK900-16 | 1400 | 118 | 375 | 93.6 | 0.73 | 1.8 | 23500 |
| YRKK1000-16 | 1600 | 135 | 375 | 93.6 | 0.73 | 1.8 | 31060 |
| YRKK1000-16 | 1800 | 152 | 375 | 93.7 | 0.73 | 1.8 | 32380 |
| YRKK1000-16 | 2000 | 169 | 375 | 93.7 | 0.73 | 1.8 | 33650 |
| YRKK系列（6000伏）异步电动机技术参数（保证值） | |||||||||
| YRKK series 6000V Asynchronous Motor fechnical Data (Ensure Value) | |||||||||
| 型号 Type | 额定功率 Rated Output (kW) | 额定电流 Rated Current (A) | 同步转速 Speed (r/min) | 效率Efficiency % | 功率因数 Power Favtor (cosΦ) | 最大转矩额定转矩 Mmax Mn | 重量 Weight (Kg) | ||
| YRKK710-4 | 2240 | 257.0 | 1500 | 96.4 | 0.87 | 1.8 | 12200 | ||
| YRKK710-4 | 2500 | 286.5 | 1500 | 96.5 | 0.87 | 1.8 | 12760 | ||
| YRKK710-4 | 2800 | 320.6 | 1500 | 96.6 | 0.87 | 1.8 | 13130 | ||
| YRKK710-4 | 3150 | 360.7 | 1500 | 96.6 | 0.87 | 1.8 | 14500 | ||
| YRKK800-4 | 3550 | 408.2 | 1500 | 96.2 | 0.87 | 1.8 | 15670 | ||
| YRKK800-4 | 4000 | 459.4 | 1500 | 96.3 | 0.87 | 1.8 | 16000 | ||
| YRKK800-4 | 4500 | 515.8 | 1500 | 96.5 | 0.87 | 1.8 | 16780 | ||
| YRKK710-6 | 1600 | 196.3 | 1000 | 94.5 | 0.83 | 1.8 | 12500 | ||
| YRKK710-6 | 1800 | 220.6 | 1000 | 94.6 | 0.83 | 1.8 | 13000 | ||
| YRKK710-6 | 2000 | 244.9 | 1000 | 94.7 | 0.83 | 1.8 | 13580 | ||
| YRKK710-6 | 2240 | 273.9 | 1000 | 94.8 | 0.83 | 1.8 | 13800 | ||
| YRKK800-6 | 2500 | 305.7 | 1000 | 94.8 | 0.83 | 1.8 | 16500 | ||
| YRKK800-6 | 2800 | 342.1 | 1000 | 94.9 | 0.83 | 1.8 | 17200 | ||
| YRKK800-6 | 3150 | 384.4 | 1000 | 95.0 | 0.83 | 1.8 | 18500 | ||
| YRKK800-6 | 3550 | 432.8 | 1000 | 95.1 | 0.83 | 1.8 | 19230 | ||
| YRKK710-8 | 1400 | 176.9 | 750 | 94.0 | 0.81 | 1.8 | 12000 | ||
| YRKK710-8 | 1600 | 202.0 | 750 | 94.1 | 0.81 | 1.8 | 12500 | ||
| YRKK710-8 | 1800 | 227.0 | 750 | 94.2 | 0.81 | 1.8 | 13120 | ||
| YRKK800-8 | 2000 | 252.0 | 750 | 94.3 | 0.81 | 1.8 | 13760 | ||
| YRKK800-8 | 2240 | 281.9 | 750 | 94.4 | 0.81 | 1.8 | 15900 | ||
| YRKK800-8 | 2500 | 314.3 | 750 | 94.5 | 0.81 | 1.8 | 16670 | ||
| YRKK900-8 | 2800 | 347.3 | 750 | 94.6 | 0.82 | 1.8 | 21500 | ||
| YRKK900-8 | 3150 | 390.3 | 750 | 94.7 | 0.82 | 1.8 | 22900 | ||
| YRKK900-8 | 3550 | 439.4 | 750 | 94.8 | 0.82 | 1.8 | 23450 | ||
| YRKK710-10 | 1120 | 146.1 | 600 | 93.4 | 0.79 | 1.8 | 11580 | ||
| YRKK710-10 | 1250 | 162.8 | 600 | 93.5 | 0.79 | 1.8 | 12560 | ||
| YRKK710-10 | 1400 | 182.2 | 600 | 93.6 | 0.79 | 1.8 | 13455 | ||
| YRKK800-10 | 1600 | 208.0 | 600 | 93.7 | 0.79 | 1.8 | 14570 | ||
| YRKK800-10 | 1800 | 233.7 | 600 | 93.8 | 0.79 | 1.8 | 16500 | ||
| YRKK800-10 | 2000 | 259.4 | 600 | 93.9 | 0.79 | 1.8 | 17200 | ||
| YRKK900-10 | 2240 | 290.3 | 600 | 94.0 | 0.79 | 1.8 | 23500 | ||
| YRKK900-10 | 2500 | 323.6 | 600 | 94.1 | 0.79 | 1.8 | 24580 | ||
| YRKK900-10 | 2800 | 362.1 | 600 | 94.2 | 0.79 | 1.8 | 25000 | ||
| YRKK900-10 | 3150 | 406.9 | 600 | 94.3 | 0.79 | 1.8 | 25980 | ||
| YRKK1000-10 | 3550 | 452.3 | 600 | 94.4 | 0.80 | 1.8 | 29500 | ||
| YRKK1000-10 | 4000 | 509.1 | 600 | 94.5 | 0.80 | 1.8 | 32340 | ||
| YRKK1000-10 | 4500 | 572.2 | 600 | 94.6 | 0.80 | 1.8 | 33750 | ||
| 型号 Type | 额定功率 Rated Output (kW) | 额定电流 Rated Current (A) | 同步转速 Speed (r/min) | 效率Efficiency % | 功率因数 Power Favtor (cosΦ) | 最大转矩额定转矩 Mmax Mn | 重量 Weight (Kg) |
| YRKK710-12 | 900 | 122.8 | 500 | 92.8 | 0.76 | 1.8 | 12000 |
| YRKK710-12 | 1000 | 136.3 | 500 | 92.9 | 0.76 | 1.8 | 13100 |
| YRKK710-12 | 1120 | 152.5 | 500 | 93.0 | 0.76 | 1.8 | 13560 |
| YRKK800-12 | 1250 | 170.0 | 500 | 93.1 | 0.76 | 1.8 | 16500 |
| YRKK800-12 | 1400 | 190.2 | 500 | 93.2 | 0.76 | 1.8 | 17900 |
| YRKK800-12 | 1600 | 217.1 | 500 | 93.3 | 0.76 | 1.8 | 18560 |
| YRKK800-12 | 1800 | 244.0 | 500 | 93.4 | 0.76 | 1.8 | 18900 |
| YRKK900-12 | 2000 | 267.3 | 500 | 93.5 | 0.77 | 1.8 | 22500 |
| YRKK900-12 | 2240 | 299.1 | 500 | 93.6 | 0.77 | 1.8 | 23120 |
| YRKK900-12 | 2500 | 333.4 | 500 | 93.7 | 0.77 | 1.8 | 24600 |
| YRKK1000-12 | 2800 | 373.0 | 500 | 93.8 | 0.77 | 1.8 | 30150 |
| YRKK1000-12 | 3150 | 419.2 | 500 | 93.9 | 0.77 | 1.8 | 31780 |
| YRKK1000-12 | 3550 | 472.0 | 500 | 94.0 | 0.77 | 1.8 | 32135 |
| YRKK1000-12 | 4000 | 531.2 | 500 | 94.1 | 0.77 | 1.8 | 33475 |
| YRKK710-16 | 500 | 73.0 | 375 | 91.5 | 0.72 | 1.8 | 11500 |
| YRKK710-16 | 560 | 81.7 | 375 | 91.6 | 0.72 | 1.8 | 12000 |
| YRKK710-16 | 630 | 91.8 | 375 | 91.7 | 0.72 | 1.8 | 12560 |
| YRKK710-16 | 710 | 103.4 | 375 | 91.8 | 0.72 | 1.8 | 13120 |
| YRKK800-16 | 800 | 116.3 | 375 | 91.9 | 0.72 | 1.8 | 16560 |
| YRKK800-16 | 900 | 130.7 | 375 | 92.0 | 0.72 | 1.8 | 16660 |
| YRKK800-16 | 1000 | 145.1 | 375 | 92.1 | 0.72 | 1.8 | 17050 |
| YRKK800-16 | 1120 | 162.4 | 375 | 92.2 | 0.72 | 1.8 | 18230 |
| YRKK900-16 | 1250 | 181.0 | 375 | 92.3 | 0.72 | 1.8 | 24240 |
| YRKK900-16 | 1400 | 202.5 | 375 | 92.4 | 0.72 | 1.8 | 25030 |
| YRKK900-16 | 1600 | 231.2 | 375 | 92.5 | 0.72 | 1.8 | 26980 |
| YRKK1000-16 | 1800 | 259.8 | 375 | 92.6 | 0.72 | 1.8 | 30225 |
| YRKK1000-16 | 2000 | 288.3 | 375 | 92.7 | 0.72 | 1.8 | 31590 |
| YRKK1000-16 | 2240 | 322.6 | 375 | 92.8 | 0.72 | 1.8 | 33590 |
| YRKK系列（10000伏）异步电动机技术参数（保证值） | |||||||||
| YRKKseries 10000V Asynchronous Motor fechnical Data (Ensure Value) | |||||||||
| 型号 Type | 额定功率 Rated Output (kW) | 额定电流 Rated Current (A) | 同步转速 Speed (r/min) | 效率Efficiency % | 功率因数 Power Favtor (cosΦ) | 最大转矩额定转矩 Mmax Mn | 重量 Weight (Kg) | ||
| YRKK710-4 | 2000 | 139 | 1500 | 95.5 | 0.87 | 1.8 | 13000 | ||
| YRKK710-4 | 2240 | 156 | 1500 | 95.5 | 0.87 | 1.8 | 13500 | ||
| YRKK710-4 | 2500 | 174 | 1500 | 95.6 | 0.87 | 1.8 | 14100 | ||
| YRKK710-4 | 2800 | 194 | 1500 | 95.6 | 0.87 | 1.8 | 14650 | ||
| YRKK800-4 | 3150 | 218 | 1500 | 95.7 | 0.87 | 1.8 | 15030 | ||
| YRKK800-4 | 3550 | 246 | 1500 | 95.7 | 0.87 | 1.8 | 15540 | ||
| YRKK800-4 | 4000 | 277 | 1500 | 95.8 | 0.87 | 1.8 | 16000 | ||
| YRKK800-4 | 4500 | 312 | 1500 | 95.8 | 0.87 | 1.8 | 16450 | ||
| YRKK710-6 | 1600 | 121 | 1000 | 94.2 | 0.81 | 1.8 | 12000 | ||
| YRKK710-6 | 1800 | 136 | 1000 | 94.3 | 0.81 | 1.8 | 12500 | ||
| YRKK710-6 | 2000 | 151 | 1000 | 94.4 | 0.81 | 1.8 | 13200 | ||
| YRKK800-6 | 2240 | 167 | 1000 | 94.5 | 0.82 | 1.8 | 13850 | ||
| YRKK800-6 | 2500 | 186 | 1000 | 94.6 | 0.82 | 1.8 | 14500 | ||
| YRKK800-6 | 2800 | 208 | 1000 | 94.7 | 0.82 | 1.8 | 15100 | ||
| YRKK900-6 | 3150 | 234 | 1000 | 94.8 | 0.82 | 1.8 | 22050 | ||
| YRKK900-6 | 3550 | 263 | 1000 | 94.9 | 0.82 | 1.8 | 23580 | ||
| YRKK900-6 | 4000 | 296 | 1000 | 95.0 | 0.82 | 1.8 | 24050 | ||
| YRKK710-8 | 1120 | 86 | 750 | 93.5 | 0.80 | 1.8 | 12600 | ||
| YRKK710-8 | 1250 | 96 | 750 | 93.6 | 0.80 | 1.8 | 13000 | ||
| YRKK710-8 | 1400 | 108 | 750 | 93.7 | 0.80 | 1.8 | 13500 | ||
| YRKK710-8 | 1600 | 123 | 750 | 93.8 | 0.80 | 1.8 | 14200 | ||
| YRKK 800-8 | 1800 | 138 | 750 | 93.9 | 0.80 | 1.8 | 16200 | ||
| YRKK800-8 | 2000 | 154 | 750 | 94.0 | 0.80 | 1.8 | 17500 | ||
| YRKK800-8 | 2240 | 170 | 750 | 94.1 | 0.81 | 1.8 | 19550 | ||
| YRKK900-8 | 2500 | 189 | 750 | 94.2 | 0.81 | 1.8 | 24200 | ||
| YRKK900-8 | 2800 | 212 | 750 | 94.3 | 0.81 | 1.8 | 27500 | ||
| YRKK1000-8 | 3150 | 238 | 750 | 94.4 | 0.81 | 1.8 | 29200 | ||
| YRKK1000-8 | 3550 | 268 | 750 | 94.5 | 0.81 | 1.8 | 29890 | ||
| YRKK1000-8 | 4000 | 301 | 750 | 94.6 | 0.81 | 1.8 | 30280 | ||
| YRKK710-10 | 1000 | 81 | 600 | 93.1 | 0.77 | 1.8 | 12250 | ||
| YRKK710-10 | 1120 | 90 | 600 | 93.2 | 0.77 | 1.8 | 12850 | ||
| YRKK710-10 | 1250 | 100 | 600 | 93.3 | 0.77 | 1.8 | 13500 | ||
| YRKK800-10 | 1400 | 111 | 600 | 93.4 | 0.78 | 1.8 | 14200 | ||
| YRKK800-10 | 1600 | 127 | 600 | 93.5 | 0.78 | 1.8 | 16000 | ||
| YRKK800-10 | 1800 | 142 | 600 | 93.6 | 0.78 | 1.8 | 21500 | ||
| YRKK900-10 | 2000 | 158 | 600 | 93.7 | 0.78 | 1.8 | 22050 | ||
| YRKK900-10 | 2240 | 177 | 600 | 93.8 | 0.78 | 1.8 | 24000 | ||
| 型号 Type | 额定功率 Rated Output (kW) | 额定电流 Rated Current (A) | 同步转速 Speed (r/min) | 效率Efficiency % | 功率因数 Power Favtor (cosΦ) | 最大转矩额定转矩 Mmax Mn | 重量 Weight (Kg) |
| YRKK1000-10 | 2500 | 200 | 600 | 93.8 | 0.77 | 1.8 | 26500 |
| YRKK1000-10 | 2800 | 224 | 600 | 93.9 | 0.77 | 1.8 | 26980 |
| YRKK710-12 | 710 | 62 | 500 | 92.2 | 0.72 | 1.8 | 12400 |
| YRKK710-12 | 800 | 70 | 500 | 92.3 | 0.72 | 1.8 | 13200 |
| YRKK710-12 | 900 | 78 | 500 | 92.4 | 0.72 | 1.8 | 13900 |
| YRKK710-12 | 1000 | 86 | 500 | 92.5 | 0.73 | 1.8 | 14500 |
| YRKK800-12 | 1120 | 96 | 500 | 92.6 | 0.73 | 1.8 | 16650 |
| YRKK800-12 | 1250 | 107 | 500 | 92.7 | 0.73 | 1.8 | 17500 |
| YRKK800-12 | 1400 | 119 | 500 | 92.8 | 0.73 | 1.8 | 18300 |
| YRKK900-12 | 1600 | 136 | 500 | 92.9 | 0.73 | 1.8 | 21500 |
| YRKK900-12 | 1800 | 151 | 500 | 93.0 | 0.74 | 1.8 | 22700 |
| YRKK900-12 | 2000 | 165 | 500 | 93.1 | 0.75 | 1.8 | 24000 |
| YRKK1000-12 | 2240 | 185 | 500 | 93.2 | 0.75 | 1.8 | 31500 |
| YRKK1000-12 | 2500 | 204 | 500 | 93.3 | 0.76 | 1.8 | 32890 |
| YRKK1000-12 | 2800 | 228 | 500 | 93.4 | 0.76 | 1.8 | 33050 |
| YRKK710-16 | 500 | 44 | 375 | 92.7 | 0.71 | 1.8 | 14500 |
| YRKK710-16 | 560 | 49 | 375 | 92.8 | 0.71 | 1.8 | 15300 |
| YRKK710-16 | 630 | 55 | 375 | 92.9 | 0.71 | 1.8 | 15850 |
| YRKK800-16 | 710 | 61 | 375 | 93.0 | 0.72 | 1.8 | 16250 |
| YRKK800-16 | 800 | 69 | 375 | 93.1 | 0.72 | 1.8 | 17500 |
| YRKK800-16 | 900 | 77 | 375 | 93.2 | 0.72 | 1.8 | 18700 |
| YRKK800-16 | 1000 | 86 | 375 | 93.3 | 0.72 | 1.8 | 19850 |
| YRKK900-16 | 1120 | 95 | 375 | 93.4 | 0.73 | 1.8 | 21450 |
| YRKK900-16 | 1250 | 106 | 375 | 93.5 | 0.73 | 1.8 | 22800 |
| YRKK900-16 | 1400 | 118 | 375 | 93.6 | 0.73 | 1.8 | 23500 |
| YRKK1000-16 | 1600 | 135 | 375 | 93.6 | 0.73 | 1.8 | 31060 |
| YRKK1000-16 | 1800 | 152 | 375 | 93.7 | 0.73 | 1.8 | 32380 |
| YRKK1000-16 | 2000 | 169 | 375 | 93.7 | 0.73 | 1.8 | 33650 |
