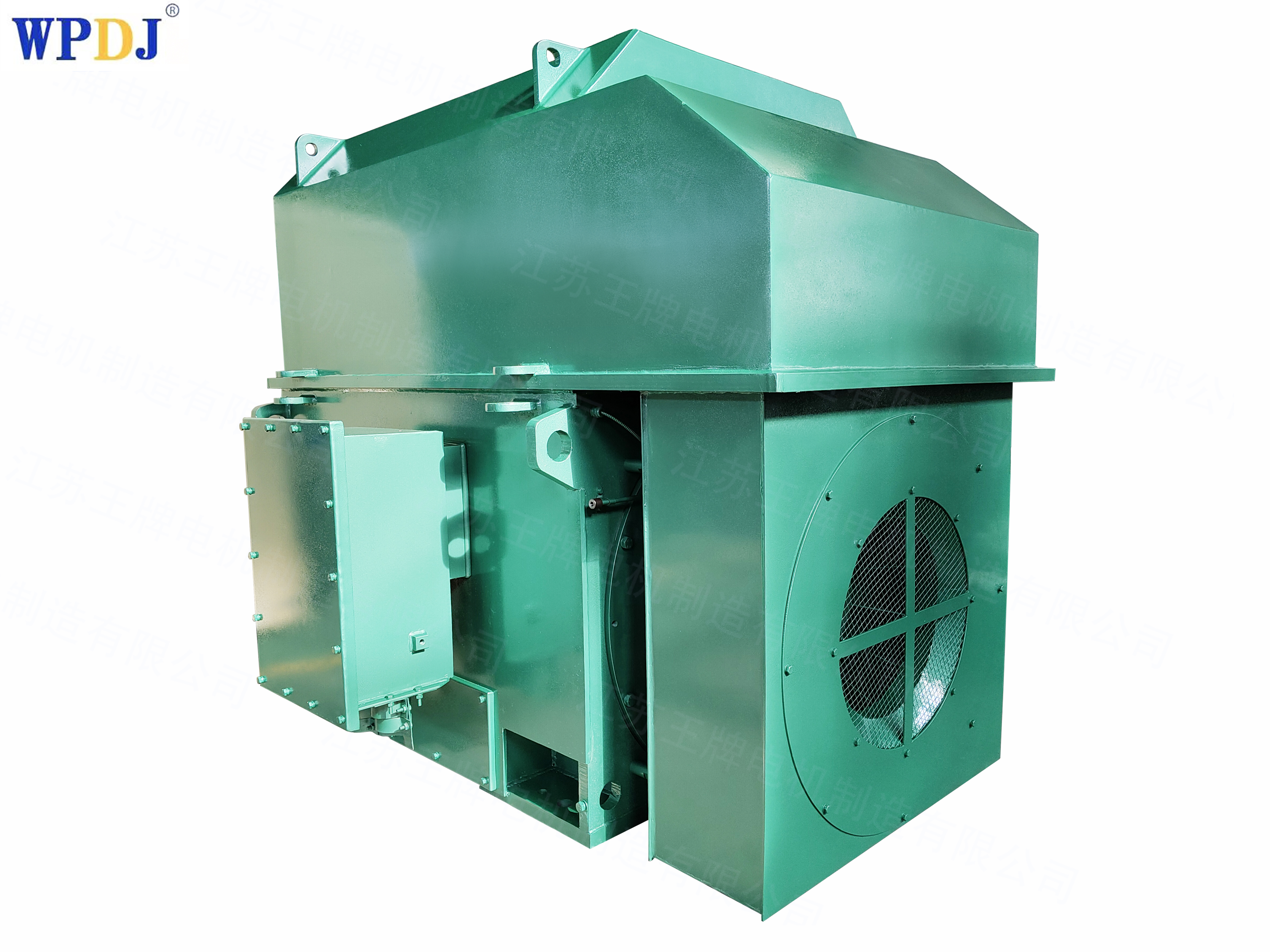

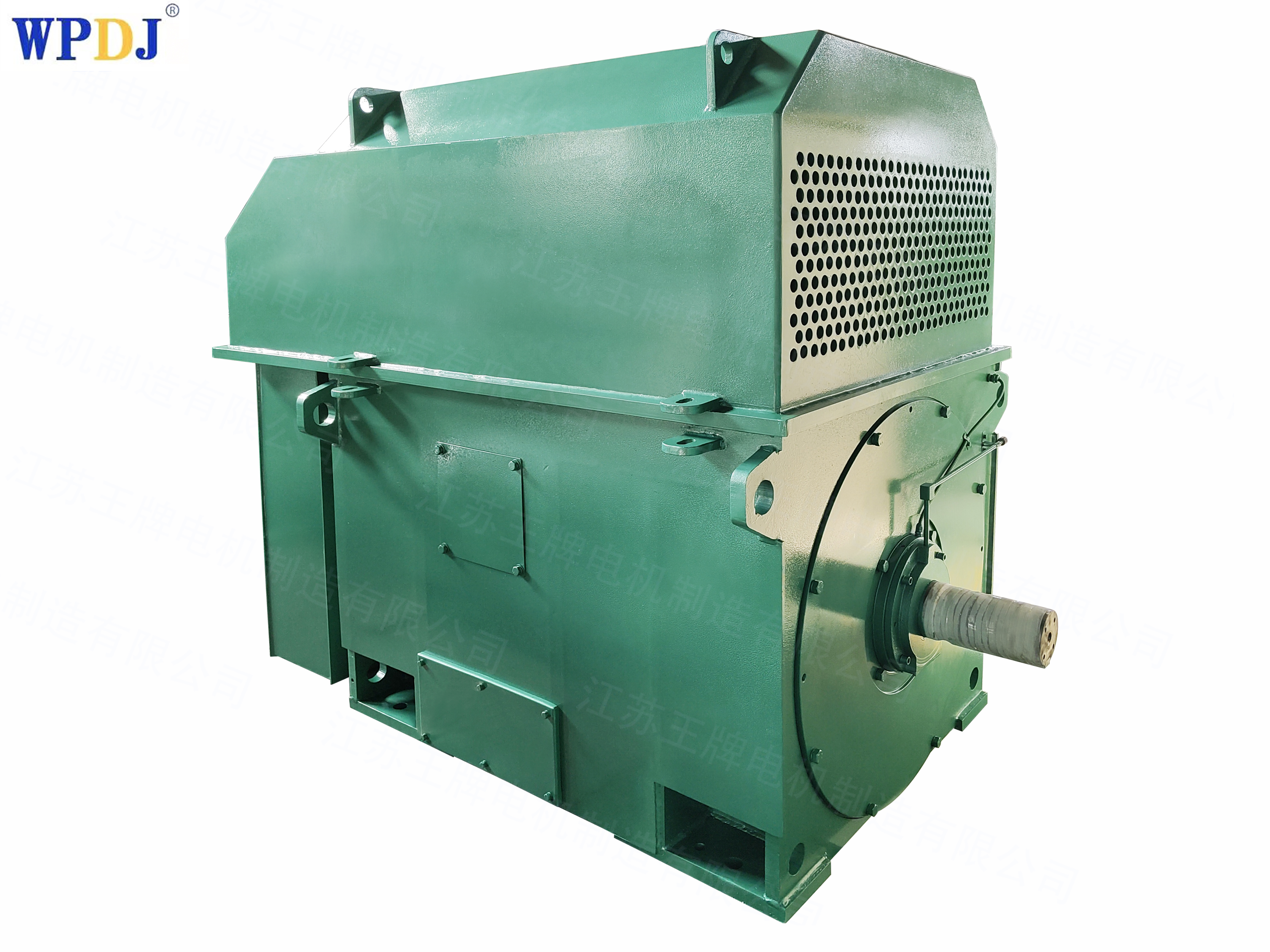

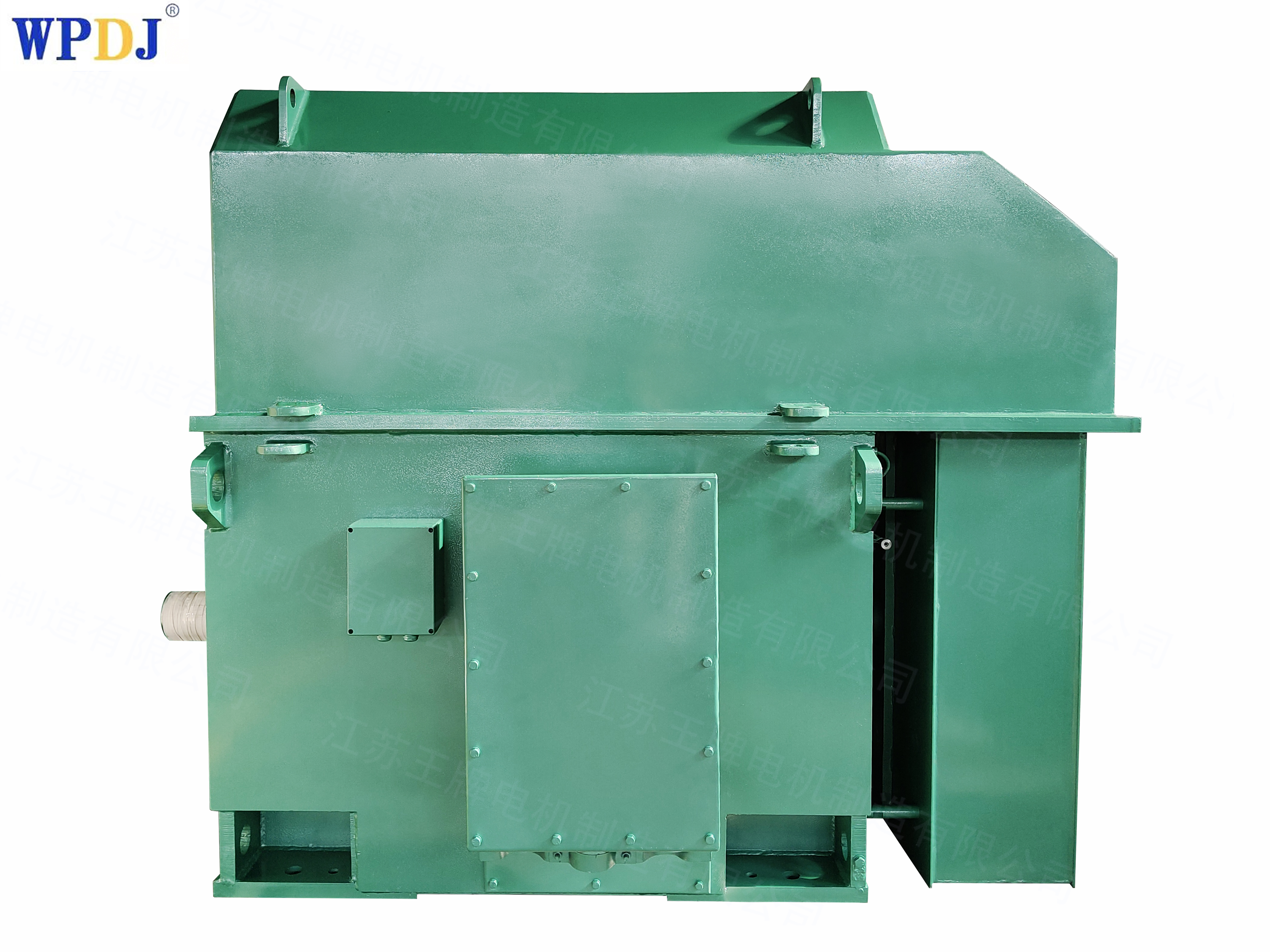

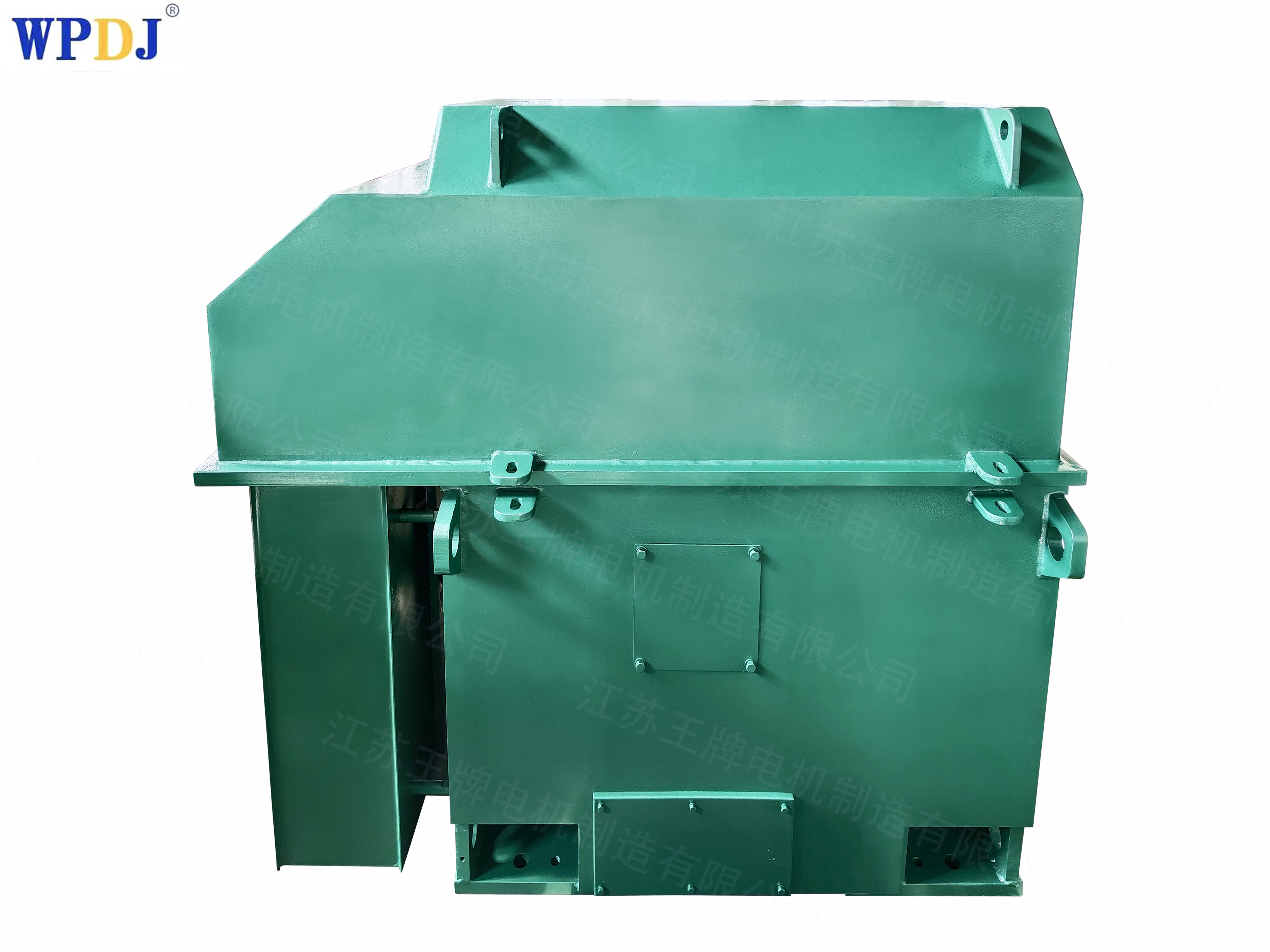

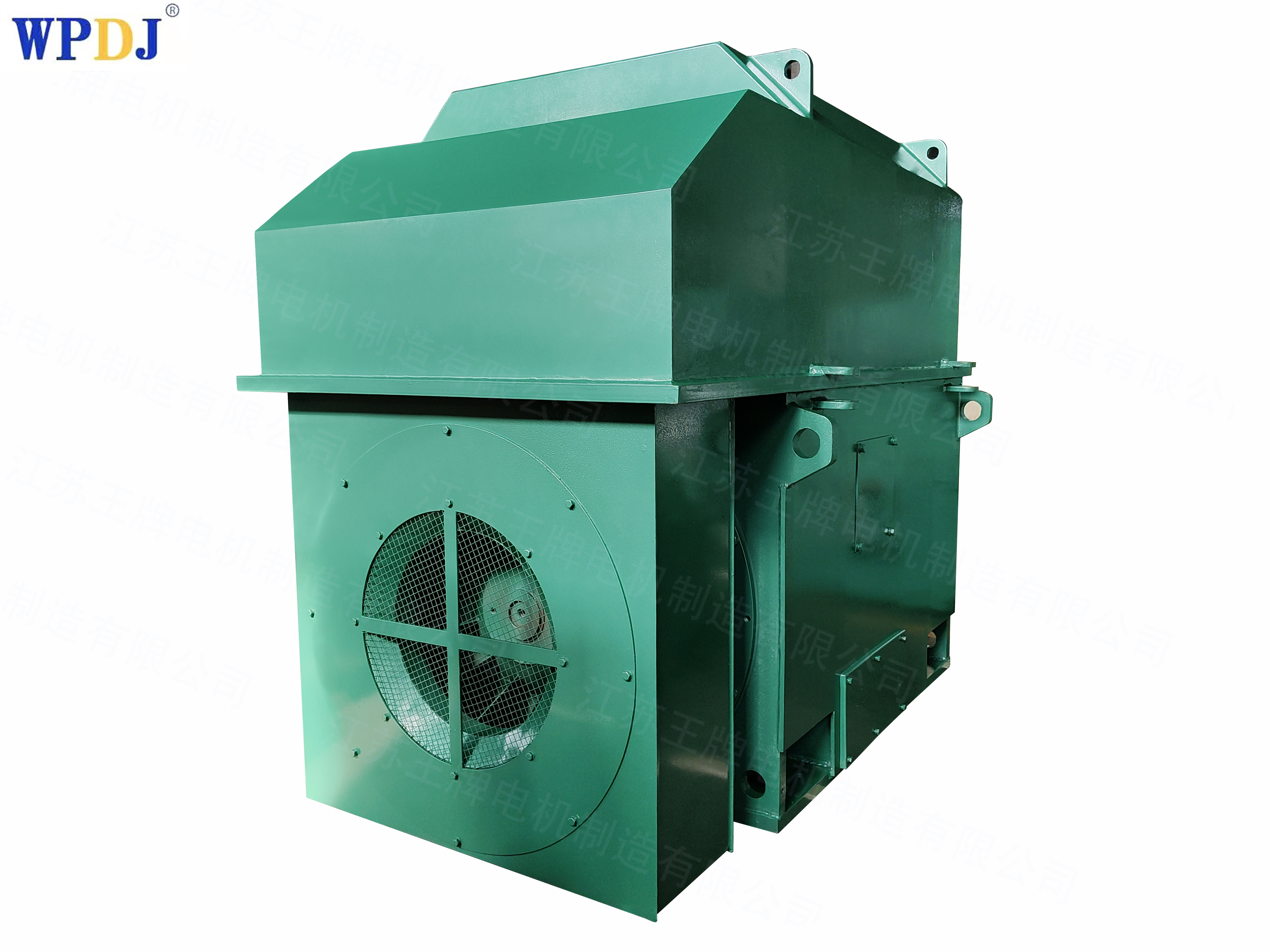

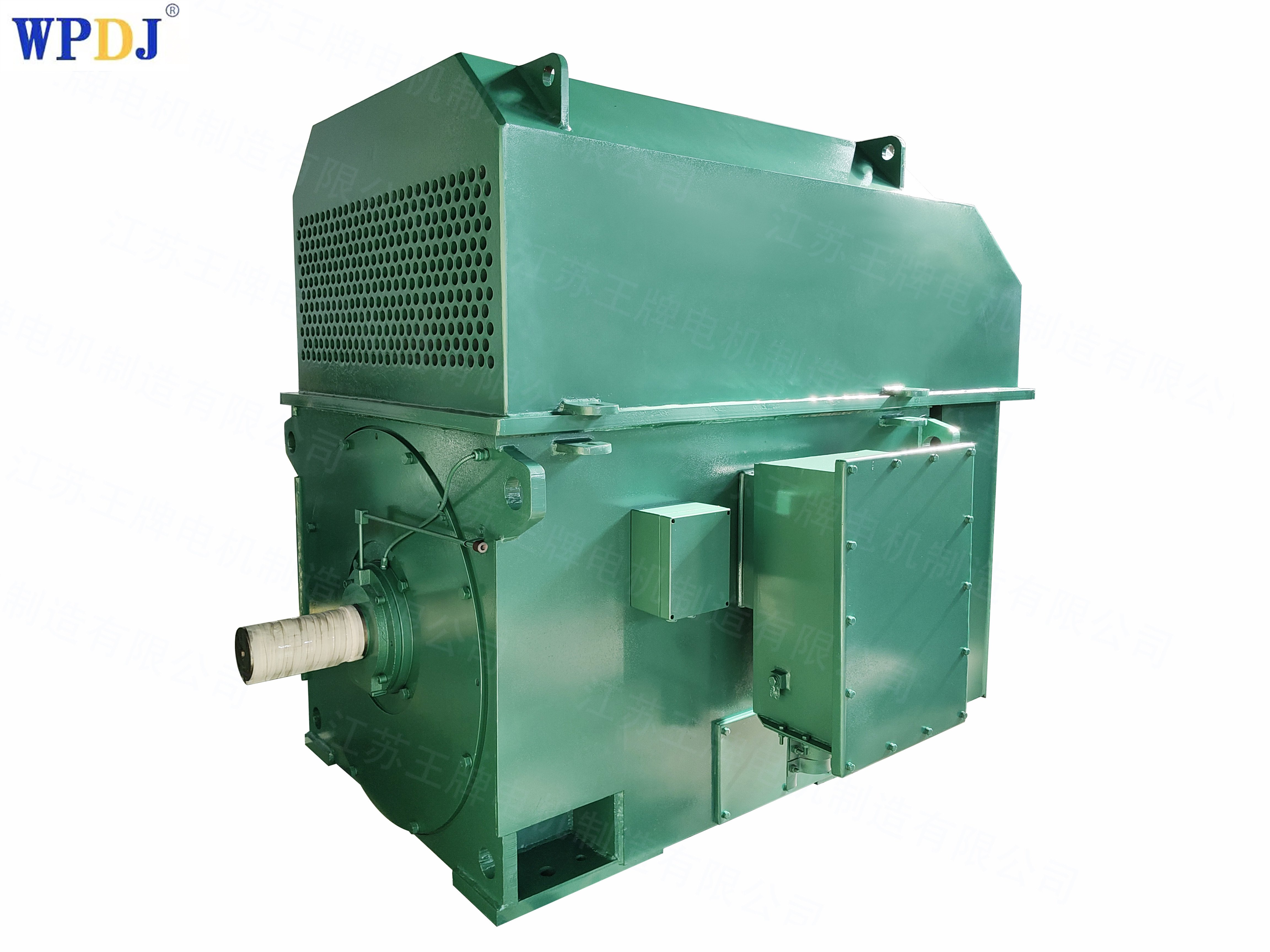

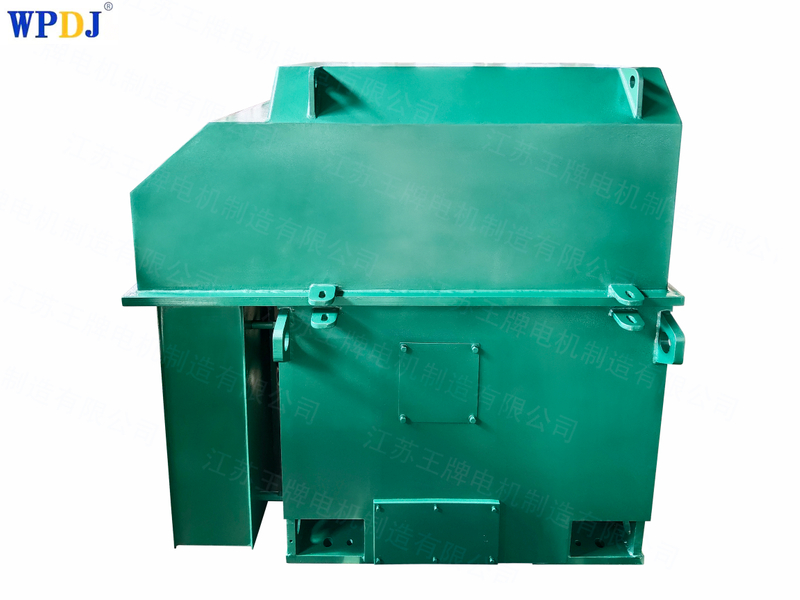

YKK Series squirrel cage high voltage asynchronous Ac Motor

Power: 220kw - 2500KW
Voltage: 3KV, 6KV, 10KV
Speed: 500RPM/590RPM/740RPM/990RPM/1500RPM/3000RPM
Protection Degree: IP44/IP54
Cooling method: IC611
Insulation Class: F
Duty: S1
Package: Export Wooden Package

Availability:

Quantity:



Inquire Add to Basket

Model:
YKK series high voltage motor
Brand:
WPDJ

Motor specification

YKK series squirrel cage high voltage asynchronous motor（6000V）

型号 Type	额定功率RatedOutput(kW)	定子电流RatedCurrent(A)	转速Speed(r/min)	效率Efficiency %	功率因数PowerFavtor (cosΦ)	最大转矩额定转矩 Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机 Jmotor (Kgm2)	转动惯量 J_负載 Jload (Kgm2)	重量Weight(Kg)
YKK3551-2	220	26.9	2973	92.5	0.85	1.8	0.6	7.0	2.7	22	2250
YKK3552-2	250	30.6		92.6					3.0	24	2300
YKK3553-2	280	34.2		92.8					3.4	26	2350
YKK3554-2	315	38.3		93.1					3.6	27	2400
YKK4002-2	355	42.5	2977	93.4	0.86				5.3	30	2700
YKK4003-2	400	47.8		93.7					5.7	32	2780
YKK4004-2	450	53.6		94.0					6.5	34	2900
YKK4005-2	500	59.4		94.2					6.8	35	3000
YKK4502-2	560	66.4		94.4	0.87				9.4	40	4000
YKK4503-2	630	73.7		94.6					10.8	44	4300
YKK4504-2	710	82.9		94.7					11.8	46	4600
YKK4505-2	800	93.3		94.8					12.4	48	4900
YKK5001-2	900	104.8	2981	95.0	0.87				17.2	73.4	5200
YKK5002-2	1000	116.3		95.1					19.1	85	5440
YKK5003-2	1120	130.1		95.2					21.1	93	5650
YKK5004-2	1250	145.1		95.3	0.88				23.0	101	5880
YKK5601-2	1400	160.5		95.4					39.8	106	6800
YKK5602-2	1600	183.1		95.5					42.4	107	6900
YKK5603-3	1800	205.9		95.6					46.4	108	7160
YKK6301-2	2000	228.5	2982	95.7	0.88				47.4	110	9450
YKK6302-2	2240	255.7		95.8					51.7	114	9850
YKK6303-2	2500	285.1		95.9					57.1	120	10250
YKK3551-4	185	22.6	1482	92.8	0.85		0.7	6.5	3.0	68	2500
YKK3552-4	200	24.4		92.9					3.4	78	2550
YKK3553-4	220	26.8		93.0					3.8	88	2600
YKK3554-4	250	30.4		93.1					4.2	97	2650
YKK4002-4	282	33.6		93.2	0.86				5.8	108	2740
YKK4003-4	315	37.8		93.3					6.0	120	2800
YKK4004-4	355	42.5		93.5					6.2	133	2870
YKK4005-4	400	47.8		93.7					6.5	147	2990
YKK4006-4	450	53.6		93.9					7.0	161	3060

型号 Type	额定功率Rated Output (kW)	定子电流Rated Current (A)	转速 Speed (r/min)	效率Efficiency %	功率因数Power Favtor (cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机Jmotor(Kgm2)	转动惯量 J_负载Jload (Kgm2)	重量Weight (Kg)
YKK4502-4	500	59.5	1485	94.0	0.86	1.8	0.7	6.5	10.0	178	4400
YKK4503-4	560	66.5		94.2					11.0	197	4560
YKK4504-4	630	74.7		94.4					12.0	218	4720
YKK4505-4	710	84.0	1486	94.6	0.87				13.0	241	4890
YKK5001-4	800	93.3		94.8					22.0	266	5640
YKK5002-4	900	104.9		94.9					24.0	290	5660
YKK5003-4	1000	116.4	1487	95.0	0.87				26.0	318	5850
YKK5004-4	1120	130.3		95.1	0.87				30.0	347	6030
YKK5601-4	1250	143.6		95.2	0.88		0.6	6.5	51.0	379	7800
YKK5602-4	1400	160.6		95.3					57.0	421	8050
YKK5603-4	1600	183.4		95.4					60.0	460	8300
YKK6301-4	1800	206.1		95.5					96.0	498	10400
YKK6302-4	2000	228.8		95.6					102.0	540	10800
YKK6303-4	2240	255.9		95.7					112.0	584	11300
YKK4001-6	185	23.5	988	92.4	0.82		0.7	6.0	8.0	193	2610
YKK4002-6	200	25.3		92.6					8.7	210	2665
YKK4003-6	220	27.8		92.8					9.0	236	2700
YKK4004-6	250	31.5		93.0					10.0	262	2750
YKK4005-6	280	35.2		93.3					10.8	291	2895
YKK4006-6	315	39.5		93.5					11.0	324	3020
YKK4502-6	355	43.9		93.7	0.83				14.0	361	4380
YKK4503-6	400	49.4		93.8					15.0	401	4540
YKK4504-6	450	55.4		94.1					16.0	440	4690
YKK4505-6	500	61.5		94.3					17.0	687	4810
YKK5001-6	560	68.0	990	94.4	0.84				27.0	540	5355
YKK5002-6	630	76.4		94.5					32.5	599	5440
YKK5003-6	710	85.8		94.8					34.0	665	5700
YKK5004-6	800	96.6		94.9					40.0	736	5880
YKK5601-6	900	107.2	991	95.0	0.85			6.5	64.0	805	7500
YKK5602-6	1000	119.0		95.1					70.0	886	7850
YKK5603-6	1120	133.2		95.2					75.0	927	8100
YKK6301-6	1250	146.8		95.3	0.86				139	1068	1075
YKK6302-6	1400	164.2		95.4					147	1192	1115
YKK6303-6	1600	187.5		95.5					162	1312	1150

型号 Type	额定功率Rated Output (kW)	定子电流Rated Current (A)	转速 Speed (r/min)	效率Efficiency %	功率因数Power Favtor (cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负载Jload (Kgm2)	重量 Weight (Kg)
YKK4004-8	185	24.7	740	92.5	0.78	1.8	0.8	5.5	11.0	406	2785
YKK4005-8	200	26.6		92.7					12.0	450	2840
YKK4006-8	220	29.2		92.9					13.0	502	2910
YKK4502-8	250	32.7	742	93.0	0.79				16.0	558	4560
YKK4503-8	280	36.6		93.2					17.0	622	4650
YKK4504-8	315	41.1		93.4					18.0	693	4740
YKK4505-8	355	46.2		93.5					19.0	772	4840
YKK5001-8	400	51.3	743	93.7	0.80				30.0	853	5110
YKK5002-8	450	57.7		93.8					34.0	941	5280
YKK5003-8	500	63.8		94.2					38.0	1044	5430
YKK5004-8	560	71.4		94.4					42.0	1160	5660
YKK5601-8	630	78.2		94.5	0.82		0.7	6.0	79.0	1221	7500
YKK5602-8	710	88.1		94.6					87.0	1357	7750
YKK5603-8	800	99.1		94.7					90.0	1505	8000
YKK6301-8	900	108.8	744	94.8	0.84				129	1650	10400
YKK6302-8	1000	120.7		94.9					137	1820	10800
YKK6303-8	1120	135.1		95.0					151	2001	11200
YKK6304-8	1250	150.6		95.1					160	2204	11600
YKK4501-10	185	25.9	594	91.7	0.75		0.8	5.5	19.0	698	4850
YKK4502-10	200	27.9		91.9					20.0	775	4670
YKK4503-10	220	30.6		92.1					22.0	865	4760
YKK4501-10	250	34.8		92.3					24.0	902	4860
YKK4505-10	280	38.8		92.5					26.0	1072	4960
YKK5001-10	315	43.0	593	92.8	0.76				36.0	1196	5220
YKK5002-10	355	48.3		93.0					38.0	1332	5375
YKK5003-10	400	54.3		93.3					42.0	1471	5535
YKK5001-10	450	61.0		93.4					45.0	1627	5760
YKK5601-10	500	65.9	594	93.6	0.78		0.7	6.0	67.0	1710	7470
YKK5602-10	560	73.7	594	93.7	0.78		0.7	6.0	74.0	1902	7690

型号 Type	额定功率Rated Output (kW)	定子电流Rated Current (A)	转速 Speed (r/min)	效率Efficiency%	功率因数Power Favtor (cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负载Jload (Kgm2)	重量 Weight (Kg)
YKK5603-10	630	82.9	594	93.8	0.78	1.8	0.7	6.0	79.0	2116	7920
YKK5604-10	710	93.2		94.0	0.78				88.0	2355	8140
YKK6301-10	800	102.1		94.2	0.8				132	2615	10600
YKK6302-10	900	114.8		94.3					140	2800	11000
YKK6303-10	1000	127.4		94.4					152	3170	11400
YKK6304-10	1120	142.4		94.6					167	3489	11800
YKK4504-12	185	27.7	494	91.8	0.7	1.8	0.8	5.5	24.0	1487	4770
YKK4505-12	200	29.9		92.0	0.7				26.0	1206	4950
YKK5001-12	220	31.9		92.2	0.72				40.0	1347	5090
YKK5002-12	250	36.1		92.5					42.0	1499	5340
YKK5003-12	280	40.4		92.7					43.0	1672	5410
YKK5004-12	315	45.4		92.8					47.0	1865	5660
YKK5601-12	355	49.6	495	93.0	0.74		0.7	6.0	87.0	1967	7440
YKK5602-12	400	55.7		93.3					96.0	2190	7650
YKK5603-12	450	62.7		93.4					103	2411	7860
YKK5604-12	500	69.4		93.7					114	2673	8070
YKK6301-12	560	75.6		93.8	0.76				179	2974	10600
YKK6302-12	630	84.9		93.9					191	3312	11000
YKK6303-12	710	95.6		94.0					208	3688	11400
YKK6304-12	800	107.5		94.2					272	4098	11800

YKK series squirrel cage high voltage asynchronous motor（10000V）

型号 Type	额定功率 Rated Output (kW)	定子电流 Rated Current (A)	转速 Speed (r/min)	效率Efficiency %	功率因数 Power Favtor (cosΦ)	最大转矩额定转矩 Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机 Jmotor (Kgm2)	转动惯量 J_负载 Jload (Kgm2)	重量 Weight (Kg)
YKK4501-2	220	16.2	2972	92.4	0.85	1.8	0.6	7.0	5.1	30.0	3650
YKK4502-2	250	18.3	2972	92.6					5.6	31.1	3740
YKK4503-2	280	20.5	2973	92.8					6.1	31.8	3800
YKK4504-2	315	23.0	2973	93.0					6.6	32.5	3880
YKK4505-2	355	25.5	2975	93.3	0.86				7.2	34.3	3945
YKK4506-2	400	28.7		93.7					8.2	35.2	4090
YKK4507-2	450	32.1		94.0					8.7	37.2	4185
YKK5001-2	500	35.6	2975	94.2	0.86				14.7	55.4	4290
YKK5002-2	560	39.8	2975	94.4	0.86				15.7	59.1	4380
YKK5003-2	630	44.2	2976	94.6	0.87				17.7	63.2	4575
YKK5004-2	710	49.8	2978	94.7					18.7	68.8	4700
YKK5005-2	800	56.0		94.8					19.7	75.5	4780
YKK5601-2	900	63.0		94.9					31.8	78.4	7750
YKK5602-2	1000	69.9	2979	95.0					35.7	90	8000
YKK5603-2	1120	78.1	2979	95.2					39.8	97	8250
YKK6301-2	1250	87.0	2980	95.3	0.87				42.7	98	9300
YKK6302-2	1400	97.4		95.4	0.87				46.0	99	9700
YKK6303-2	1600	110.0		95.5	0.88				53.0	100	10100
YKK4501-4	220	16.6	1483	92.4	0.83		0.7	7.0	11.4	78	3700
YKK4502-4	250	18.8		92.6					12.6	87	3760
YKK4503-4	280	21.0		92.8					13.1	97	3860
YKK4504-4	315	23.6		93.0					13.5	107	3890
YKK4505-4	355	25.5		93.3	0.86				14.0	119	4200
YKK4506-4	400	28.7		93.5					14.4	132	4300
YKK4507-4	450	32.2		93.9					15.3	147	4490
YKK5001-4	500	35.7	1484	94.0					25.0	165	5640
YKK5002-4	560	40.0		94.2					26.0	182	5660
YKK5003-4	630	44.8		94.4					28.0	201	5850
YKK5004-4	710	50.4		94.6					30.0	220	6030
YKK5005-4	800	56.0		94.8					32.0	242	6060

型号Type	额定功率 Rated Output (kW)	定子电流 Rated Current (A)	转速 Speed (r/min)	效率Efficiency%	功率因数Power Favtor (cosΦ)	最大转矩额定转矩 Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机 Jmotor (Kgm2)	转动惯量 J_负载 Jload (Kgm2)	重量 Weight (Kg)
YKK5601-4	900	63.0	1485	94.9	0.87	1.8	0.7	7.0	44.0	270	7800
YKK5602-4	1000	70.0		95.0					47.0	292	8050
YKK5603-4	1120	78.2		95.1					50.0	320	8300
YKK6301-4	1250	86.1	1485	95.2	0.88		0.6		90.0	350	9900
YKK6302-4	1400	96.4		95.3					95.0	382	10300
YKK6303-4	1600	110.0		95.4					101.0	423	10400
YKK4504-6	220	17.3	988	92.0	0.80		0.7	6.0	15.5	210	4090
YKK4505-6	250	19.6		92.2					16.3	235	4210
YKK4506-6	280	21.9		92.5					17.4	260	4420
YKK4507-6	315	23.9	989	92.8	0.82				18.4	290	4560
YKK5001-6	355	26.6		93.1	0.83				27.0	326	5360
YKK5002-6	400	29.8		93.3					29.0	362	5440
YKK5003-6	450	33.5		93.5					31.0	400	5700
YKK5004-6	500	37.1		93.9					33.0	440	5880
YKK5005-6	560	40.9		94.1					35.0	485	6110
YKK5601-6	630	45.9	990	94.4	0.84				50.0	540	7500
YKK5602-6	710	51.6		94.6					60.0	599	7850
YKK5603-6	800	58.1		94.7					63.0	665	8100
YKK5604-6	900	64.4		94.9					67.0	736	8300
YKK6301-6	1000	71.4	991	95.1	0.85		0.6	6.0	121.0	805	10750
YKK6302-6	1120	79.9		95.2					128.0	886	11150
YKK6303-6	1250	88.1		95.3					135.0	970	11500
YKK5001-8	220	18.2	740	92.0	0.76		0.7	6.0	28.0	423	5280
YKK5002-8	250	20.6		92.2					30.0	476	5430
YKK5003-8	280	23.0		92.5					32.0	530	5660
YKK5004-8	315	25.5		92.8	0.77				34.0	588	5700
YKK5005-8	355	28.6		93.1	0.77				36.0	656	5760
YKK5006-8	400	31.8		93.2	0.78				38.0	730	5820
YKK5601-8	450	35.7	742	93.4	0.78				63.0	810	7850

型号Type	额定功率 Rated Output (kW)	定子电流 Rated Current (A)	转速 Speed (r/min)	效率Efficiency%	功率因数Power Favtor (cosΦ)	最大转矩额定转矩 Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机 Jmotor (Kgm2)	转动惯量 J_负载 Jload (Kgm2)	重量 Weight (Kg)
YKK5602-8	500	39.0	742	93.8	0.79	1.8	0.7	6.0	67.0	890	8100
YKK5603-8	560	43.6		93.9	0.79				70.0	988	8300
YKK5604-8	630	47.0		94.4	0.82				74.0	1098	8500
YKK6301-8	710	52.8	743	94.6	0.82				145.0	12210	10400
YKK6302-8	800	59.5		94.7					151.0	1357	10800
YKK6303-8	900	66.8		94.8					166.0	1505	11200
YKK5004-10	220	19.2	594	91.9	0.72			5.5	38.0	698	5760
YKK5005-10	250	21.8		92.1	0.72				39.3	775	5930
YKK5006-10	280	23.7		92.4	0.74				40.0	865	6120
YKK5601-10	315	26.5		92.6				6.0	78.0	1014	7350
YKK5602-10	355	29.4		92.8	0.75				83.0	1131	7500
YKK5603-10	400	33.1		93.0					87.0	1261	7850
YKK5604-10	450	36.7		93.2	0.76				92.0	1403	8100
YKK5605-10	500	40.1		93.4	0.77				97.0	1544	8300
YKK6301-10	560	44.3	594	93.5	0.78				153.0	1710	10600
YKK6302-10	630	49.8		93.7					162.0	1902	11000
YKK6303-10	710	56.0		93.9					169.0	2116	11400
YKK6304-10	800	61.2		94.3	0.80				178.0	2355	11800
YKK5601-12	220	19.2	495	91.8	0.72				88.0	1135	7350
YKK5602-12	250	21.8		92.0					97.0	1210	7500
YKK5603-12	280	24.4		92.1					100	1418	7850
YKK5604-12	315	27.4		92.3					108	1580	8100
YKK5605-12	355	30.4		92.5	0.73				115	1763	8300
YKK6301-12	400	34.1		92.7					139	1967	10600
YKK6302-12	450	38.3		92.9					156	2190	11000
YKK6303-12	500	42.4		93.2					172	2411	11400
YKK6304-12	560	46.7		93.5					180	2672	11800
