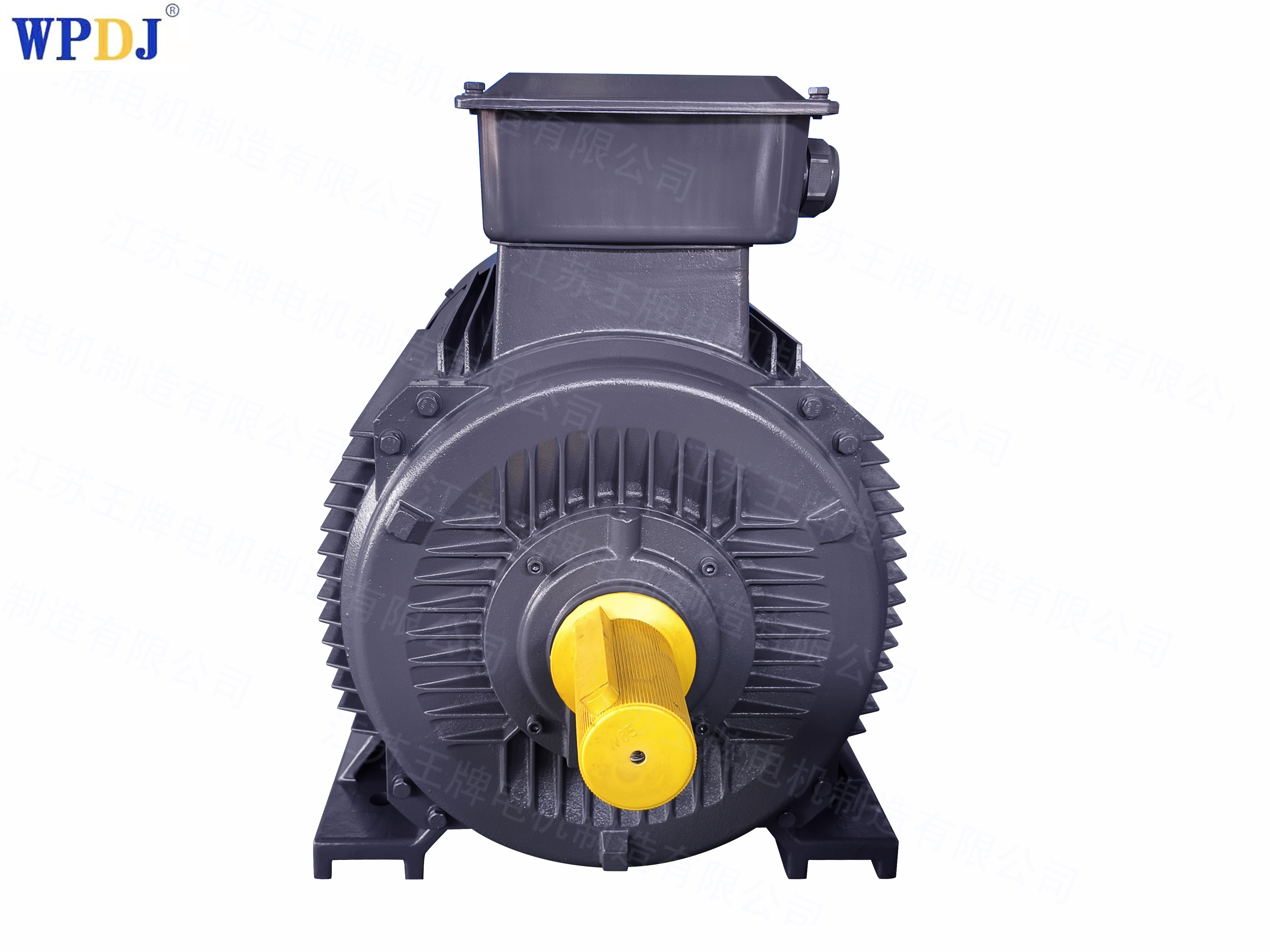

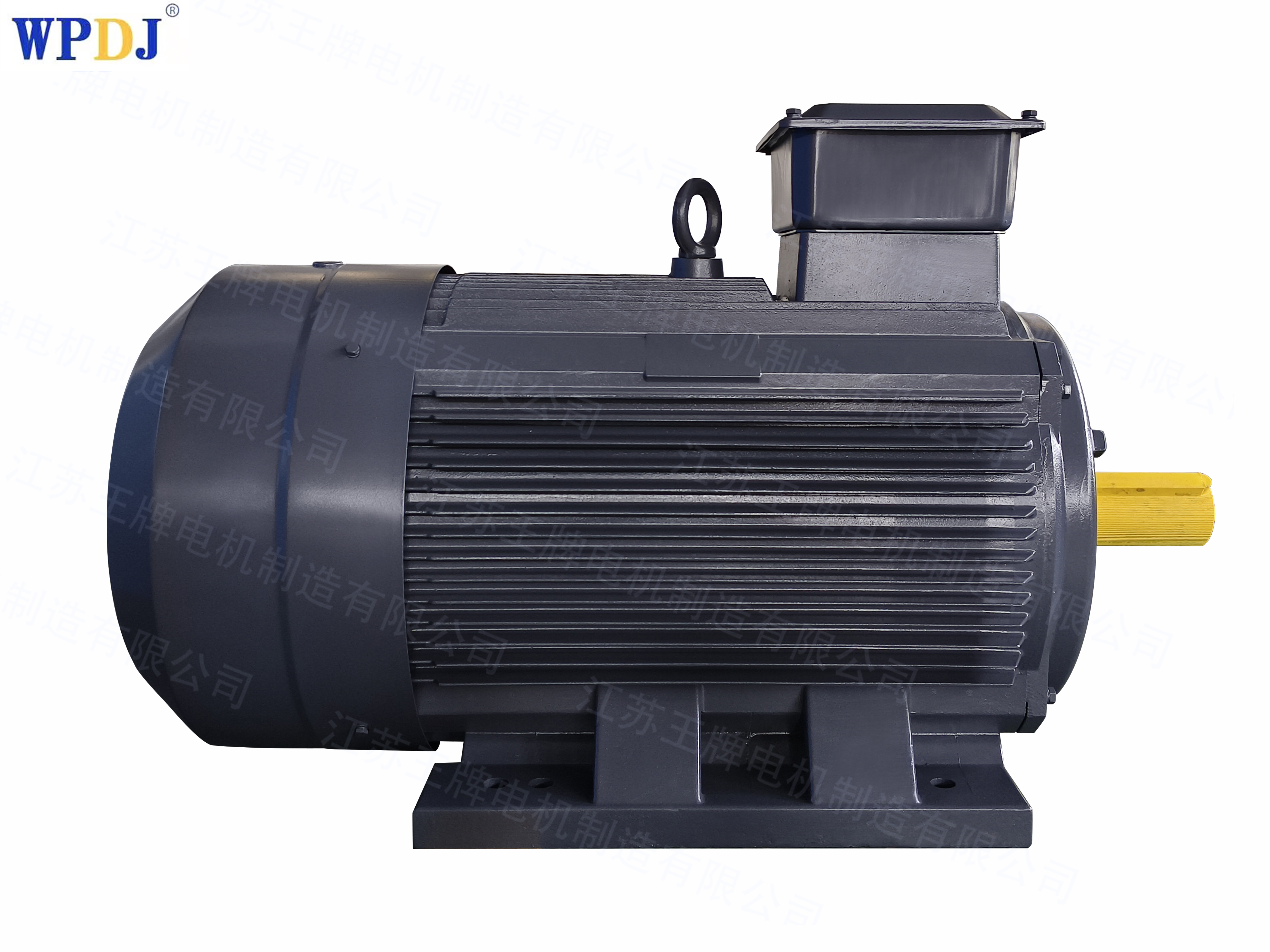

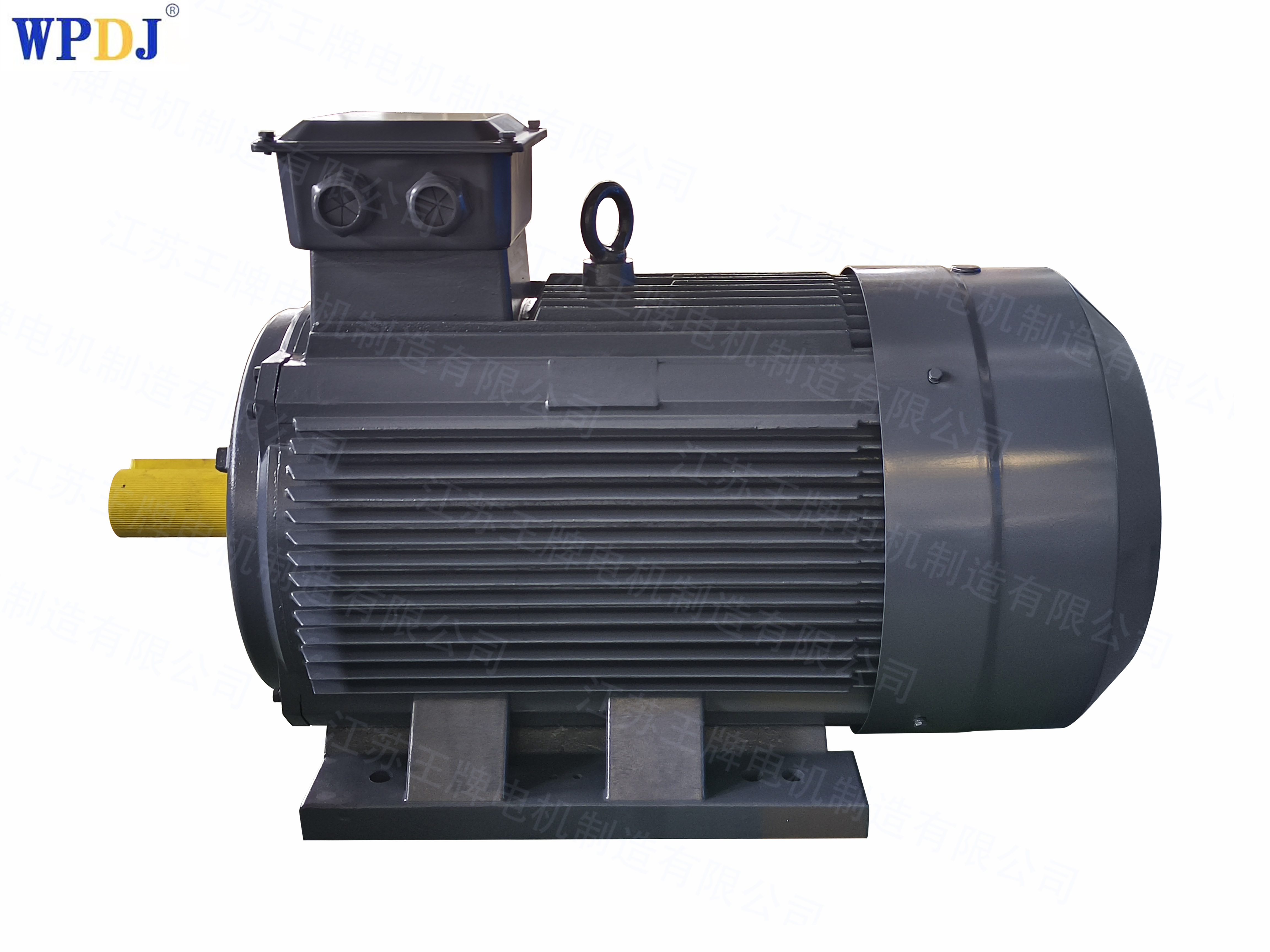

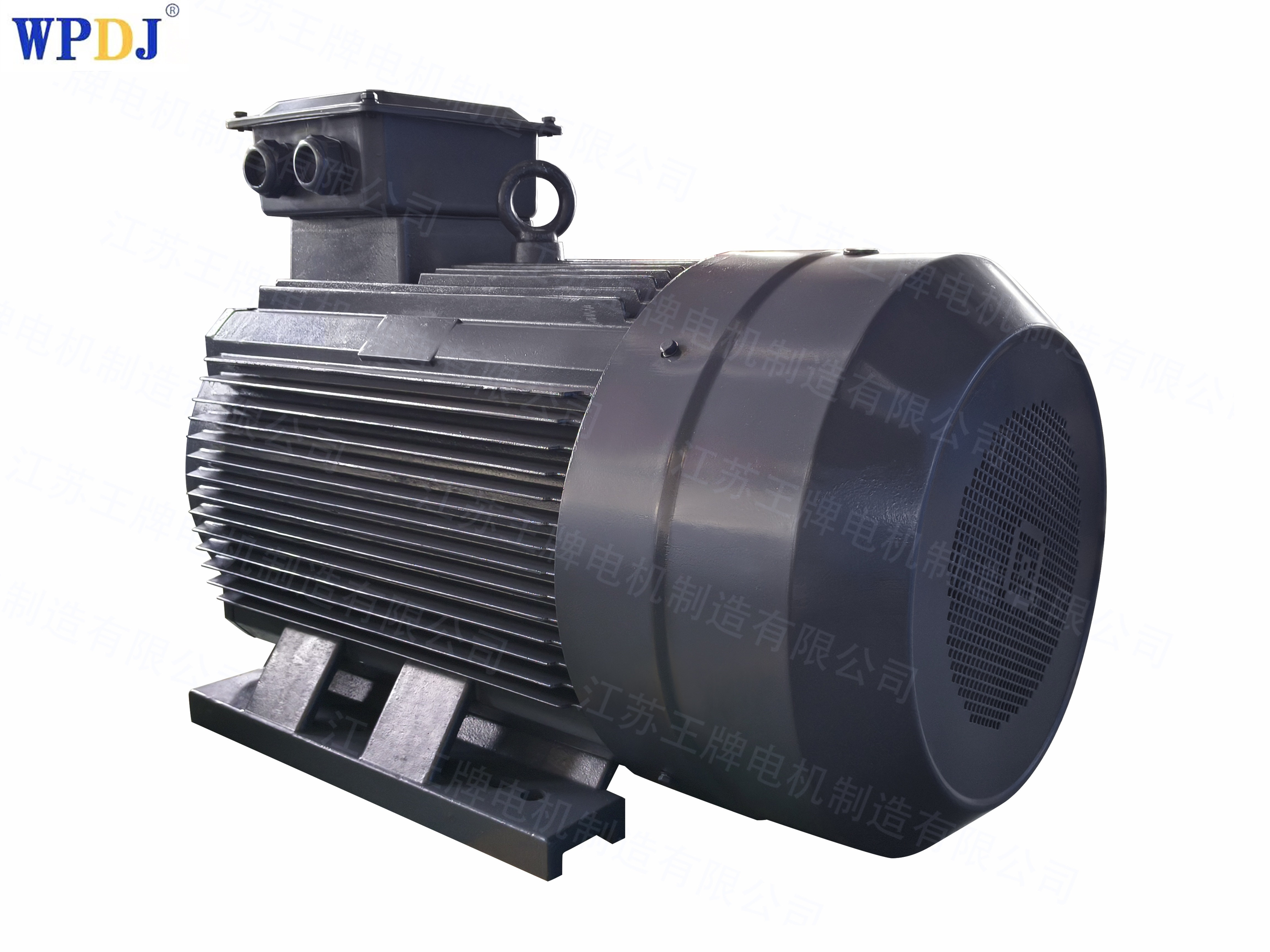

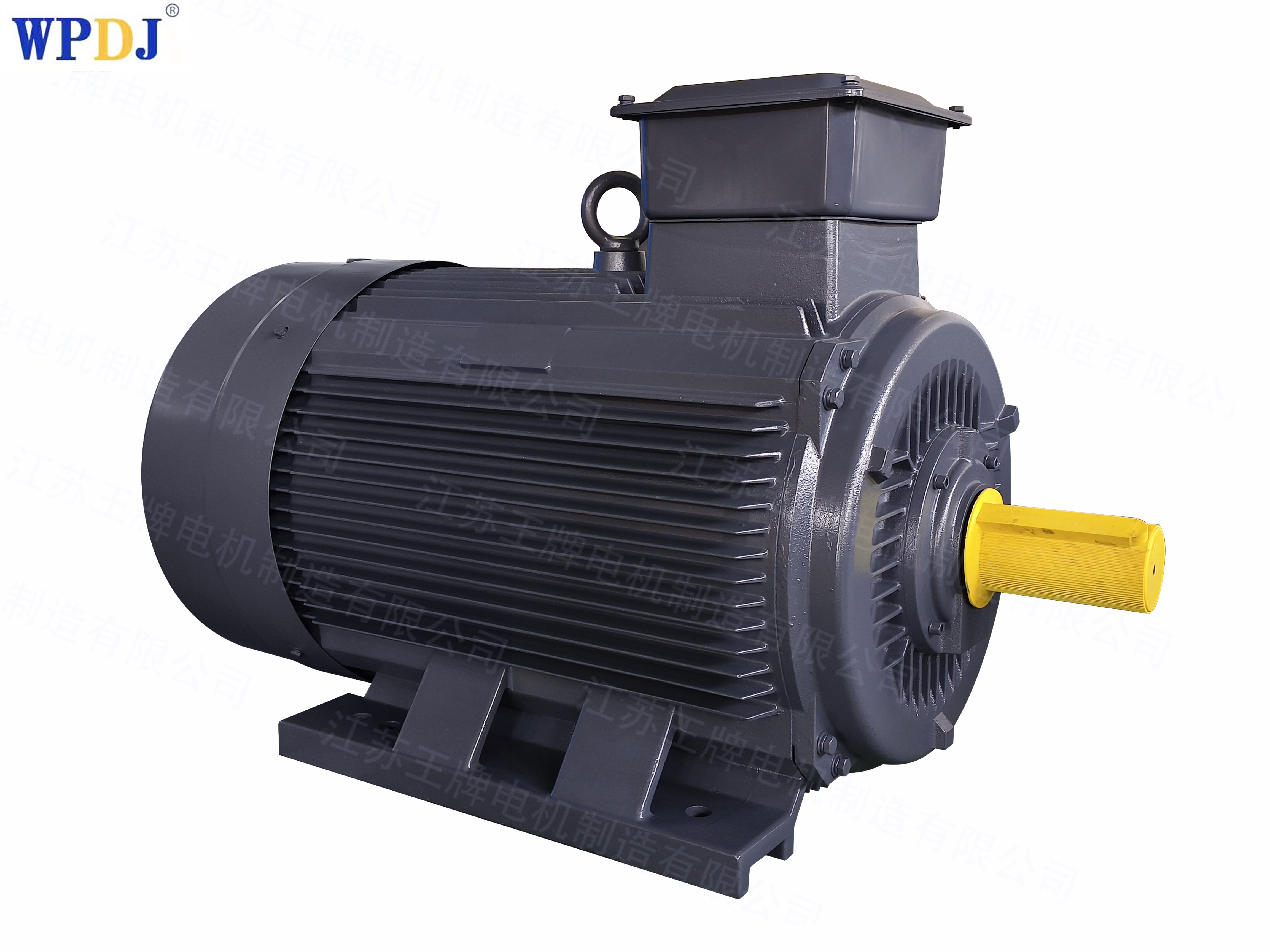

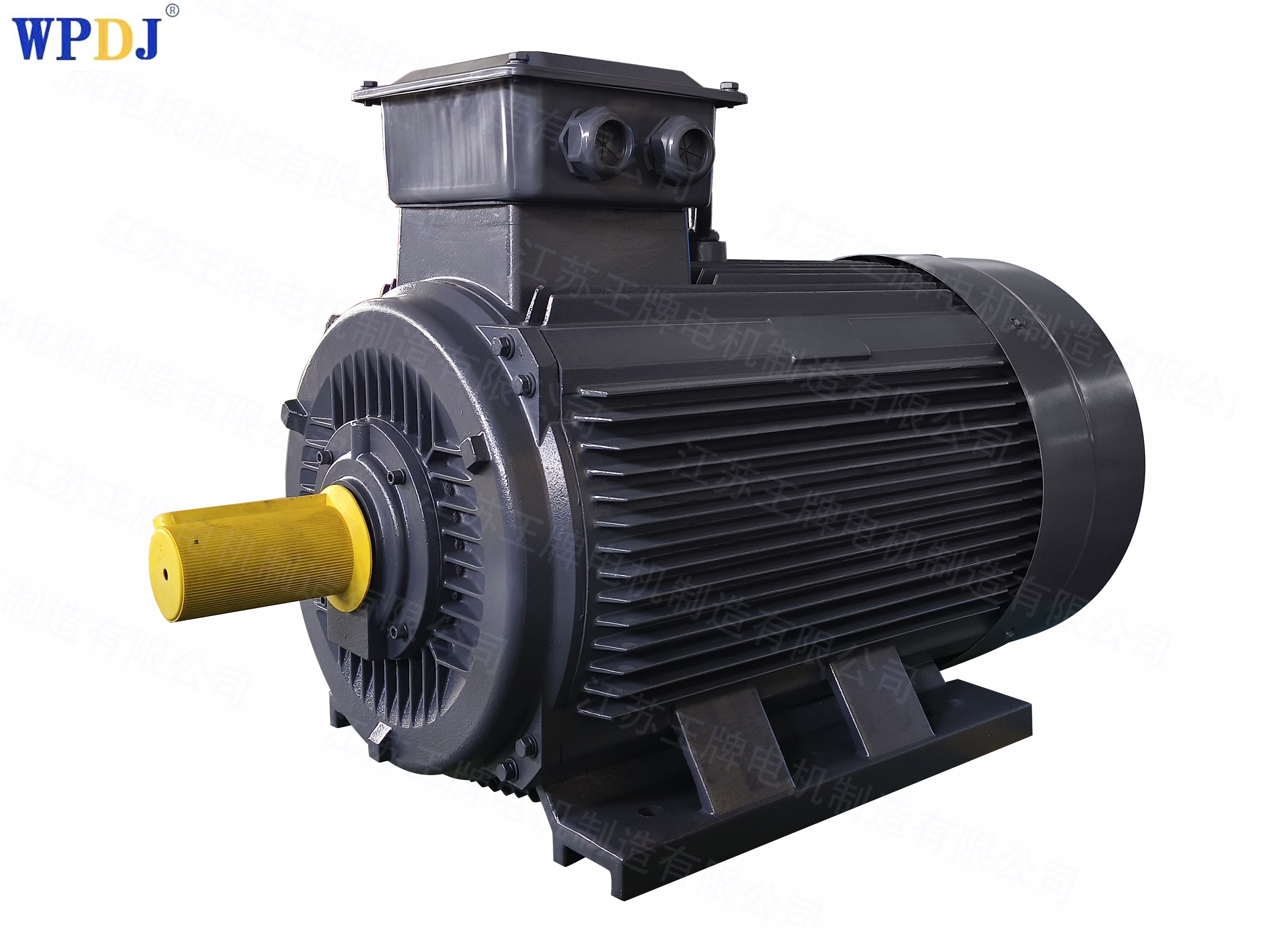

YE3 Series squirrel cage asynchronous Ac Motor

Power: 0.55KW – 315KW
Voltage: Normal 380V
Speed: 3000r/min, 1500r/min, 1000r/min
Protection Degree: IP55
Insulation Class: F
Duty: S1
Package: Export Wooden Package

Availability:

Quantity:



Inquire Add to Basket

Model:
YE3 series squirrel cage asynchronous motor
Brand:
WPDJ

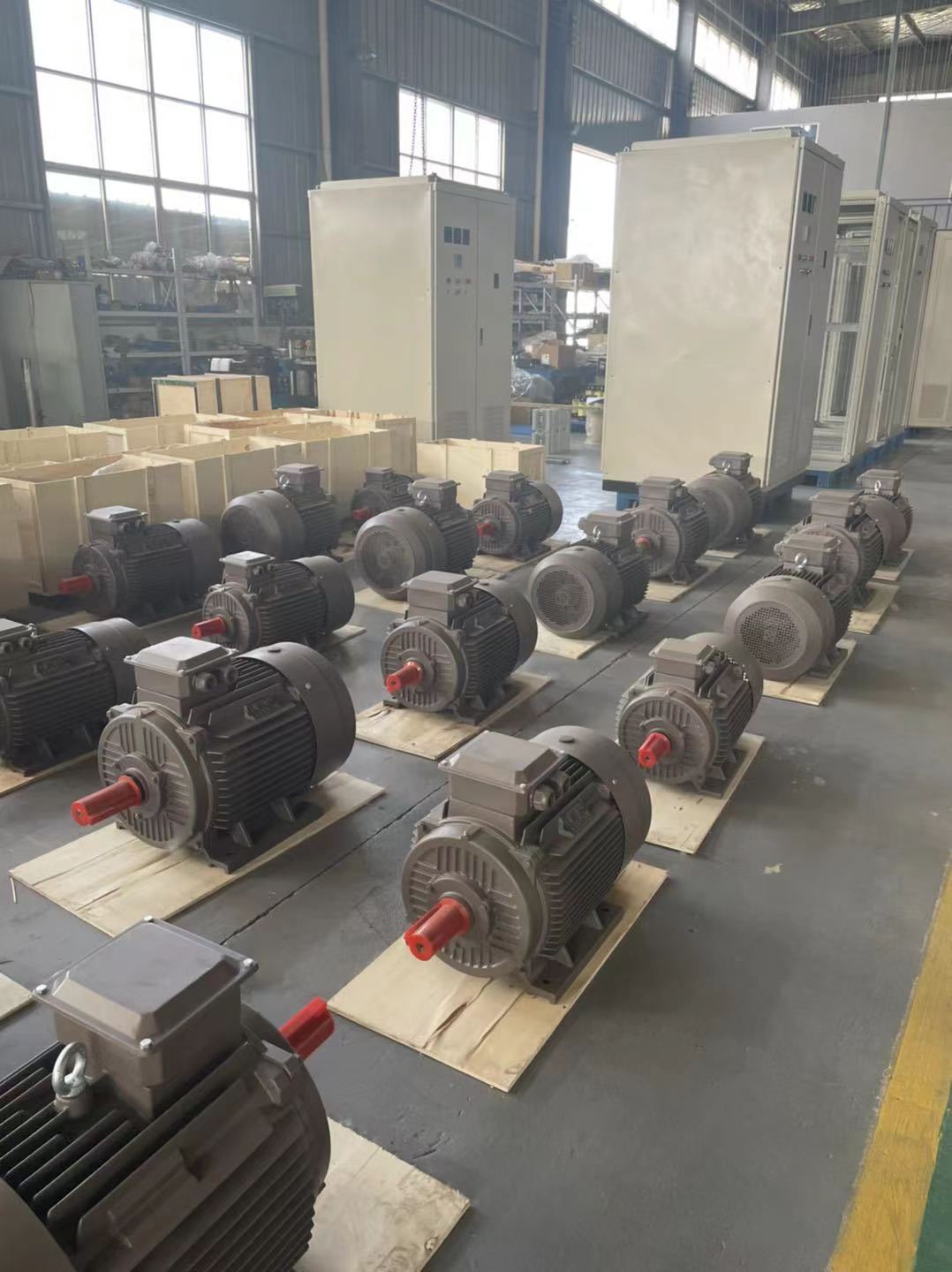

6031717656085_.pic 6021717656084_.pic

YE3 series squirrel cage asynchronous motor

序号	型号规格	功率		转速(r/min)	电流 (A)		频率(HZ)	效率(%)	功率因数	额定转矩TN	堵转转矩额定转矩	最大转矩额定转矩	堵转电流额定电流	惯量 J Kg㎡	噪声LwdB(A)	重量 Kg
		功率			电流 (A)					N·m
		KW	HP		380V	400V				N·m
1	YE3-80M1-2P	0.75	1	2885	1.7	1.6	50	80.7	0.82	2.48	2.3	2.3	7.0	0.0010	62	15
2	YE3-80M2-2P	1.1	1.5	2885	2.4	2.3	50	82.7	0.83	3.64	2.2	2.3	7.3	0.0013	62	18
3	YE3-90S-2P	1.5	2	2895	3.2	3.0	50	84.2	0.84	4.95	2.2	2.3	7.6	0.0021	67	23
4	YE3-90L-2P	2.2	3	2900	4.6	4.4	50	85.9	0.85	7.24	2.2	2.3	7.6	0.0028	67	28
5	YE3-100L-2P	3	4	2890	6.0	5.7	50	87.1	0.87	9.91	2.2	2.3	7.8	0.0046	74	39
6	YE3-112M-2P	4	5.5	2900	7.8	7.4	50	88.1	0.88	13.17	2.2	2.3	8.3	0.0074	77	49
7	YE3-132S1-2P	5.5	7.5	2925	10.6	10.1	50	89.2	0.88	17.96	2.0	2.3	8.3	0.0145	79	68
8	YE3-132S2-2P	7.5	10	2925	14.4	13.7	50	90.1	0.88	24.49	2.0	2.3	7.9	0.0176	79	75
9	YE3-160M1-2P	11	15	2945	20.6	19.6	50	91.2	0.89	35.67	2.0	2.3	8.1	0.0513	81	130
10	YE3-160M2-2P	15	20	2950	27.9	26.5	50	91.9	0.89	48.56	2.0	2.3	8.1	0.0654	81	132
53	YE3-160L-2P	18.5	25	2945	34.2	32.5	50	92.4	0.89	59.99	2.0	2.3	8.2	0.0760	81	151
11	YE3-180M-2P	22	30	2955	40.5	38.5	50	92.7	0.89	71.1	2.0	2.3	8.2	0.1183	83	209.5
12	YE3-200L1-2P	30	40	2965	54.9	52.2	50	93.3	0.89	96.63	2.0	2.3	7.6	0.1649	84	246
13	YE3-200L2-2P	37	50	2965	67.4	64.0	50	93.7	0.89	119.17	2.0	2.3	7.6	0.1945	84	265
14	YE3-225M-2P	45	60	2965	80.8	76.8	50	94.0	0.90	144.94	2.0	2.3	7.7	0.3097	86	345
15	YE3-250M-2P	55	75	2970	98.5	93.6	50	94.3	0.90	176.85	2.0	2.3	7.7	0.4168	89	422
16	YE3-280S-2P	75	100	2975	133.7	127.0	50	94.7	0.90	240.76	1.8	2.3	7.1	0.6849	91	527
17	YE3-280M-2P	90	125	2975	159.9	151.9	50	95.0	0.90	288.91	1.8	2.3	7.1	0.8015	91	578
63	YE3-315S-2P	110	150	2980	195.1	185.3	50	95.2	0.90	352.52	1.8	2.3	7.1	1.5305	92	957
64	YE3-315M-2P	132	180	2975	233.6	221.9	50	95.4	0.90	423.73	1.8	2.3	7.1	1.7253	92	987
18	YE3-315L1-2P	160	220	2975	279.4	265.4	50	95.6	0.91	513.61	1.8	2.3	7.2	2.0592	92	1153
19	YE3-315L2-2P	200	270	2975	348.6	331.2	50	95.8	0.91	642.02	1.8	2.2	7.2	2.5045	92	1347
20	YE3-355M-2P	250	340	2980	435.7	413.9	50	95.8	0.91	801.17	1.6	2.2	7.2	3.1254	100	1655
21	YE3-355L-2P	315	430	2980	543.0	515.9	50	95.8	0.91	1009.48	1.6	2.2	7.2	3.7504	100	1838

序号	型号规格	功率		转速(r/min)	电流 (A)		频率 (HZ)	效率 (%)	功率因数	额定转矩	堵转转矩	最大转矩	堵转电流	惯量	噪声	重量
		功率			电流 (A)					TN	额定转矩	额定转矩	额定电流	J		Kg
		KW	HP		380V	400V				N·m				Kg㎡	LwdB(A)
22	YE3-80M2-4P	0.75	1	1435	1.8	1.7	50	82.5	0.75	4.99	2.3	2.3	6.6	0.0023	56	19
23	YE3-90S-4P	1.1	1.5	1435	2.6	2.5	50	84.1	0.76	7.32	2.3	2.3	6.8	0.0037	59	24
24	YE3-90L-4P	1.5	2	1435	3.5	3.3	50	85.3	0.77	9.98	2.3	2.3	7.0	0.0048	59	29
25	YE3-100L1-4P	2.2	3	1450	4.8	4.6	50	86.7	0.81	14.49	2.3	2.3	7.6	0.0090	64	37
26	YE3-100L2-4P	3	4	1450	6.3	6.0	50	87.7	0.82	19.76	2.3	2.3	7.6	0.0120	64	41
27	YE3-112M-4P	4	5.5	1455	8.4	8.0	50	88.6	0.82	26.25	2.2	2.3	7.8	0.0175	65	53
28	YE3-132S-4P	5.5	7.5	1460	11.2	10.6	50	89.6	0.83	35.98	2.0	2.3	7.9	0.0350	71	69
29	YE3-132M-4P	7.5	10	1460	15.0	14.3	50	90.4	0.84	49.06	2.0	2.3	7.5	0.0447	71	81
30	YE3-160M-4P	11	15	1470	21.5	20.4	50	91.4	0.85	71.46	2.2	2.3	7.7	0.0974	73	126
31	YE3-160L-4P	15	20	1470	28.8	27.4	50	92.1	0.86	97.12	2.2	2.3	7.8	0.1239	73	147
32	YE3-180M-4P	18.5	25	1475	35.3	33.5	50	92.6	0.86	119.78	2.0	2.3	7.8	0.1811	76	203
33	YE3-180L-4P	22	30	1475	41.8	39.7	50	93.0	0.86	142.44	2.0	2.3	7.8	0.2242	76	227
34	YE3-200L-4P	30	40	1475	56.6	53.8	50	93.6	0.86	194.24	2.0	2.3	7.3	0.3631	76	290
35	YE3-225S-4P	37	50	1480	69.6	66.1	50	93.9	0.86	238.75	2.0	2.3	7.4	0.5589	78	332
36	YE3-225M-4P	45	60	1480	84.4	80.2	50	94.2	0.86	290.37	2.0	2.3	7.4	0.6351	78	353
37	YE3-250M-4P	55	75	1485	102.7	97.6	50	94.6	0.86	353.7	2.2	2.3	7.4	0.8994	79	476
38	YE3-280S-4P	75	100	1485	136.3	129.5	50	95.0	0.88	482.32	2.0	2.3	6.9	1.6251	80	615
39	YE3-280M-4P	90	125	1485	163.2	155.0	50	95.2	0.88	578.79	2.0	2.3	6.9	1.9672	80	675
40	YE3-315S-4P	110	150	1485	196.8	187.0	50	95.4	0.89	707.41	2.0	2.2	7.0	3.2735	88	1012
41	YE3-315M-4P	132	180	1485	235.7	223.9	50	95.6	0.89	848.89	2.0	2.2	7.0	3.6959	88	1061
42	YE3-315L1-4P	160	220	1485	285.1	270.8	50	95.8	0.89	1028.96	2.0	2.2	7.1	4.2239	88	1153
43	YE3-315L2-4P	200	270	1485	351.7	334.1	50	96.0	0.90	1286.2	2.0	2.2	7.1	5.9135	88	1603
44	YE3-355M-4P	250	340	1490	439.6	417.6	50	96.0	0.90	1602.35	2.0	2.2	7.1	9.6762	95	1933
45	YE3-355L-4P	315	430	1490	553.9	526.2	50	96.0	0.90	2018.96	2.0	2.2	7.1	10.5721	95	1933

序号	型号规格	功率		转速(r/min)	电流(A)		频率(HZ)	效率(%)	功率因数	额定转矩TN	堵转转矩额定转矩	最大转矩额定转矩	堵转电流额定电流	惯量J	噪声	重量Kg
序号	型号规格	KW	HP	转速(r/min)	380V	400V	频率(HZ)	效率(%)	功率因数	N·m				Kg㎡	LwdB (A)
46	YE3-90S-6P	0.75	1	955	2.0	1.9	50	78.9	0.71	7.50	2.0	2.1	6.0	0.0048	57	25
47	YE3-90L-6P	1.1	1.5	955	2.8	2.7	50	81.0	0.73	11.0	2.0	2.1	6.0	0.0071	57	30
48	YE3-100L-6P	1.5	2	955	3.8	3.6	50	82.5	0.73	15.0	2.0	2.1	6.5	0.0126	61	38
49	YE3-112M-6P	2.2	3	950	5.4	5.1	50	84.3	0.74	22.12	2.0	2.1	6.6	0.0191	65	48
50	YE3-132S-6P	3	4	970	7.2	6.8	50	85.6	0.74	29.54	2.0	2.1	6.8	0.0357	69	64
51	YE3-132M1-6P	4	5.5	970	9.5	9.0	50	86.8	0.74	39.38	2.0	2.1	6.8	0.0477	69	75
52	YE3-132M-6P	5.5	7.5	970	12.7	12.1	50	88.0	0.75	54.15	2.0	2.1	7.0	0.0630	69	85
54	YE3-160M-6P	7.5	10	975	16.2	15.4	50	89.1	0.79	73.46	2.0	2.1	7.0	0.1119	73	115
55	YE3-160L-6P	11	15	975	23.1	21.9	50	90.3	0.80	107.74	2.0	2.1	7.2	0.1492	73	135
56	YE3-180L-6P	15	20	980	30.9	29.4	50	91.2	0.81	146.17	2.0	2.1	7.3	0.2574	73	186
57	YE3-200L1-6P	18.5	25	980	37.8	35.9	50	91.7	0.81	180.28	2.0	2.1	7.3	0.3881	73	236
58	YE3-200L2-6P	22	30	980	44.8	42.6	50	92.2	0.81	214.39	2.0	2.1	7.4	0.4478	73	254
59	YE3-225M-6P	30	40	985	59.1	56.1	50	92.9	0.83	290.86	2.0	2.1	6.9	0.6342	74	297.5
60	YE3-250M-6P	37	50	985	71.7	68.1	50	93.3	0.84	358.73	2.0	2.1	7.1	1.0787	76	371
61	YE3-280S-6P	45	60	985	85.8	81.5	50	93.7	0.85	436.29	2.0	2.0	7.3	1.7050	78	518
62	YE3-280M-6P	55	75	985	103.3	98.1	50	94.1	0.86	533.25	2.0	2.0	7.3	2.0619	78	670
65	YE3-315S-6P	75	100	990	143.4	136.2	50	94.6	0.84	723.48	2.0	2.0	6.6	3.9210	83	877
66	YE3-315M-6P	90	125	990	169.5	161.0	50	94.9	0.85	868.18	2.0	2.0	6.7	4.2711	83	1008
67	YE3-315L1-6P	110	150	990	206.8	196.5	50	95.1	0.85	1061.11	2.0	2.0	6.7	5.4614	83	1057
68	YE3-315L2-6P	132	180	990	244.4	232.2	50	95.4	0.86	1273.33	2.0	2.0	6.8	6.5817	83	1161
69	YE3-355M1-6P	160	220	990	295.7	280.9	50	95.6	0.86	1543.43	1.8	2.0	6.8	10.3039	85	1798
70	YE3-355M2-6P	200	270	990	364.6	346.4	50	95.8	0.87	1929.29	1.8	2.0	6.8	11.7758	85	1854
71	YE3-355L-6P	250	340	990	455.7	432.9	50	95.8	0.87	2411.62	1.8	2.0	6.8	15.2860	85	2176

YE3 series ac motor squirrel cage asynchronous motor ac motor
