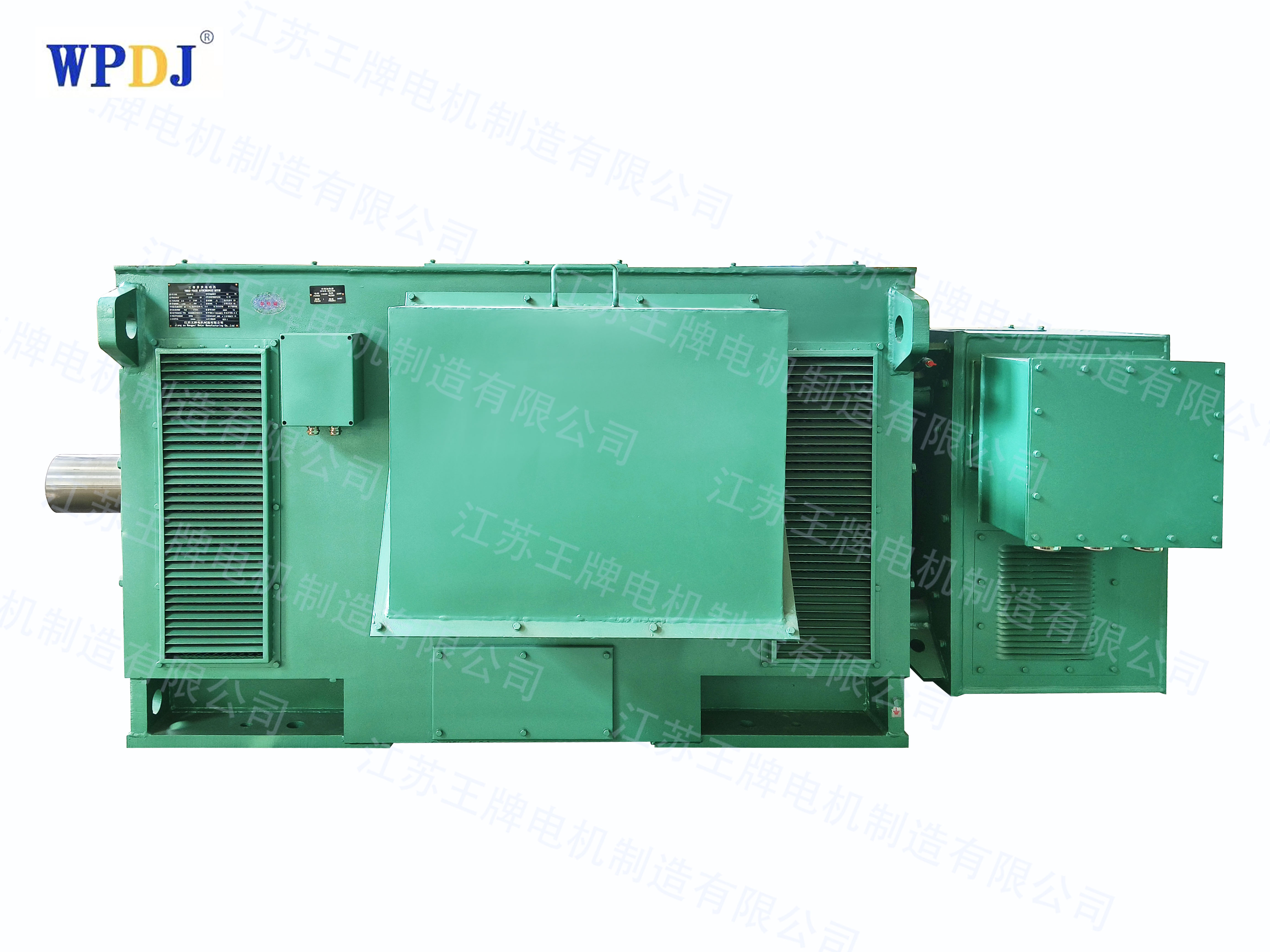

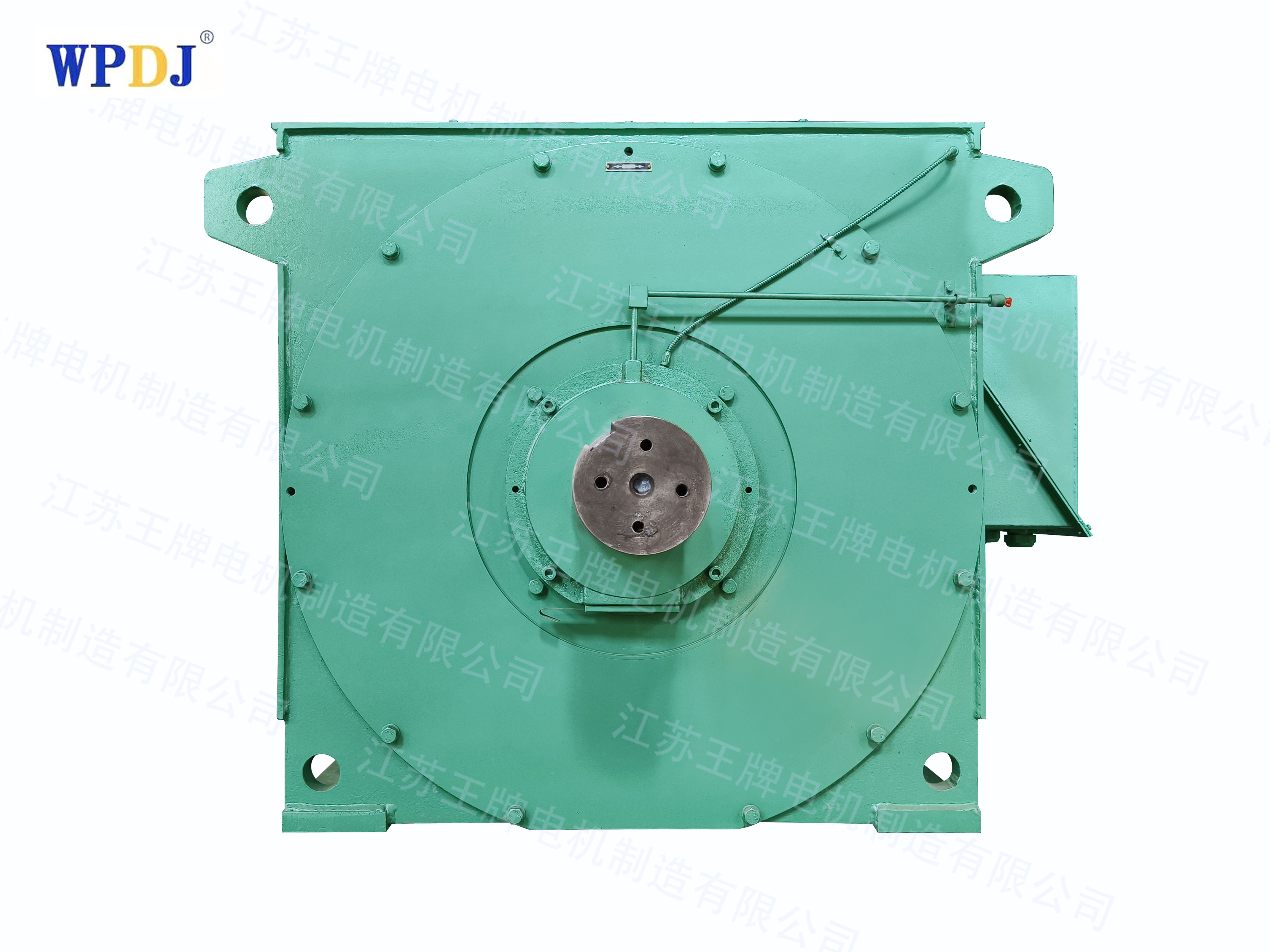

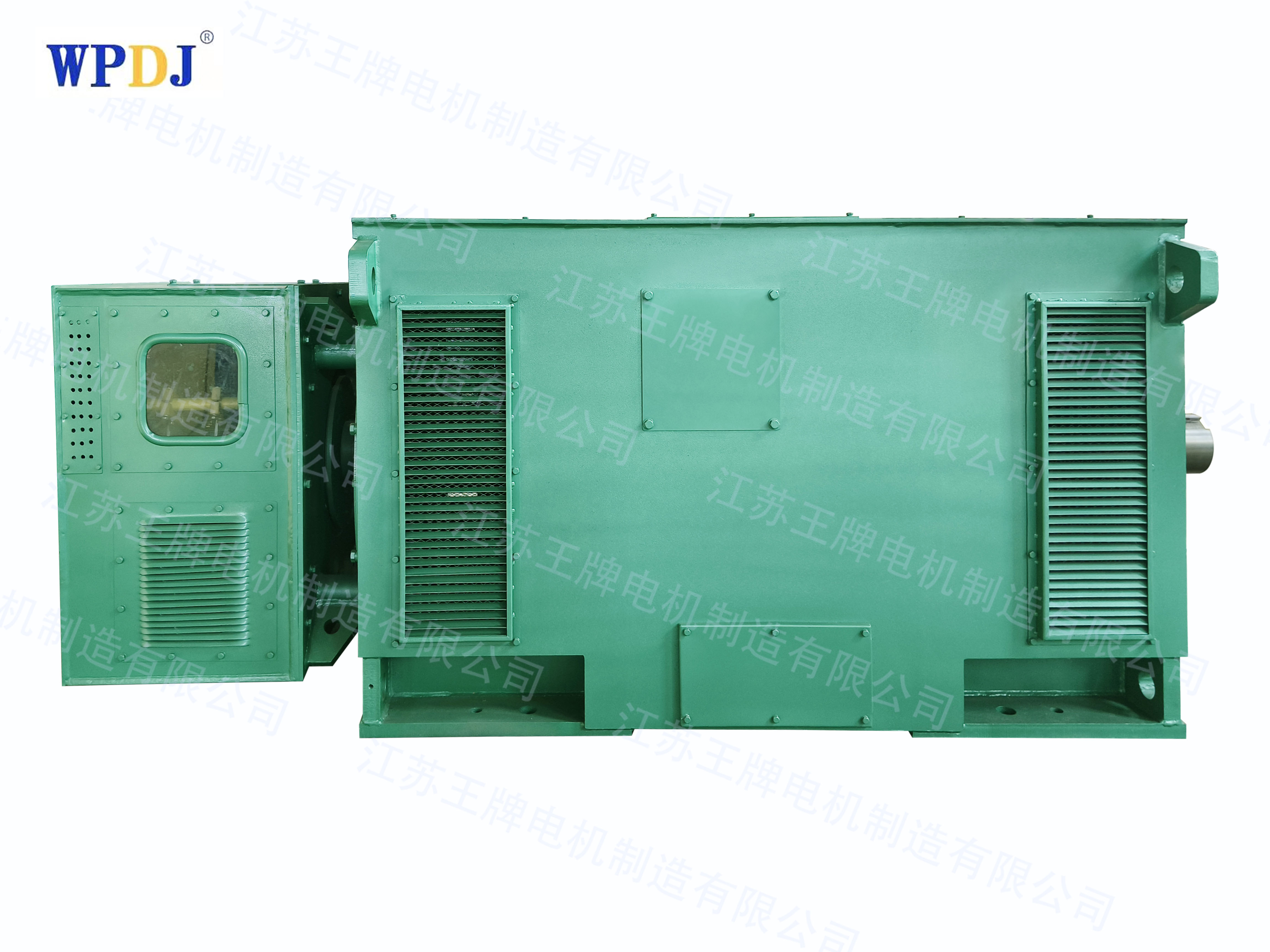

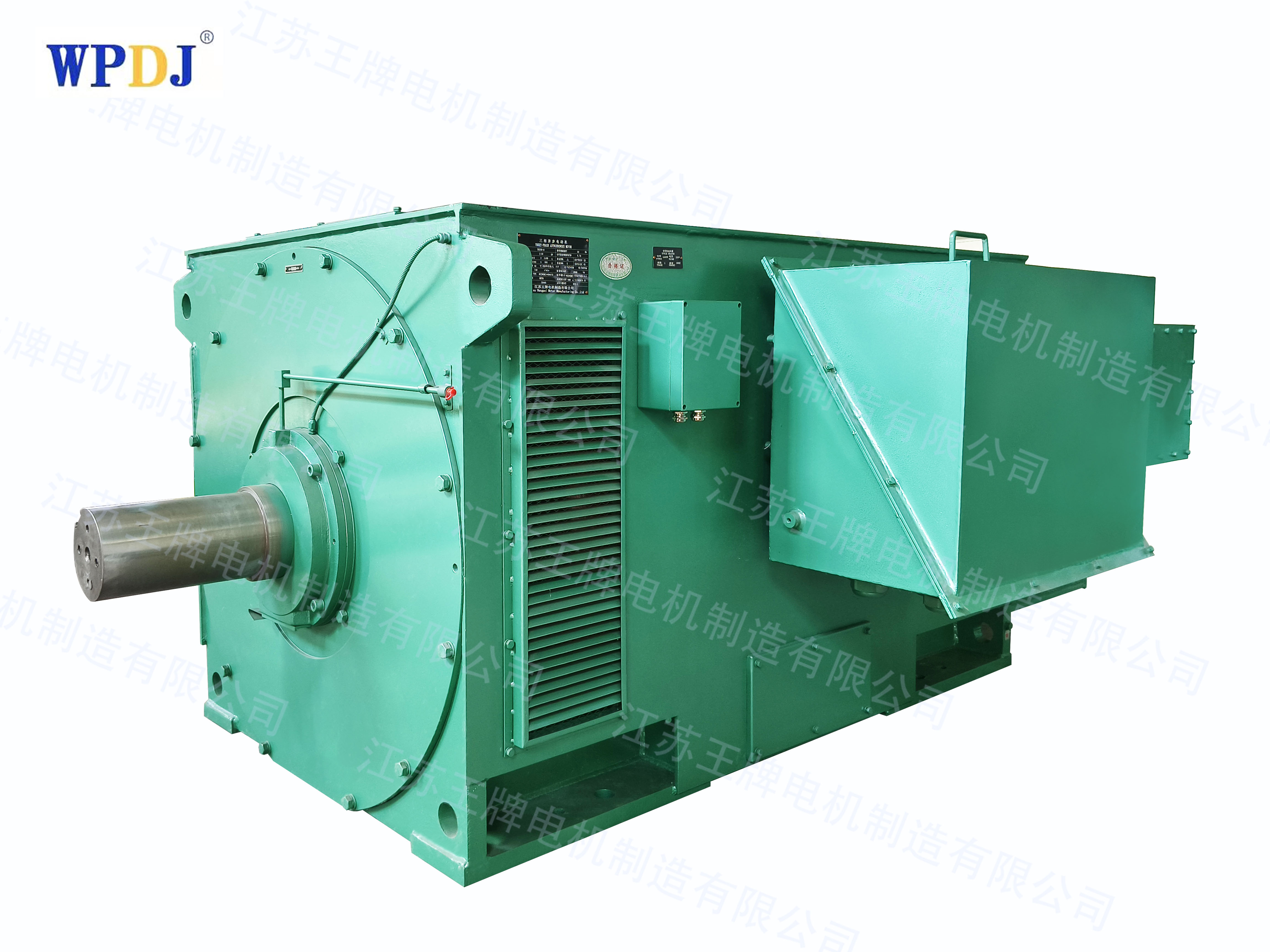

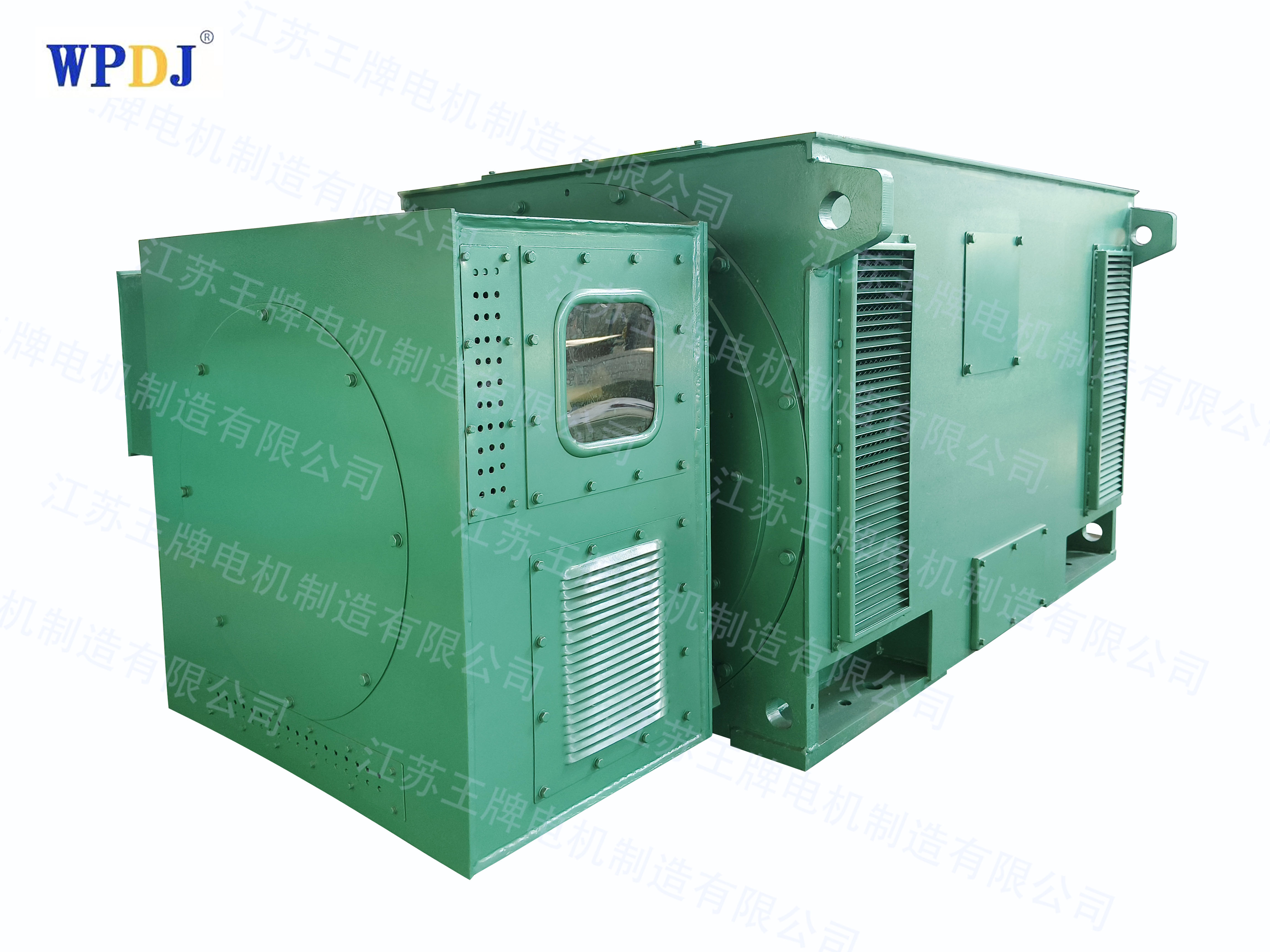

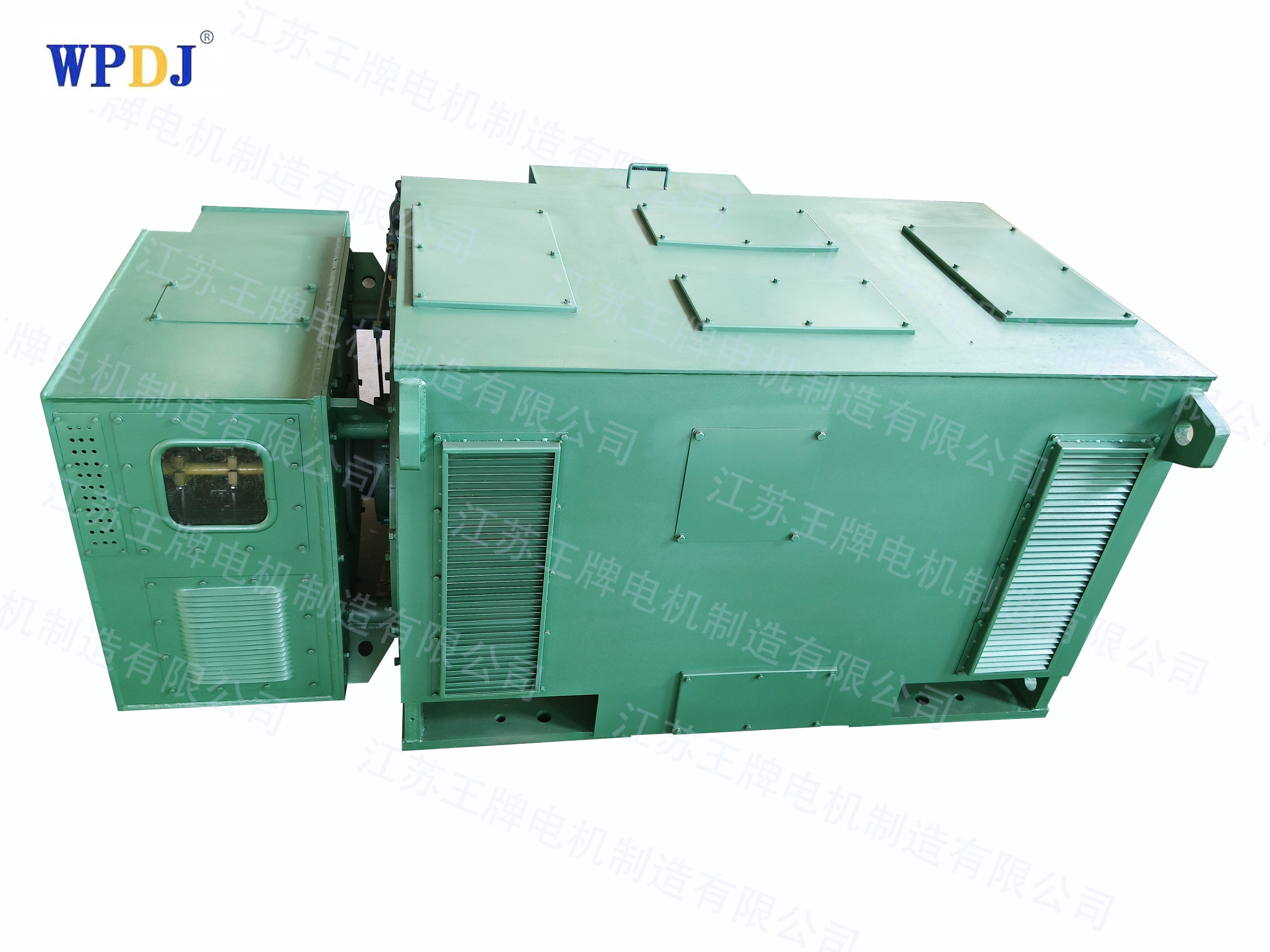

YR Series wound rotor slip ring high voltage ac motor

Power: 220kw - 2500KW
Voltage: 3KV, 6KV, 10KV
Speed: 500RPM/590RPM/740RPM/990RPM/1500RPM/3000RPM
Protection Degree: IP23
Cooling method: IC01
Insulation Class: F
Duty: S1
Package: Export Wooden Package

Availability:

Quantity:



Inquire Add to Basket

Model:
YR Series wound rotor slip ring high voltage ac motor
Brand:
WPDJ

motor specification

YR series wound rotor slip ring motors are specified for cement mill drives where high starting torque under heavy rotating masses is critical. Ball mills and raw mills have very high inertia — the mill drum, charge and material must be accelerated from standstill, often with a partially loaded chamber. The slip ring rotor with external resistance provides smooth, high-torque starting with controlled current draw, protecting both motor and driven equipment from mechanical shock. Designed for continuous S1 duty in cement plants, with 3KV/6KV/10KV supplies from 220kW to 2500kW, IP44/IP54 protection and IC611 cooling. Typical applications: cement ball mills, raw mills, coal mills and rubber mixers. The robust stator and rotor construction, Class F insulation and forced ventilation suit the dusty, high-temperature environment of cement production lines. Test reports per IEC 60034 supplied with every motor.

YR series wound rotor slip ring high voltage motor（6000V）

型号 Type	额定功率RatedOutput(kW)	定子电流_RatedCurrent(A)	转速 Speed (r/min)	效率 Efficiency %	功率因数PowerFavtor (cosΦ)	最大转矩额定转矩 Mmax Mn	转子电压 Rotor Voltage (V)	转子电流 Rotor Cunent (A)
YR3551-4	220	27.5	1475	92.7	0.83	1.8	343	389
YR3552-4	250	30.8		93.0	0.84		368	413
YR3553-4	280	34.5		93.1	0.84		431	393
YR4001-4	315	38.3	1480	93.2	0.85	1.8	372	521
YR4002-4	355	43.1		93.3			400	545
YR4003-4	400	48.5		93.5			435	567
YR4004-4	450	54.4		93.7			475	584
YR4005-4	500	60.3		93.9			521	585
YR4501-4	560	67.3	1480	94.2	0.85	1.8	521	654
YR4502-4	630	74.6		94.5	0.86		578	659
YR4503-4	710	84.0		94.6	0.86		650	657
YR4504-4	800	93.6		94.7	0.87		745	645
YR5001-4	900	105.3	1485	94.8	0.87	1.8	921	590
YR5002-4	1000	116.6		94.9			987	612
YR5003-4	1120	130.4		95.0			1064	636
YR5004-4	1250	145.4		95.1			1154	655
YR5601-4	1400	162.7	1485	95.2	0.87	1.8	1150	735
YR5602-4	1600	185.7		95.3			1256	770
YR5603-4	1800	208.7		95.4			1385	789
YR6301-4	2000	231.6	1480	95.5	0.87	1.8	1538	778
YR6302-4	2240	259.2		95.6			1732	772
YR6303-4	2500	289.0		95.7			1980	751
YR4001-6	220	28.3	980	92.5	0.81	1.8	292	462
YR4002-6	250	31.7		92.7	0.82		313	491
YR4003-6	280	35.4		92.8			337	510
YR4004-6	315	39.8		93.0			365	529
YR4005-6	355	44.8		93.2			399	546
YR4501-6	400	49.6	980	93.5	0.83	1.8	395	615
YR4502-6	450	55.1		93.6	0.84		436	631
YR4503-6	500	61.6		93.8	0.84		484	628
YR4504-6	560	68.3		94.0	0.84		546	624

型号 Type	额定功率 Rated Output (kW)	定子电流Rated Current(A)	转速 Speed (r/min)	效率 Efficiency %	功率因数PowerFavtor (cosΦ)	最大转矩额定转矩 Mmax Mn	转子电压 Rotor Voltage (V)	转子电流 Rotor Current (A)
YR5001-6	630	75.6	980	94.3	0.85	1.8	857	440
YR5002-6	710	85.1		94.5			920	463
YR5003-6	800	95.6		94.7			1054	455
YR5004-6	900	107.5		94.8			1159	464
YR5601-6	1000	119.2	990	95.0	0.85	1.8	1029	588
YR5602-6	1120	133.3	990	95.1	0.85	1.8	1060	648
YR5603-6	1250	148.6	990	95.2	0.80	1.8	1238	613
YR6301-6	1400	166.3	985	95.3	0.85	1.8	1346	622
YR6302-6	1600	189.9		95.4			1483	645
YR6303-6	1800	213.4		95.5			1649	653
YR4003-8	220	29.5	740	92.2	0.78	1.8	472	282
YR4004-8	250	33.4		92.3	0.78		509	298
YR4005-8	280	36.9		92.5	0.79		550	307
YR4501-8	315	40.9	740	92.6	0.80	1.8	581	326
YR4502-8	355	46.1		92.7			630	338
YR4503-8	400	51.8		93.0			687	349
YR4504-8	450	57.5		93.2	0.81		757	357
YR5001-8	500	63.5	740	93.5	0.81	1.8	665	451
YR5002-8	560	71.0		93.7			738	453
YR5003-8	630	79.7		93.9			823	453
YR5004-8	710	89.7		94.0			833	516
YR5601-8	800	100.9	745	94.2	0.81	1.8	743	660
YR5602-8	900	113.4		94.3			836	658
YR5603-8	1000	125.8		94.4			956	635
YR6301-8	1120	140.8	740	94.5	0.81	1.8	1092	615
YR6302-8	1250	157.0		94.6			1232	605
YR6303-8	1400	175.6		94.7			1336	627
YR6304-8	1600	200.5		94.8			1458	657
YR4501-10	220	30.1	595	91.3	0.77	1.8	471	287
YR4502-10	250	34.2		91.5	0.77		507	303
YR4503-10	280	37.7		91.8	0.78		550	313
YR4504-10	315	42.3		91.8			600	323
YR4505-10	355	47.6		92.1			660	330

型号 Type	额定功率 Rated Output (kW)	定子电流Rated Current (A)	转速 Speed(r/min)	效率Efficiency %	功率因数 Power Favtor (cosΦ)	最大转矩额定转矩 Mmax Mn	转子电压 Rotor Voltage (V)	转子电流 Rotor Current (A)
YR5001-10	400	53.2	590	92.8	0.78	1.8	602	403
YR5002-10	450	59.6		93.1	0.78		662	411
YR5003-10	500	65.3		93.3	0.79		736	409
YR5004-10	560	73.0		93.5	0.79		830	407
YR5601-10	630	81.0	595	93.6	0.80	1.8	743	516
YR5602-10	710	91.1		93.7			835	516
YR5603-10	800	102.6		93.8			894	506
YR6301-10	900	115.3	590	93.9	0.80	1.8	1103	486
YR6302-10	1000	127.8		94.1			1201	493
YR6303-10	1120	143.0		94.2			1323	503
YR6304-10	1250	159.4		94.3			1469	503
YR4504-12	220	32.6	490	90.4	0.72	1.8	460	283
YR4505-12	250	36.6	490	91.5	0.72	1.8	526	280
YR5001-12	280	40.2	490	91.7	0.73	1.8	504	332
YR5002-12	315	44.5		92.0	0.74		542	347
YR5003-12	355	49.5		92.1	0.75		588	361
YR5004-12	400	55.6		92.3	0.75		641	373
YR5601-12	450	60.8	490	92.5	0.77	1.8	707	383
YR5602-12	500	67.4		92.7			786	381
YR5603-12	560	75.4		92.8			884	378
YR5604-12	630	84.7		92.9			885	430
YR6301-12	710	95.4	495	93.0	0.77	1.8	973	434
YR6302-12	800	107.4		93.1			974	494
YR6303-12	900	120.7		93.2			1137	473
YR6304-12	1000	133.9		93.3			1138	530

YR series wound rotor slip ring high voltage motor（10000V）

型号 Type	额定功率 Rated Output (kW)	定子电流 Rated Current (A)	转速 Speed (r/min)	效率Efficiency %	功率因数PowerFavtor (cosΦ)	最大转矩额定转矩 Mmax Mn	转子电压 Rotor Voltage (V)	转子电流 Rotor Cunent (A)
YR4501-4	315	23.4	1490	92.5	0.84	1.8	454	423
YR4502-4	355	26.3		92.8	0.84		507	426
YR4503-4	400	29.2		93.1	0.85		553	438
YR4504-4	450	32.8		93.3			577	472
YR4505-4	500	36.3		93.6			634	475
YR4506-4	560	40.6		93.8			674	500
YR5001-4	630	45.4	1490	94.2	0.85	1.8	641	590
YR5002-4	710	51.0	1485	94.6	0.85		660	647
YR5003-4	800	56.7		94.7	0.86		701	688
YR5004-4	900	63.7		94.8			722	754
YR5005-4	1000	70.7		94.9			795	760
YR5601-4	1120	78.2	1490	95.1	0.87	1.8	938	714
YR5602-4	1250	87.1		95.2			1018	734
YR5603-4	1400	97.5		95.3			1112	753
YR6301-4	1600	110.0	1490	95.4	0.88		1167	827
YR6302-4	1800	123.7		95.5			1285	844
YR6303-4	2000	137.3		95.6			1429	842
YR4501-6	220	17.1	985	91.6	0.81	1.8	393	340
YR4502-6	250	19.4		91.9			419	362
YR4503-6	280	21.6		92.2			450	377
YR4504-6	315	24.3	990	92.4	0.81		509	375
YR4505-6	355	27.3	985	92.6			552	389
YR4506-6	400	30.7	985	92.8			602	401
YR5001-6	450	34.5	990	93.1	0.81	1.8	812	332
YR5002-6	500	38.2		93.4			849	353
YR5003-6	560	42.6		93.6			909	369
YR5004-6	630	47.3	985	93.8	0.82		939	404
YR5005-6	710	53.2	990	94.0	0.82		1060	400
YR5601-6	800	58.3	990	94.3	0.84	1.8	844	570
YR5602-6	900	65.5		94.5	0.84		906	600
YR5603-6	1000	71.7		94.7	0.85		973	618
YR5604-6	1120	80.2		94.9	0.85		1055	638
YR6301-6	1250	89.3	990	95.1	0.85	1.8	1056	703
YR6302-6	1400	99.8		95.3			1154	722
YR6303-6	1600	113.9		95.4			1272	751

型号 Type	额定功率 Rated Output (kW)	定子电流 Rated Current(A)	转速Speed (r/min)	效率Efficiency %	功率因数Power Favtor (cosΦ)	最大转矩额定转矩 Mmax Mn	转子电压Rotor Voltage (V)	转子电流 Rotor Cunent (A)
YR5001-8	280	23.4	740	92.2	0.75	1.8	579	291
YR5002-8	315	26.4		92.3			639	295
YR5003-8	355	29.4		92.5			677	314
YR5004-8	400	33.2		92.8			719	333
YR5005-8	450	36.2		93.1	0.77		734	369
YR5006-8	500	40.2		93.3	0.77		785	382
YR5601-8	560	43.7	745	93.6	0.79	1.8	879	379
YR5602-8	630	49.1		93.8			944	398
YR5603-8	710	55.2		94.0			1016	417
YR5604-8	800	62.1		94.2			1102	434
YR6301-8	900	67.1	740	94.4	0.82	1.8	1056	506
YR6302-8	1000	74.4		94.6			1152	515
YR6303-8	1120	83.2		94.8			1268	523
YR5001-10	200	17.7	595	90.8	0.72	1.8	572	209
YR5002-10	220	19.4		91.1			604	218
YR5003-10	250	21.9		91.4			641	233
YR5004-10	280	24.5		91.7			682	246
YR5005-10	315	27.4		92.1			727	259
YR5006-10	355	30.9		92.2			779	272
YR5601-10	400	33.8	595	92.4	0.74	1.8	734	329
YR5602-10	450	37.3		92.8	0.75		787	344
YR5603-10	500	41.4		93.0	0.75		848	355
YR5604-10	560	45.6		93.2	0.76		919	367
YR5605-10	630	51.2		93.4	0.76		1003	379
YR6301-10	710	56.1	595	93.7	0.78	1.8	965	439
YR6302-10	800	63.1		93.8			1054	453
YR6303-10	900	70.9		93.9			1159	462
YR6304-10	1000	78.7		94.1			1289	462
YR5601-12	280	24.6	495	91.4	0.72	1.8	683	244
YR5602-12	315	27.6		91.5			726	257
YR5603-12	355	31.1		91.6			776	272
YR5604-12	400	34.9		91.8			832	286
YR5605-12	450	39.1		92.2			895	298
YR6301-12	500	42.8	495	92.4	0.73	1.8	856	345
YR6302-12	560	47.1		92.8	0.74		928	357
YR6303-12	630	52.8		93.1			1012	368
YR6304-12	710	59.3		93.4			1116	377
