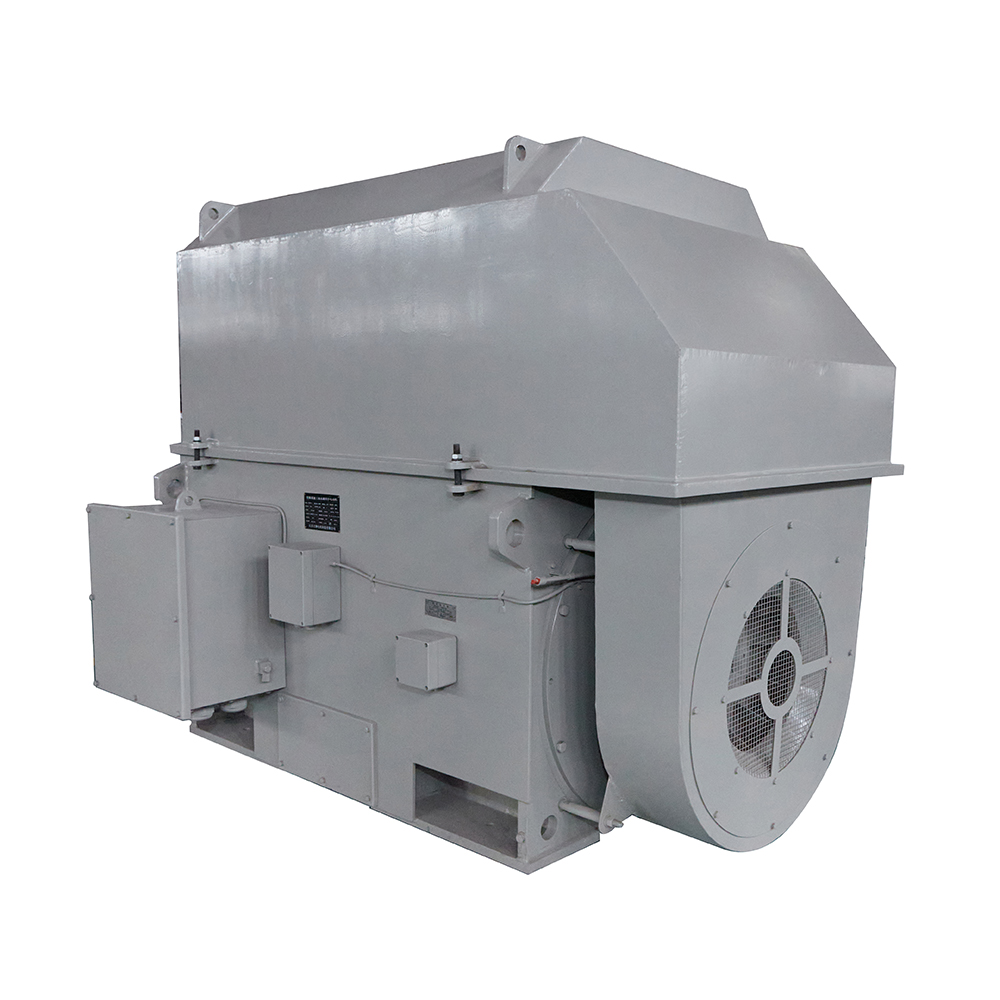

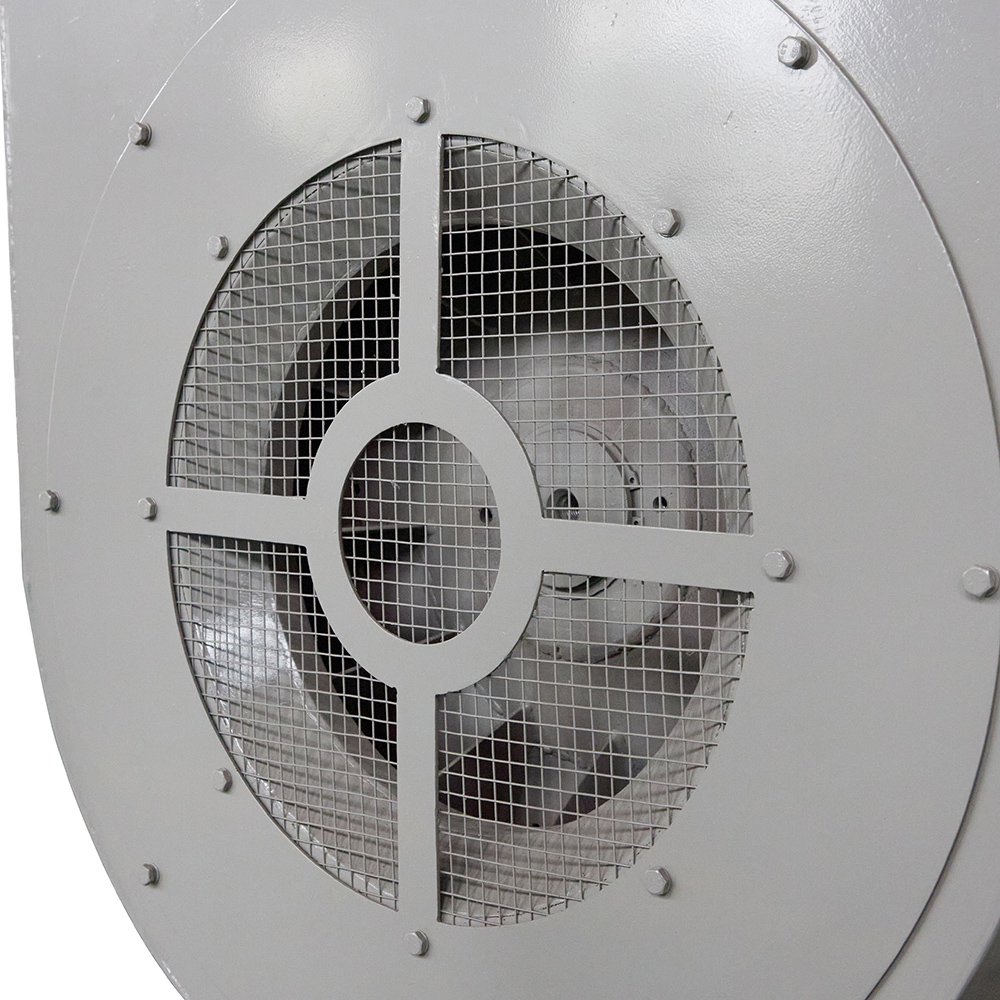

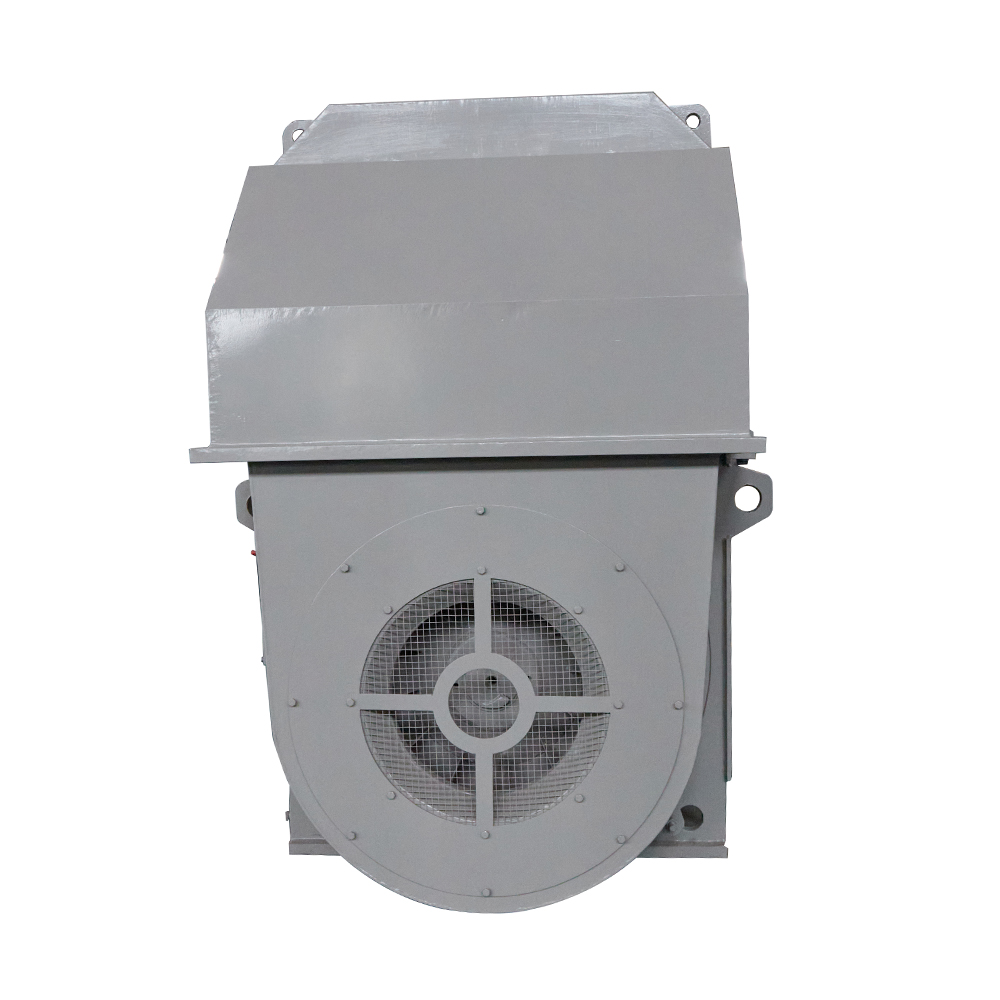

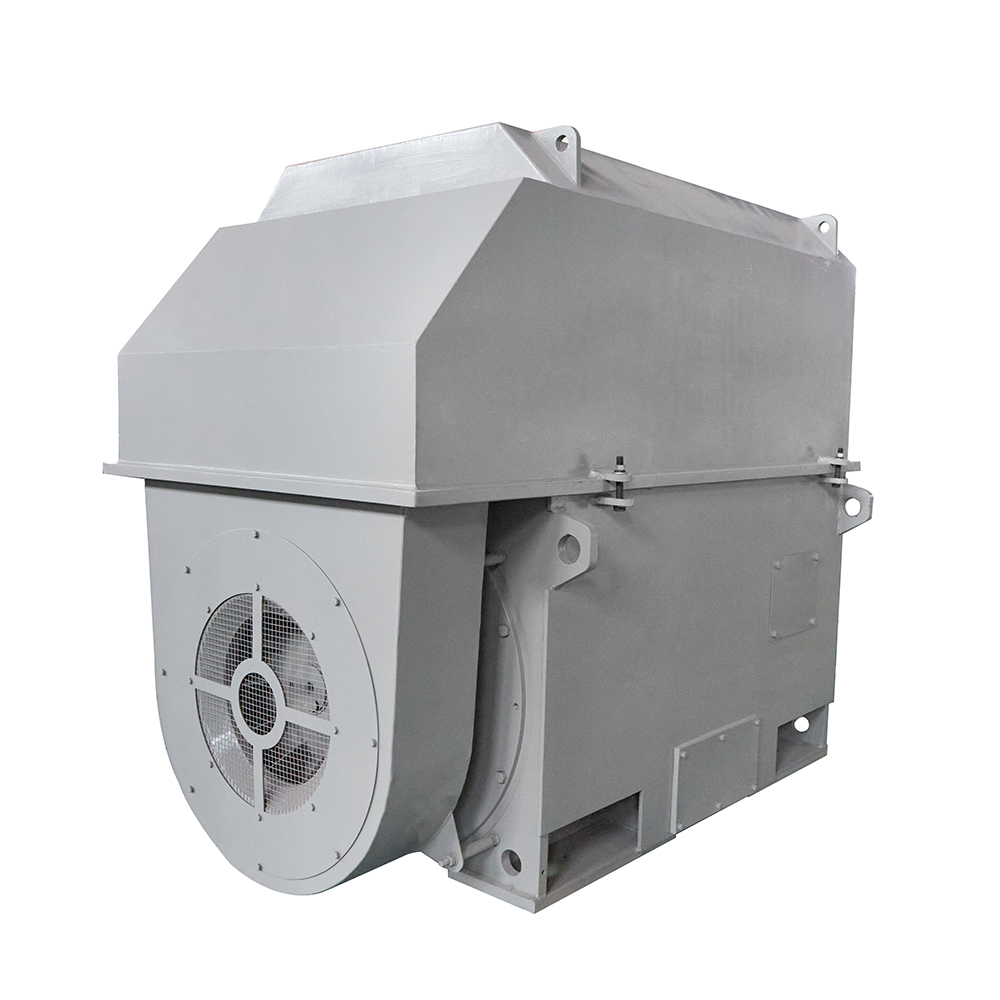

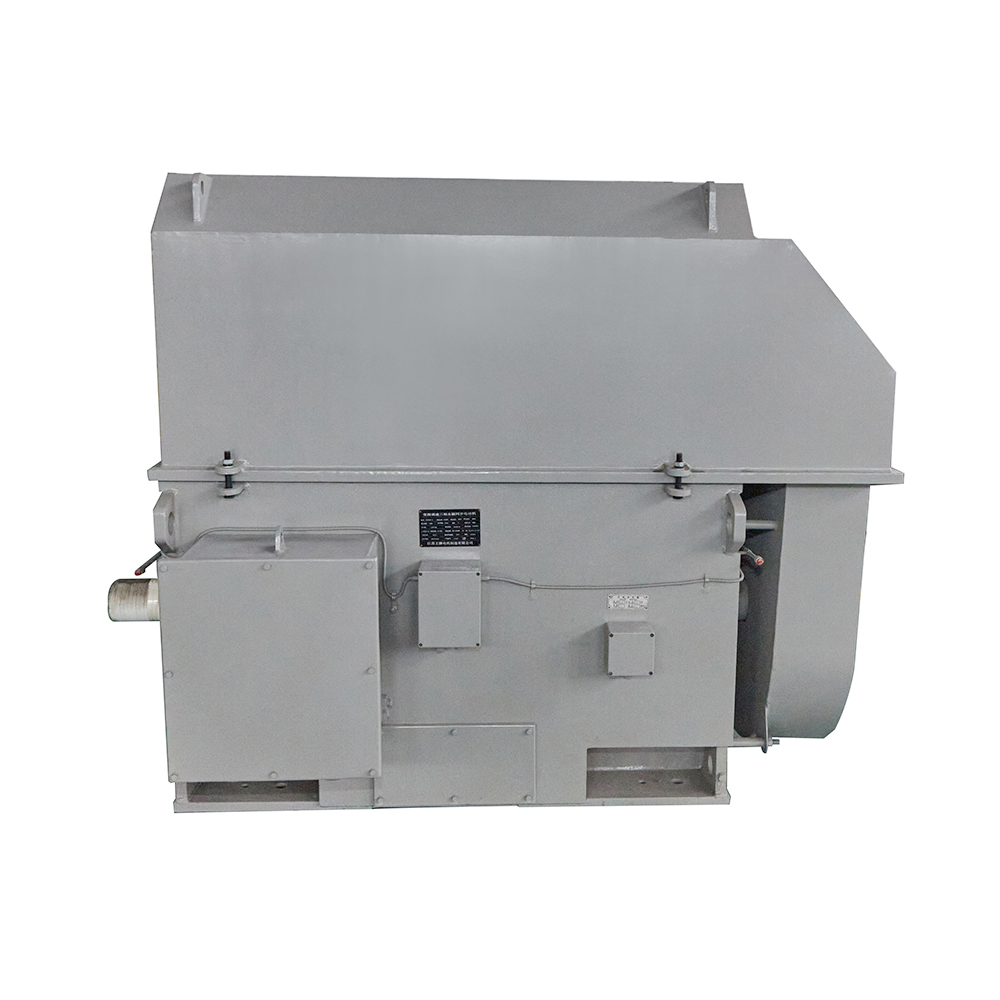

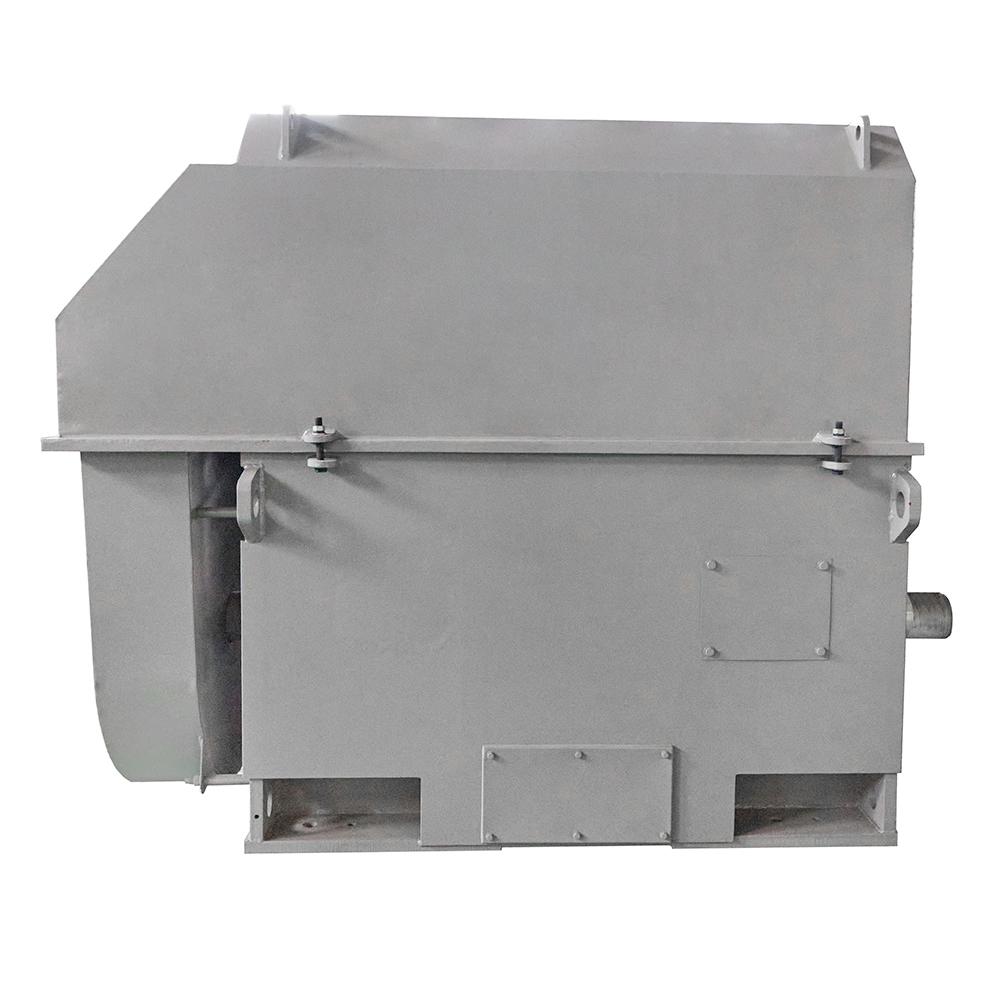

TYPKK high voltage permanent magnet frequency variable synchronous PMSM Motor

Application:Universa
Operating Speed:Adjust Speed
Operation Mode:Electric Motor
Magnetic Structure:Permanent Magnet
Functlon:Driving
Structure:Rotating Armature Type (Pole Fixed)

Availability:

Quantity:



Inquire Add to Basket

Model:
TYPKK series high voltage permanent magnet synchronous motor
Brand:
WPDJ

Motor specification

TYPKK series high voltage frequency variable permanent magnet synchronous motor （6KV）（失步转矩/额定转矩=1.8）
	Model	Rated power	Rated current	Rated speed	Rated torque	Efficiency	Power	Weight
	Model	kW	A	rpm	Nm	%	Factor	kg
1	TYPKK355-6-1500	185	19.4	1500(75Hz)	1178	95.5	0.96	1800
2		200	21		1273	95.6		1920
3		220	23.1		1401	95.6		1990
4		250	26.2		1592	95.7		2080
5		280	29.3		1783	95.7		2490
6		315	33		2006	95.8		2590
7	TYPKK400-6-1500	355	37.1		2260	95.8		2930
8		400	41.6		2547	96.3		3220
9		450	46.8		2865	96.4		3400
10		500	52		3183	96.4		3570
11		560	58.1		3565	96.6		3780
12	TYPKK450-6-1500	630	65.4		4011	96.6		4550
13		710	73.5		4520	96.8		4710
14		800	82.8		5093	96.9		4830
15		900	92.9		5730	97.1		5010
16	TYPKK500-6-1500	1000	103.2		6367	97.1		5800
17		1120	115.6		7131	97.1		5990
18		1250	129		7958	97.1		6270
19		1400	144.4		8913	97.2		6460
20	TYPKK560-6-1500	1600	164.8		10187	97.3		7680
21		1800	185.2		11460	97.4		7990
22		2000	205.6		12733	97.5		8190
23	TYPKK630-6-1500	2100	215.9		13370	97.5		9840
24		2240	230.3		14261	97.5		9990
25		2350	241.6		14962	97.5		10200
26		2500	257		15917	97.5		10420
27		2650	272.2		16872	97.6		10530
28		2800	287.6		17827	97.6		10790
29		2900	297.8		18463	97.6		11100
30		3150	323.5		20055	97.6		11350


TYPKK series high voltage frequency variable permanent magnet synchronous motor （6KV）（失步转矩/额定转矩=1.8）
	Model	Rated power	Rated current	Rated speed	Rated torque	Efficiency	Power factor	Weight
	Model	kW	A	rpm	Nm	%	Power factor	kg
1	TYPKK355-8-1000	185	19.4	1000 (50HZ)	1767	95.4	0.96	2290
2		200	21		1910	95.5		2470
3		220	23.1		2101	95.6		2590
4		250	26.2		2388	95.6		2800
5	TYPKK400-8-1000	280	29.3		2674	95.8		2960
6		315	32.9		3008	95.9		3190
7		355	37		3390	96.1		3370
8		400	41.6		3820	96.3		3680
9	TYPKK450-8-1000	450	46.8		4298	96.4		4490
10		500	51.8		4775	96.7		4650
11		560	58		5348	96.7		4810
12		630	65.2		6017	96.8		5000
13	TYPKK500-8-1000	710	73.4		6781	96.9		5480
14		800	82.6		7640	97.1		5700
15		900	92.9		8595	97.1		5810
16		1000	103.2		9550	97.1		6110
17	TYPKK560-6-1000	1120	115.6		10696	97.1		7230
18		1250	128.9		11938	97.2		7480
19		1400	144.2		13370	97.3		7690
20	TYPKK630-6-1000	1600	164.8		15280	97.3		8430
21		1800	185.2		17190	97.4		8790
22		2000	205.8		19100	97.4		9350
23		2100	215.9		20055	97.5		9610
24		2240	230.3		21392	97.5		9870

TYPKK series high voltage frequency variable permanent magnet synchronous motor （6KV）（失步转矩/额定转矩=1.8）
序号	Model	Rated powe		Rated speed	Rated torque	Efficiency	Power factor	Weight
序号	Model	kW	A	rpm	Nm	%	Power factor	kg
1	TYPKK400-8-750	185	19.4	750(50Hz)	2356	95.4	0.96	2830
2		200	21		2547	95.5		2950
3		220	23.1		2801	95.5		3100
4		250	26.2		3183	95.7		3250
5		280	29.3		3565	95.8		3540
6	TYPKK450-B-750	315	32.9		4011	96.1		4690
7		355	37		4520	96.1		4900
8		400	41.7		5093	96.2		5050
9		450	46.8		5730	96.3		5120
10	TYPKK500-B-750	500	51.9		6367	96.5		5400
11		560	58		7131	96.7		5500
12		630	65.2		8022	96.8		5660
13		710	73.5		9041	96.8		5880
14	TYPKK560-8-750	800	82.8		10187	96.9		6490
15		900	93.1		11460	96.9		6660
16		1000	103.2		12733	97.1		6850
17	TYPKK630-8-750	1120	115.6		14261	97.1		8170
18		1250	129		15917	97.1		8490
19		1400	144.4		17827	97.2		8880
20		1600	165		20373	97.2		9200
21		1800	185.6		22920	97.2		9650


TYPKK series high voltage frequency variable permanent magnet synchronous motor （6KV）（失步转矩/额定转矩=1.8）
序号	Model	Rated power KW	Rated current A	Rated speed rpm	Rated torque N.m	Effidiency %	Power factor	Weight Kg
1	TYPKK 400-8-600	185	19.5	600(40Hz)	2945	95.1	0.96	3500
2	TYPKK 400-8-600	200	21.1		3183	95.2		3630
3	TYPKK 450-8-600	220	23.1		3502	95.4		4620
4		250	26.2		3979	95.5		4740
5		280	29.4		4457	95.6		4920
6		315	33		5014	95.8		5050
7		355	37.1		5650	95.9		5150
8	TYPKK 500-8-600	400	41.7		6367	96.1		5400
9		450	46.9		7163	96.1		5600
10		500	52.1		7958	96.2		5700
11		560	58.3		8913	96.3		5870
12		630	65.5		10028	96.4		6070
13	TYPKK 560-8-600	710	73.8		11301	96.4		6680
14		800	83		12733	96.6		6900
15		900	93.2		14325	96.8		7140
16	TYPKK 630-8-600	1000	103.6		15917	96.8		8340
17		1120	115.9		17827	96.9		8740
18		1250	129.3		19896	96.9		9120
19		1400	144.5		22283	97.1		9600
20		1600	165.2		25467	97.1		9990

TYPKK series high voltage frequency variable permanent magnet synchronous motor (10KV) (失步转速/额定转矩=1.8）
序号	型号	额定功率 KW	额定电流 A	额定转速 RPM	额定转矩 N.m	额定效率 %	额定功率因素	重量 KG
序号	型号	额定功率 KW	额定电流 A	额定转速 RPM	额定转矩 N.m	额定效率 %	额定功率因素	重量 KG
1	TYPKK 400-6-1500	220	13.8	1500 (75HZ)	1401	95.6	0.96	2950
2		250	15.7		1592	95.6		3220
3		280	17.6		1783	95.6		3400
4		315	19.8		2006	95.7		3680
5		355	22.3		2260	95.9		3890
6	TYPKK 450-6-1500	400	25.1		2547	95.9		4550
7		450	28.2		2865	96.1		4710
8		500	31.2		3183	96.3		4830
9		560	34.9		3565	96.4		5150
10		6.3	39.3		4011	96.5		5380
11		710	44.2		4520	96.6		5590
12	TYPKK 500-6-1500	800	49.8		5093	96.7		6060
13		900	55.9		5730	96.8		6300
14		1000	62.1		6367	96.9		6430
15		1120	69.4		7131	97.1		6680
16	TYPKK 560-6-1500	1250	77.4		7958	97.1		7650
17		1400	86.7		8913	97.1		7950
18		1600	98.9		10187	97.3		8380
19	TYPKK 630-6-1500	1800	111.1		11460	97.4		9990
20		2000	123.5		12733	97.4		10860
21		2100	129.7		13370	97.4		11040
22		2240	138.2		14261	97.5		11150
23		2350	145		14962	97.5		11250
24		2500	154.1		15917	97.6		11380




TYPKK series high voltage frequency variable permanent magnet synchronous motor (10KV) (失步转速/额定转矩=1.8）
序号	型号	额定功率 KW	额定电流 A	额定转速 RPM	额定转矩 N.m	额定效率 %	额定功率因素	重量 KG
序号	型号	额定功率 KW	额定电流 A	额定转速 RPM	额定转矩 N.m	额定效率 %	额定功率因素	重量 KG
1	TYPKK 400-8-1000	185	11.7	1000 (HZ)	1767	95.1	0.96	3080
2		200	12.6		1910	95.2		3190
3		220	13.9		2101	95.3		3370
4		250	15.8		2388	95.4		3680
5	TYPKK 450-8-1000	280	17.6		2674	95.6		4490
6		315	19.8		3008	95.7		4650
7		355	22.3		3390	95.7		4810
8		400	25		3820	96.1		5000
9	TYPKK 500-8-1000	450	28.2		4298	96.1		5150
10		500	31.3		4775	96.2		5360
11		560	34.9		5348	96.5		5880
12		630	39.2		6017	96.6		6110
13		710	44.2		6781	96.6		6230
14	TYPKK 560-6-1000	800	49.8		7640	96.7		6480
15		900	55.9		8595	96.9		7350
16		1000	62.1		9550	96.9		7590
17		1120	69.4		10696	97.1		7900
18		1250	77.4		11938	97.1		8490
19	TYPKK 630-6-1000	1400	86.5		13370	97.3		9500
20		1600	98.8		15280	97.4		9780
21		1800	111.1		17190	97.4		9980
22		2000	123.5		19100	97.4		10200

TYPKK series high voltage frequency variable permanent magnet synchronous motor (10KV) (失步转速/额定转矩=1.8）
序号	Model	Rated power KW	Rated current A	Rated spoed RPM	Rated torque N.m	Efficiency %	Power factor	Weight KG
序号	Model	Rated power KW	Rated current A	Rated spoed RPM	Rated torque N.m	Efficiency %	Power factor	Weight KG
1	TYPKK 450-8-750	220	13.9	750(50Hz)	2801	95.4	0.96	4760
2		250	15.7		3183	95.5		4820
3		280	17.6		3565	95.6		4960
4		315	19.8		4011	95.7		5160
5	TYPKK500-8-750	355	22.3		4520	95.8		5560
6		400	25		5093	96.1		5730
7		450	28.2		5730	96.1		5910
8		500	31.3		6367	96.2		6060
9		560	35		7131	96.3		6190
10	TYPKK560-8-750	630	39.2		8022	96.6		6450
11		710	44.2		9041	96.7		6580
12		800	49.7		10187	96.8		6680
13		900	55.9		11460	96.8		7140
14	TYPKK630-8-750	1000	62.1		12733	96.9		8450
15		1120	69.5		14261	96.9		8720
16		1250	77.4		15917	97.1		9450
17		1400	86.7		17827	97.1		9530


TYPKK series high voltage frequency variable permanent magnet synchronous motor (10KV) (失步转速/额定转矩=1.8）
序号	Model	额定功率 KW	额定电流 (A)	额定转速 RPM	额定转矩 N.m	额定效率 %	额定功率因素	重量 KG
序号	Model	额定功率 KW	额定电流 (A)	额定转速 RPM	额定转矩 N.m	额定效率 %	额定功率因素	重量 KG
1	TYPKK 450-8-600	220	13.9	600(40Hz)	3502	95.1	0.96	5400
2		250	15.8		3979	95.2		5600
3		280	17.7		4457	95.4		5700
4		315	19.8		5014	95.5		5870
5		355	22.3		5650	95.8		6070
6		400	25.1		6367	95.8		6210
7		450	28.2		7163	95.9		6350
8	TYPKK 560-8-600	500	31.3		7958	96.1		6690
9		560	35		8913	96.1		6940
10		630	39.3		10028	96.4		7190
11		710	44.2		11301	96.5		7430
12	TYPKK 630-8-600	800	49.9		12733	96.5		8740
13		900	56		14325	96.6		9050
14		1000	62.2		15917	96.7		9380
15		1120	69.5		17827	96.9		9650
16		1250	77.6		19896	96.9		9960
