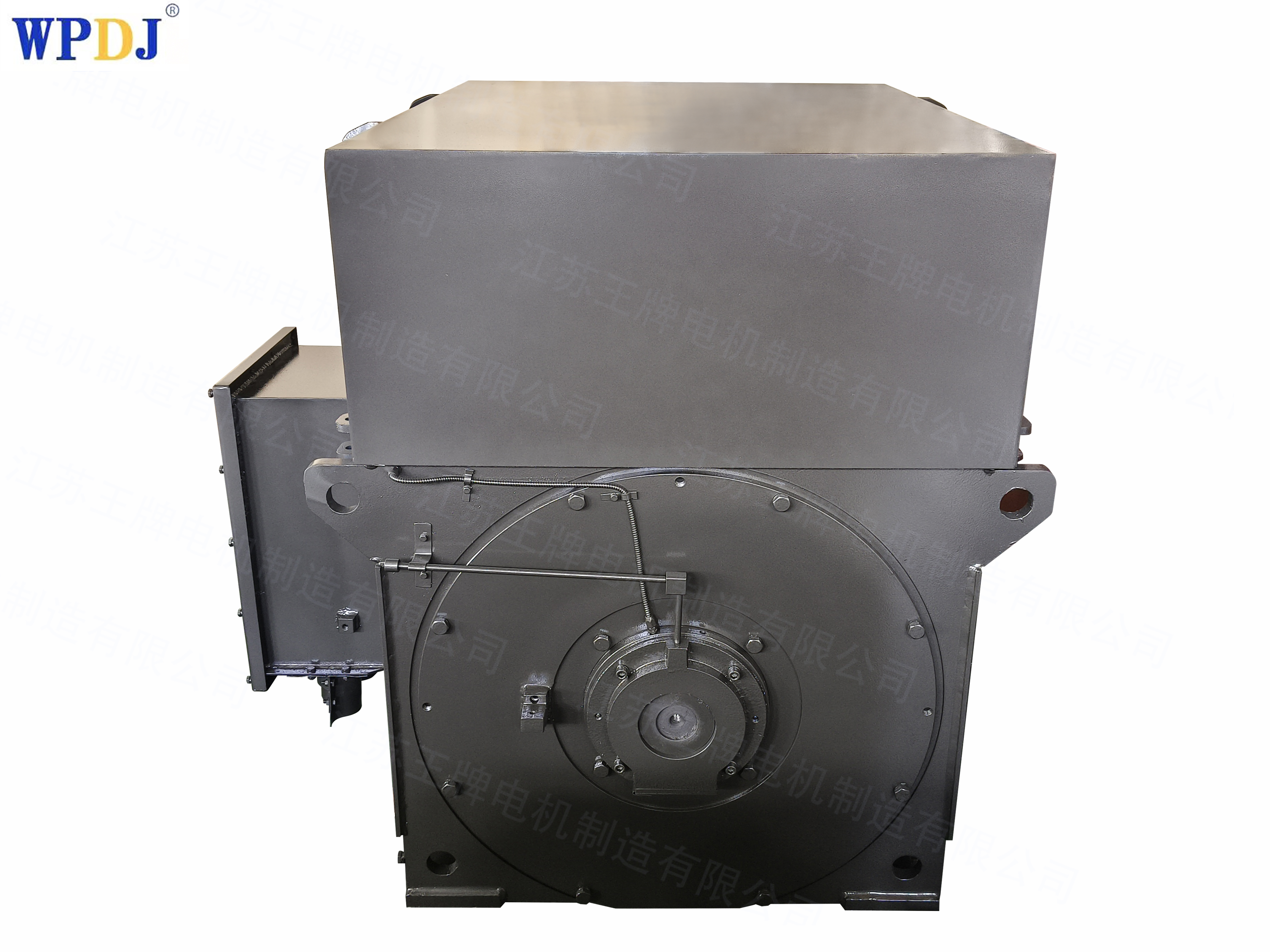

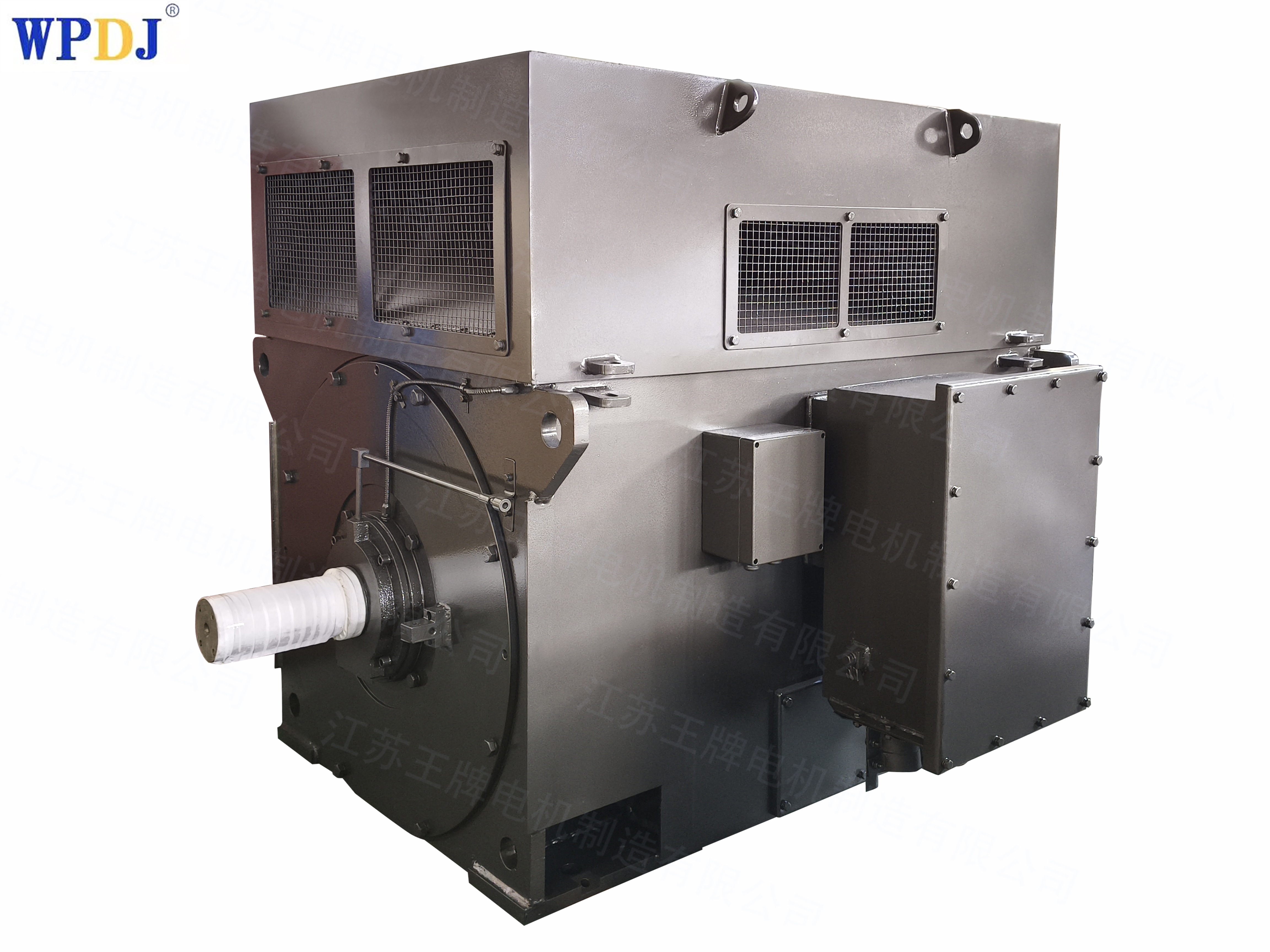

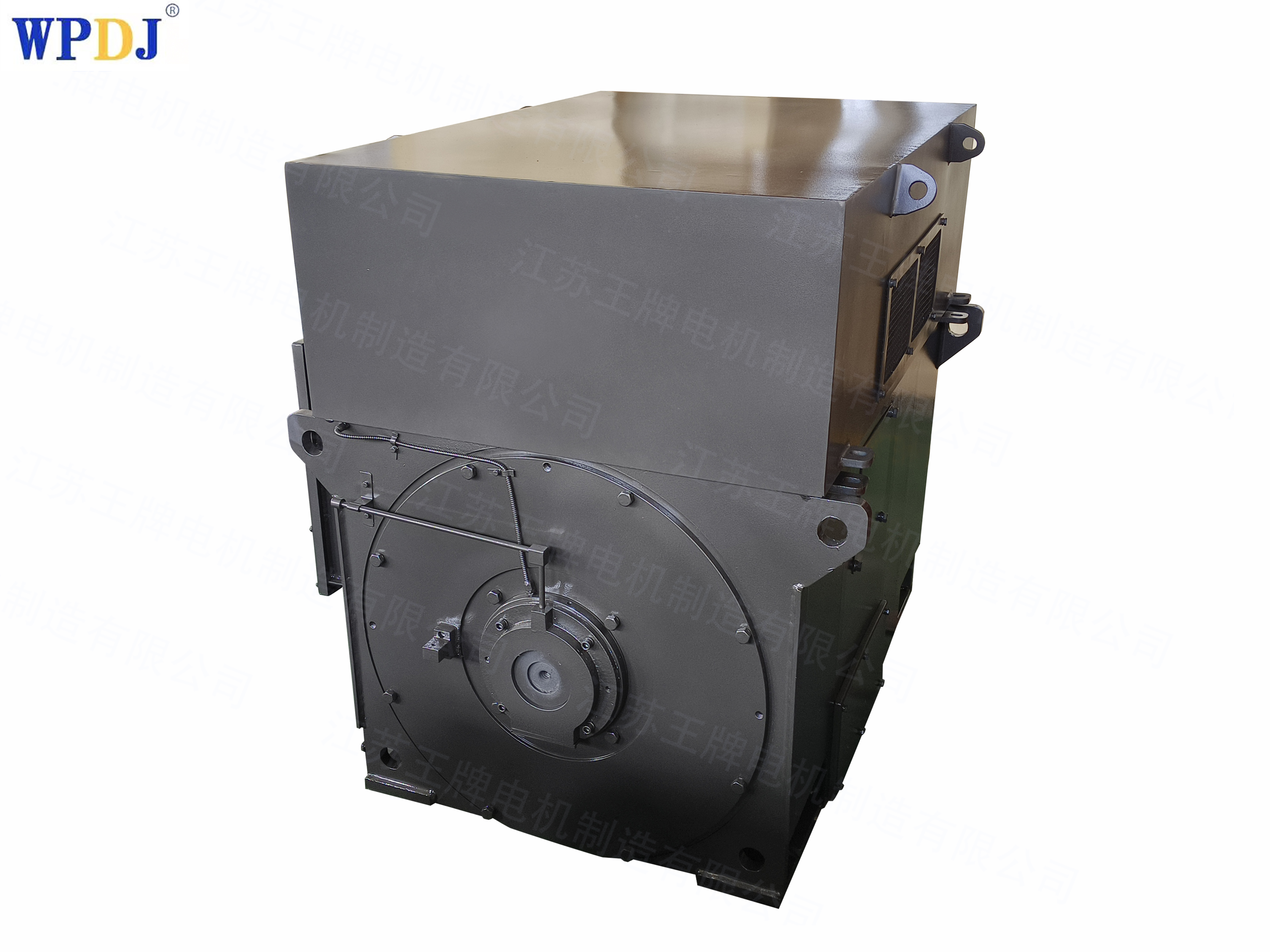

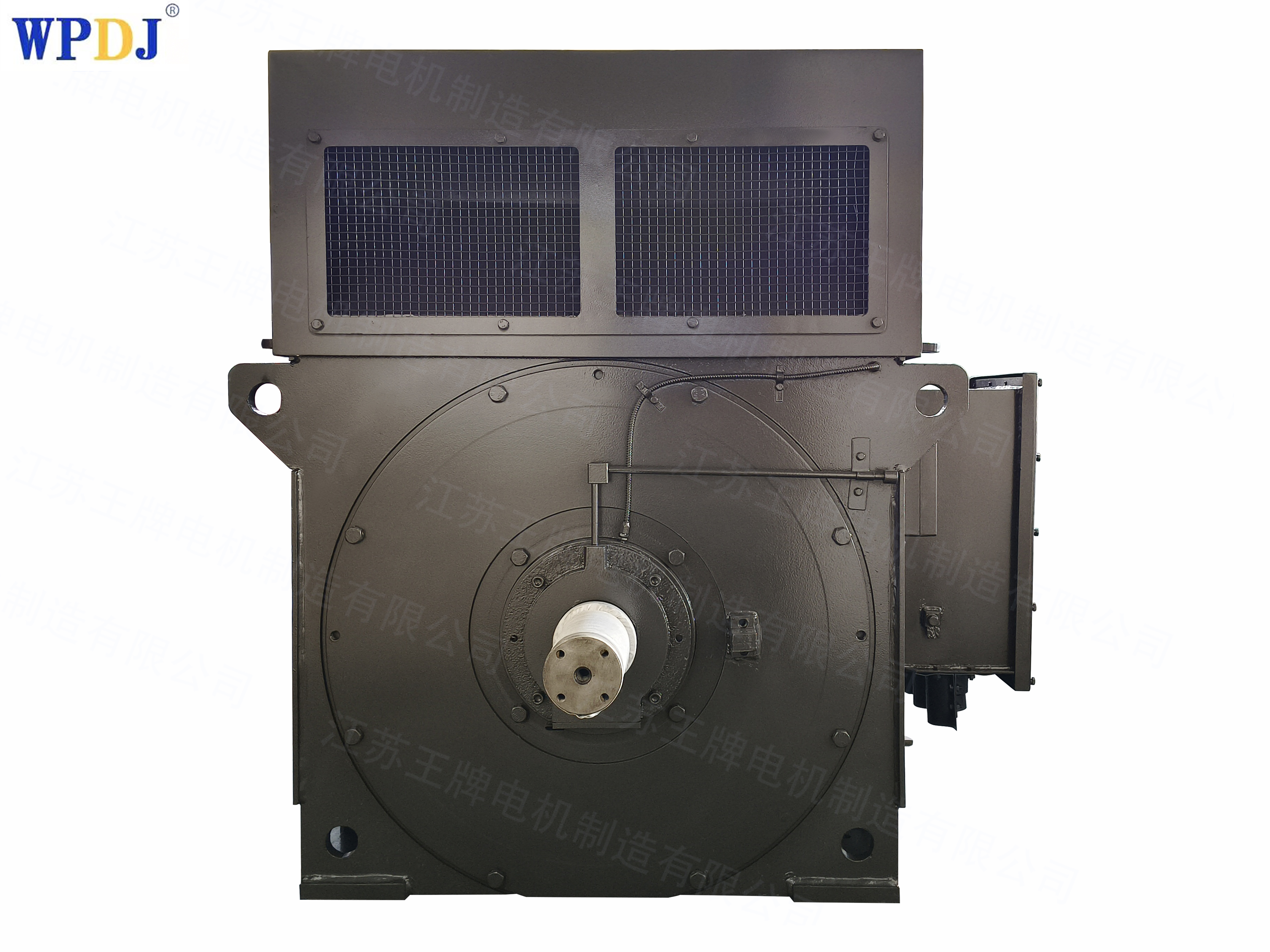

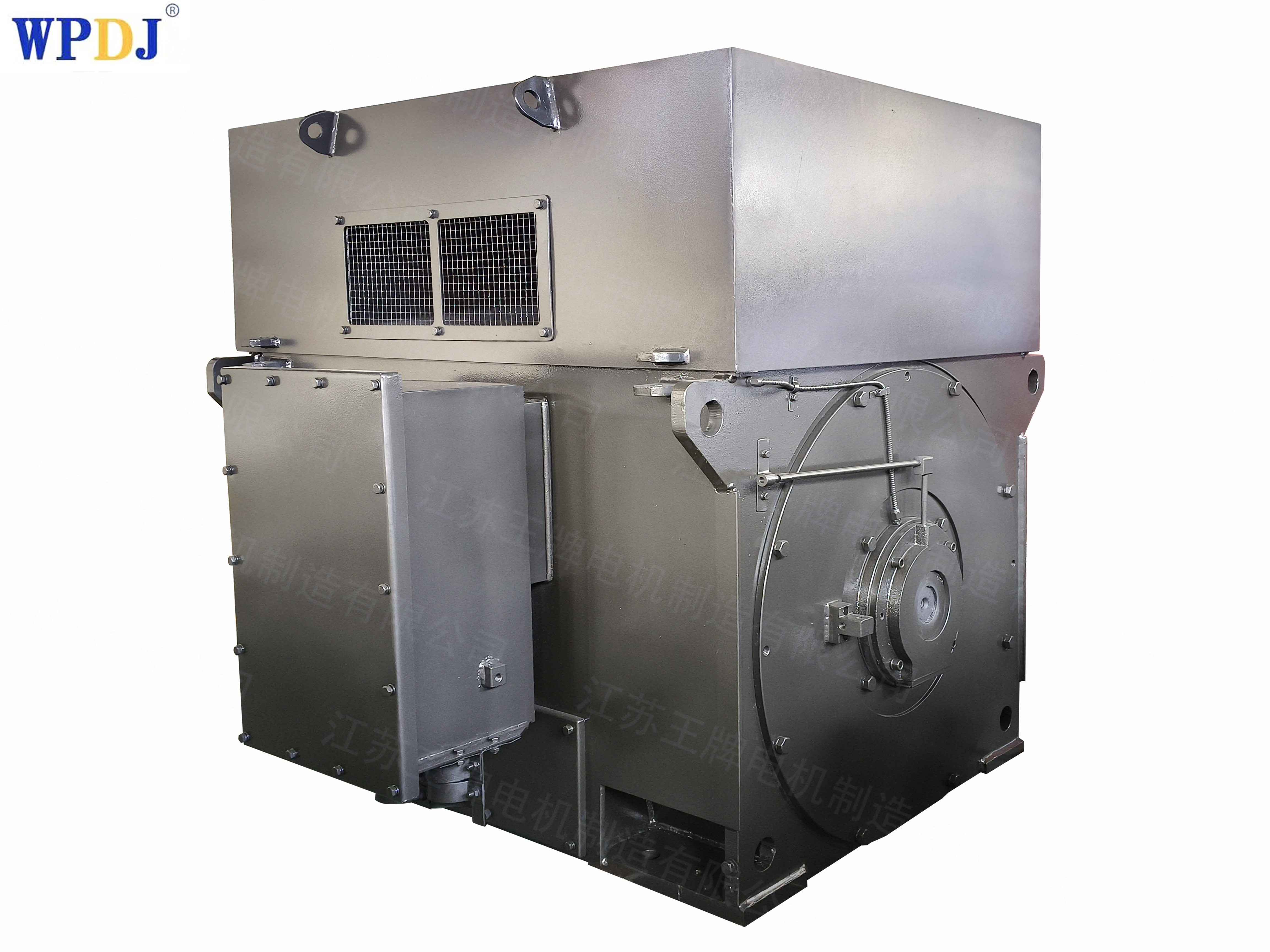

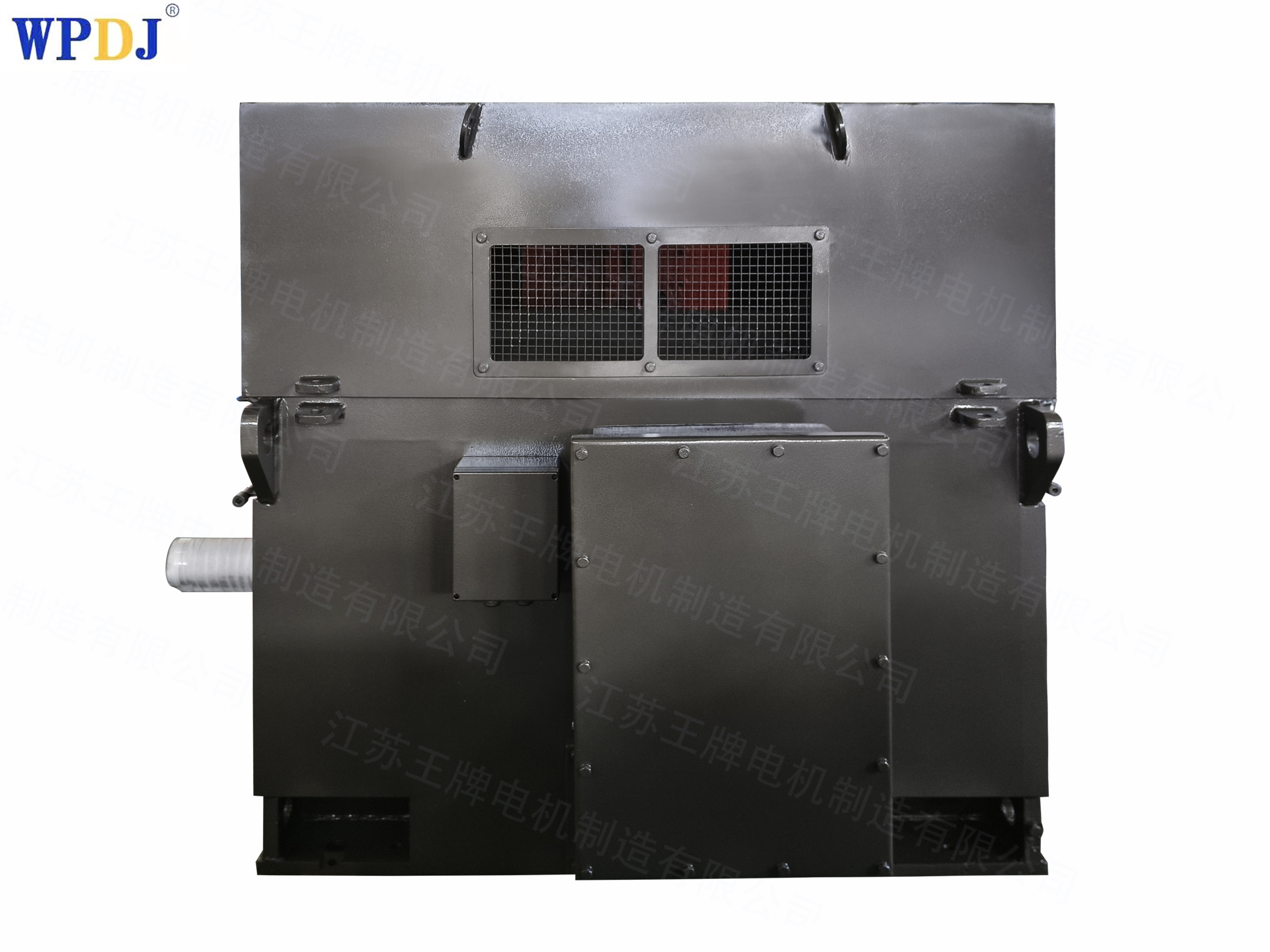

Y series squirrel cage high voltage motor

Power: 220kw - 3150KW
Voltage: 6KV, 10KV
Speed: 500RPM/590RPM/740RPM/990RPM/1500RPM/3000RPM
Protection Degree: IP23
Cooling method: IC01
Insulation Class: F
Duty: S1
Package: Export Wooden Package

Availability:

Quantity:



Inquire Add to Basket

Model:
Y series squirrel cage high voltage motor
Brand:
WPDJ

Y series squirrel cage high voltage motors are engineered for power plant boiler auxiliaries, particularly induced draft and forced draft fans that run continuously at high load. ID fans handle hot, abrasive flue gas; FD fans supply combustion air under pressure — both require motors with high reliability, stable operation and easy maintenance over decades of service. The squirrel cage rotor, fan-cooled enclosure and rigid construction meet these demands with minimal downtime. Available 220kW-2500kW in 3KV/6KV/10KV, IP44/IP54, Class F insulation, S1 duty. Typical applications: boiler ID/FD fans, primary air fans, circulating water pumps and feed pumps in thermal power plants, plus similar duty in petrochemical plants. Proven in utility service worldwide, each motor ships with IEC 60034 test reports and full technical documentation.

Y series squirrel cage high voltage motor (6000V)

型号Type	额定功率Rated Output (kW)	定子电流Rated Current (A)	转速 Speed (r/min)	郊率Efficiency %	功率因数Power Favtor (cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩Mst Mn	堵转电流额定电流Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负载 Jload (Kgm2)	重量 Weight (Kg)
型号Type	额定功率Rated Output (kW)	定子电流Rated Current (A)	转速 Speed (r/min)	郊率Efficiency %	功率因数Power Favtor (cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩Mst Mn	堵转电流额定电流Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负载 Jload (Kgm2)	Y	YKS
Y3551-2	220	26.5	2970	92.8	0.86	1.8	0.6	7.0	2.2	22	2010	2250
Y3552-2	250	30.1		92.9					2.51	24	2050	2290
Y3553-2	280	33.7		93.1					2.7	26	2120	2360
Y3554-2	315	37.7		93.4					3.0	27	2160	2400
Y3555-2	355	42.4		93.7					3.4	27.5	2250	2490
Y3556-2	400	47.6		94.1					3.7	28	2260	2500
Y4001-2	450	53.3	2976	94.4	0.87				4.8	32	2800	3080
Y4002-2	500	58.5		94.6					5.2	33	2880	3160
Y4003-2	560	65.4		94.7					6.0	34	2990	3270
Y4004-2	630	73.4		94.9					6.4	35	3090	3370
Y4501-2	710	82.7		95.0					8.4	42	3580	4230
Y4502-2	800	92.9		95.2					9.5	44	3740	4390
Y4503-2	900	104.5		95.3					10.5	44	3900	4550
Y4504-2	1000	114.6		95.4					11.6	48	4060	4710
Y5001-2	1120	128.2	2980	95.5	0.88				15.9	90	4100	4860
Y5002-2	1250	143.0		95.6					17.7	100	4300	5000
Y5003-2	1400	160.0		95.7					19.9	101	4600	5300
Y5004-2	1600	182.6		95.8					22.0	102	4900	5600
Y5601-2	1800	205.2	2981	95.9					30.1	106	8000	8750
Y5602-2	2000	227.8		96.0					33.7	107	8250	9000
Y5603-2	2240	254.9		96.1					37.8	108	8500	9250
Y6301-2	2500	281.0	2982	96.2	0.89				46.4	118	9250	10050
Y6302-2	2800	314.4		96.3					50.7	123	9650	10450
Y6303-2	3150	353.7		96.3					56.1	130	10050	10850
Y3551-4	185	22.8	1478	93.1	0.84		0.8	6.5	2.5	56	1950	2350
Y3552-4	200	24.6		93.2	0.84				2.7	68	1980	2380
Y3553-4	220	26.7		93.3	0.86				3.0	78	2010	2410
Y3554-4	250	30.3		93.4					3.5	88	2040	2440
Y3555-4	280	33.5		93.5					3.8	97	2090	2490
Y3556-4	315	37.7		93.6					4.0	108	2130	2530

型号Type	额定功率RatedOutput(kW)	定子电流RatedCurrent(A)	转速Speed(r/min)	郊率Efficiency%	功率因数PowerFavtor(cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负載Jload (Kgm2)	重量 Weight (Kg)
型号Type	额定功率RatedOutput(kW)	定子电流RatedCurrent(A)	转速Speed(r/min)	郊率Efficiency%	功率因数PowerFavtor(cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负載Jload (Kgm2)	Y	YKS
Y4001-4	355	42.3	1485	93.8	0.86	1.8	0.8	6.5	5.8	120	2620	3070
Y4002-4	400	47.6		94.0					6.0	133	2700	3150
Y4003-4	450	53.5		94.2					6.5	147	2800	3250
Y4004-4	500	58.6		94.3					7.0	161	2890	3340
Y4005-4	560	65.5		94.5					8.0	178	3010	3460
Y4501-4	630	73.5		94.8	0.87		0.8	6.5	11.0	197	3160	3960
Y4502-4	710	82.7		95.0					12.0	218	3300	4100
Y4503-4	800	93.0		95.1					13.0	241	3440	4240
Y4504-4	900	104.6		95.2					14.0	266	3580	4380
Y5001-4	1000	116.1		95.3	0.88		0.7	6.5	24.0	290	4400	5310
Y5002-4	1120	128.4		95.4					26.0	318	4500	5410
Y5003-4	1250	143.1		95.5					30.0	347	4600	5510
Y5004-4	1400	160.1		95.6					32.0	380	4800	5710
Y5601-4	1600	180.8	1488	95.7	0.89		0.6	6.5	57.0	420	6225	7150
Y5602-4	1800	203.1		95.8					60.0	460	6720	7640
Y5603-4	2000	225.5		95.9					66.0	498	7150	8100
Y6301-4	2240	252.3		96.0					102.0	540	9250	10050
Y6302-4	2500	281.3		96.1					112.0	584	9650	10650
Y6303-4	2800	314.7		96.2					116.0	631	10450	11400
Y3553-6	185	23.7	987	92.6	0.82		0.8	6.0	5.2	160	2060	2460
Y3554-6	200	25.6		92.8					5.6	190	2100	2500
Y3555-6	220	27.8		93.0					6.0	210	2140	2540
Y3556-6	250	31.4		93.3					7.0	236	2170	2570
Y4002-6	280	34.7	988	93.5	0.83		0.8	6.0	10.0	262	2590	3040
Y4003-6	315	39.0		93.7					11.0	291	2690	3140
Y4004-6	355	43.8		93.9					11.5	324	2770	3220
Y4005-6	400	49.3		94.0					12.0	361	2980	3430
Y4501-6	450	54.7		94.3	0.85				15.0	401	3110	3910
Y4502-6	500	59.9		94.5					16.0	440	3240	4040
Y4503-6	560	66.9		94.7					17.0	487	3370	4170
Y4504-6	630	75.2		94.8					20.0	540	3490	4290

型号Type	额定功率Rated Output (kW)	定子电流Rated Current (A)	转速 Speed (r/min)	郊率Efficiency %	功率因数Power Favtor (cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负载 Jload （Kgm2)	重量 Weight (Kg)
型号Type	额定功率Rated Output (kW)	定子电流Rated Current (A)	转速 Speed (r/min)	郊率Efficiency %	功率因数Power Favtor (cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负载 Jload （Kgm2)	Y	YKS
Y5001-6	710	84.6	990	95.0	0.85	1.8	0.7	6.0	32.0	599	4100	5010
Y5002-6	800	95.3		95.1					34.0	665	4200	5110
Y5003-6	900	107.0		95.2					40.0	736	4500	5410
Y5004-6	1000	118.8		95.3					47.0	805	4700	5610
Y5601-6	1120	131.4		95.4	0.86			6.5	70.0	886	6185	7000
Y5602-6	1250	146.5		95.5					75.0	972	6415	7300
Y5603-6	1400	163.9		95.6					82.0	1068	6670	7500
Y6301-6	1600	187.1	991	95.7	0.86				117.0	1192	9300	10300
Y6302-6	1800	210.0		95.8					132.0	1312	9720	10720
Y6303-6	2000	233.3		95.9					143.0	1428	10550	11550
Y4001-8	185	25.0	741	92.6	0.78		0.8	5.5	9.0	383	2480	2930
Y4002-8	200	26.6		92.8					10.0	401	2570	3020
Y4003-8	220	29.2		92.9					11.0	424	2650	3100
Y4004-8	250	32.7		93.0					12.0	477	2760	3210
Y4005-8	280	36.6		93.2					13.0	529	2890	3340
Y4501-8	315	40.6	742	93.4	0.80				16.0	588	3140	3940
Y4502-8	355	45.7		93.5					17.0	656	3290	4090
Y4503-8	400	51.3		93.7					18.0	731	3340	4140
Y4504-8	450	57.0		93.8					19.0	813	3470	4270
Y5001-8	500	63.0		94.3	0.82				30.0	894	4000	4910
Y5002-8	560	69.6		94.4					34.0	988	4150	5060
Y5003-8	630	78.2		94.5					38.0	1098	4350	5260
Y5004-8	710	88.1		94.6					42.0	1222	4500	5410
Y5601-8	800	96.8	743	94.7	0.84		0.7	6.0	87.0	1357	6130	7100
Y5602-8	900	108.8		94.8					92.0	1505	6325	7250
Y5603-8	1000	120.7		94.9					102	1650	6473	7330
Y6301-8	1120	135.1	744	95.0	0.84				137	1820	9620	10620
Y6302-8	1250	150.6		95.1					151	2001	10200	11200
Y6303-8	1400	168.5		95.2					160	2204	10570	11570
Y6304-8	1600	192.3		95.3					168	2468	10920	11920

型号Type	额定功率Rated Output (kW)	定子电流Rated Current (A)	转速 Speed (r/min)	郊率Efficiency %	功率因数Power Favtor (cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负載Jload (Kgm2)	重量 Weight (Kg)
型号Type	额定功率Rated Output (kW)	定子电流Rated Current (A)	转速 Speed (r/min)	郊率Efficiency %	功率因数Power Favtor (cosΦ)	最大转矩额定转矩Mmax Mn	堵转转矩额定转矩 Mst Mn	堵转电流额定电流 Ist Mn	转动惯量 J_电机Jmotor (Kgm2)	转动惯量 J_负載Jload (Kgm2)	Y	YKS
Y4004-10	185	25.9	593	91.7	0.75	1.8	0.8	5.5	11.0	529	2760	3210
Y4005-10	200	27.9		91.9	0.75				12.0	551	2890	3340
Y4501-10	220	29.9		92.1	0.77				19.0	729	3060	3860
Y4502-10	250	33.4		92.3	0.78				20.0	820	3140	3940
Y4503-10	280	37.3		92.5	0.78				22.0	910	3270	4070
Y4504-10	315	41.4		92.6	0.79				24.0	1014	3330	4130
Y4505-10	355	46.6		92.8	0.79				25.0	1131	3450	4250
Y5001-10	400	51.6		93.3	0.80				36.0	1261	4000	4910
Y5002-10	450	58.0		93.4					38.0	1404	4150	5060
Y5003-10	500	64.3		93.6					42.0	1544	4300	5210
Y5004-10	560	71.9		93.7					45.0	1711	4450	5315
Y5005-10	630	80.8		93.8					52.0	1902	4650	5500
Y5601-10	710	88.6		94.0	0.82		0.7	6.0	79.0	2116	6160	7100
Y5602-10	800	99.7		94.2					88.0	2355	6360	7220
Y5603-10	900	112.0		94.3					93.0	2615	6570	7510
Y6301-10	1000	124.3	594	94.4	0.82				140	2870	9620	10620
Y6302-10	1120	138.9		94.6					152	3170	10200	11200
Y6303-10	1250	154.7		94.8					167	3489	10570	11570
Y6304-10	1400	173.1		94.9					175.0	3850	10930	11930
Y4502-12	185	27.2	494	90.9	0.72		0.8	5.5	19.0	997	3170	3970
Y4503-12	200	29.3		91.1	0.72				21.0	1078	3260	4060
Y4504-12	220	31.7		91.4	0.73				24.0	1135	3340	4140
Y4505-12	250	35.9		91.7	0.73				26.0	1277	3410	4210
Y5001-12	280	39.3		92.7	0.74				40.0	1418	4000	4900
Y5002-12	315	43.6		92.8	0.75				42.0	1580	4100	5000
Y5003-12	355	49.0		93.0					43.0	1764	4250	5150
Y5004-12	400	55.0		93.3					47.0	1967	4400	5300
Y5005-12	450	61.8		93.4					50.0	2191	4550	5450
Y5601-12	500	65.0	495	93.7	0.79		0.7	6.0	103.0	2411	6160	7060
Y5602-12	560	72.7		93.8					114.0	2673	6360	7310
Y5603-12	630	81.7		93.9					127.0	2974	6570	7430
Y6301-12	710	92.0		94.0					191.0	3312	9600	10600
Y6302-12	800	103.4		94.2					208.0	3688	10050	11050
Y6303-12	900	116.2		94.3					227.0	4098	10450	12450
Y6304-12	1000	129.0		94.4					239.0	4502	10820	12820

Y series squirrel cage high voltage motor (6000V)

中心高 Shaft Center Height(mm)	同步转速(转/分)Synchronous speed(r/min)
	3000	1500	1000	750	600	500
	功率(千瓦)Power(kW)
355	220 250 280 315 355 400	185 200 220 250 280 315	185 200 220 250
400	450 500 560 630	355 400 450 500 560	280 315 355 400	185 200 220 250 280	185 200
450	710 800 900 1000	630 710 800 900	450 500 560 630	315 355 400 450	220 250 280 315 355	185 200 220 250
500	1120 1250 1400 1600	1000 1120 1250 1400	710 800 900 1000	500 560 630 710	400 450 500 560 630	280 315 355 400 450
560	1800 2000 2240	1600 1800 2000	1120 1250 1400	800 900 1000	710 800 900	500 560 630
630	2500 2800 3150	2240 2500 2800	1600 1800 2000	1120 1250 1400 1600	1000 1120 1250 1400	710 800 900 1000

Y series squirrel cage high voltage motor (10000V)

中心高 Shaft Center Height(mm)	同步转速(转/分)Synchronous speed(r/min)
	3000	1500	1000	750	600	500
	功率(千瓦)Power(kW)
450	220 250 280 315 355 400 450 500 560 630	220 250 280 315 355 400 450 500 560 630	220 250 280 315 355 400 450	220 250 280









500	710 800 900 1000 1120	710 800 900 1000 1120	500 560 630 710 800	315 355 400 450 500 560	220 250 280 315 355 400	220 250 280





560	1250 1400 1600	1250 1400 1600	900 1000 1120 1250	630 710 800 900	450 500 560 630 710	315 355 400 450 500





630	1800 2000 2240	1800 2000 2240	1400 1600 1800	1000 1120 1250	800 900 1000 1120	560 630 710 800
