Z2 series dc motor

Power: 0.4kw – 125KW
Voltage: Normal 110V, 220V
Speed: 3000r/min, 1500r/min, 1000r/min, 750r/min, 600r/min
Protection Degree: IP21S
Insulation Class: B
Duty: S1
Package: Export Wooden Package

Availability:

Quantity:



Inquire Add to Basket

Model:
Z4 series dc motor
Brand:
WPDJ

Z2 Series motors are small DC motors designed for general industrial use, suitable for applications such as metal cutting machine tools, papermaking, dyeing and weaving, printing, and cement production. The generators can serve as power sources, for lighting, or other constant voltage supplies.

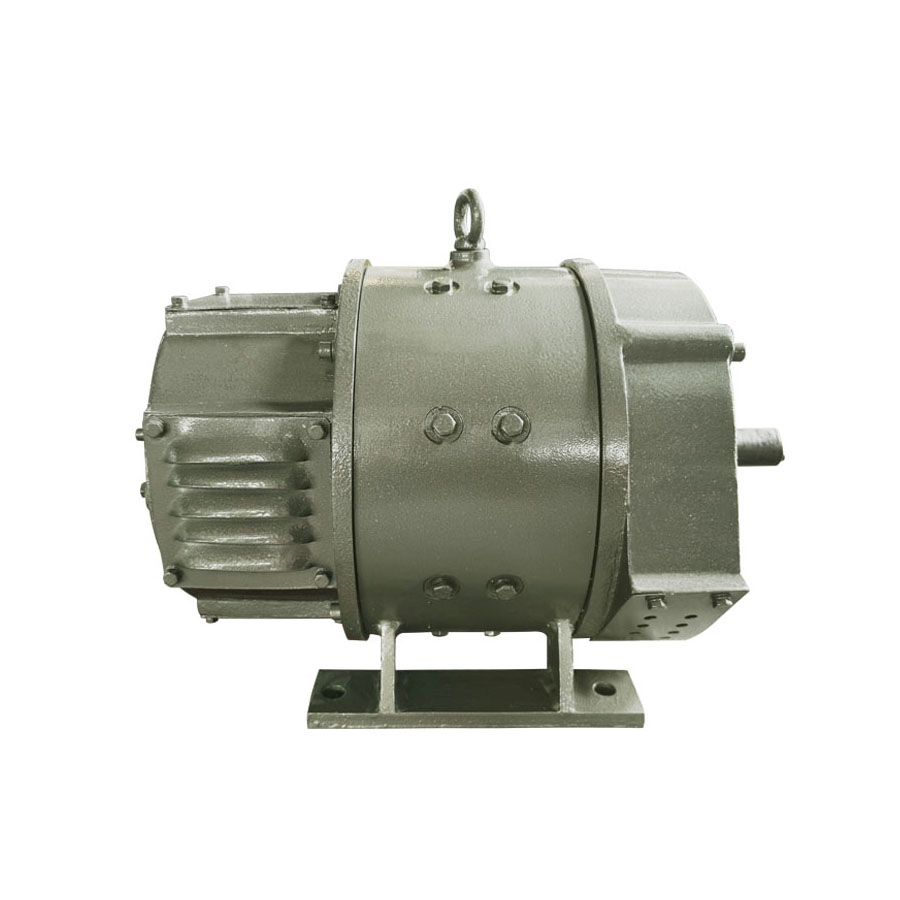

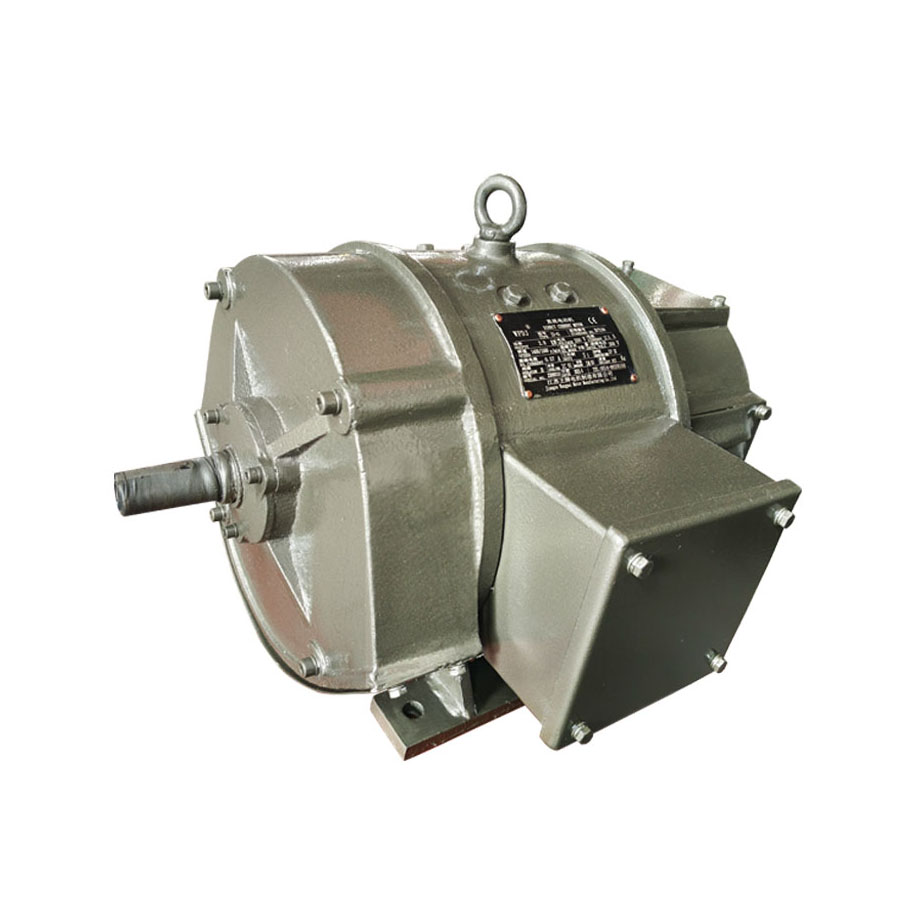

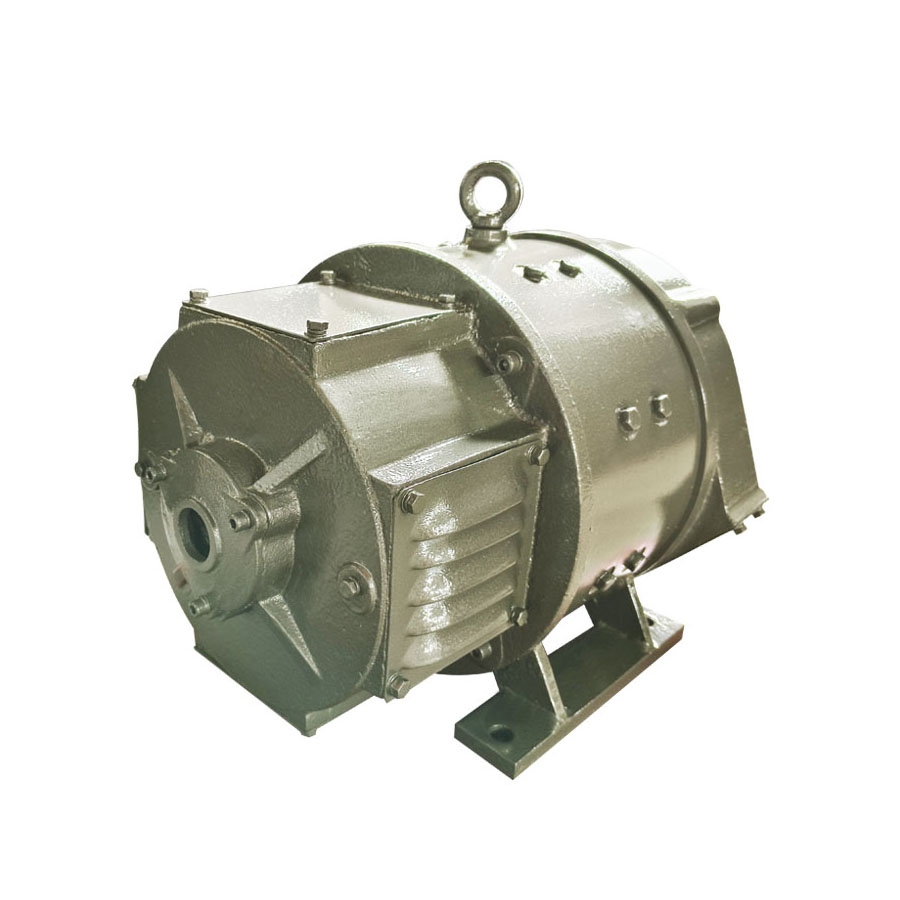

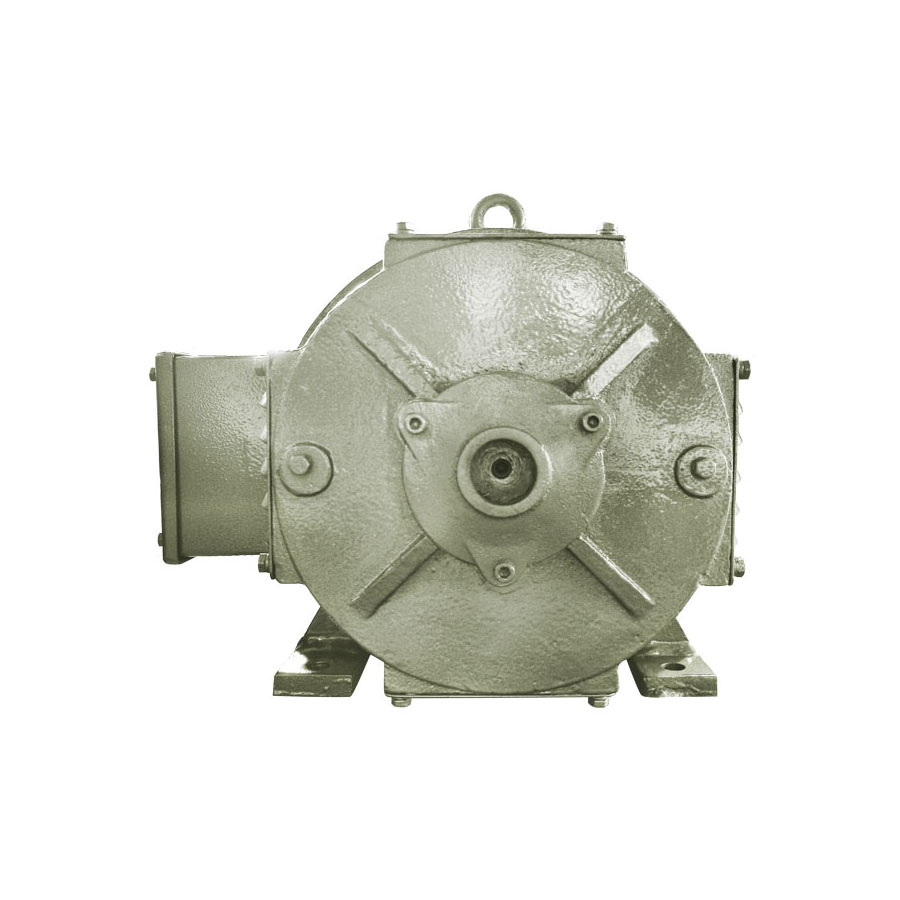

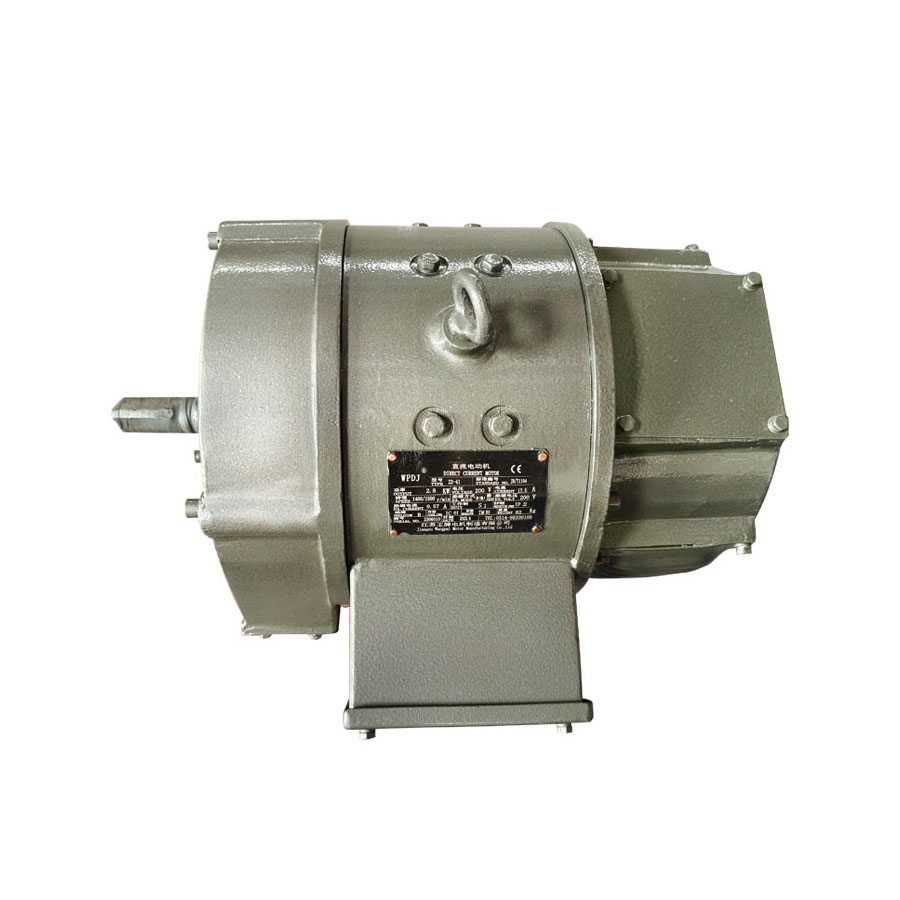

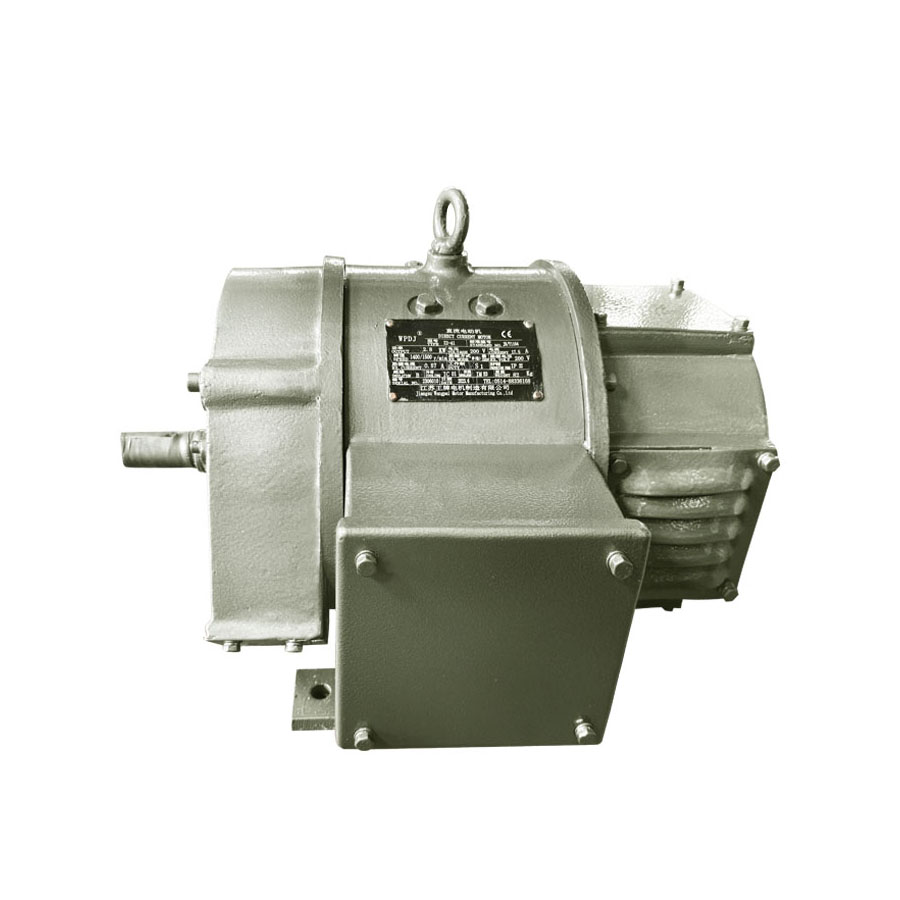

Z2-41 2.8KW 45°

I. Overview

Z2 series small DC motors comply with the standards set by the Ministry of Machinery Industry of the People's Republic of China, JB1104-68, for small DC motors.

The Z2 series consists of 11 frame sizes, each with two core lengths. They are manufactured as DC motors, DC generators, and DC voltage-regulating generators, suitable for normal working environments. The motors are used for general transmission purposes, the generators as general DC power sources, and the voltage-regulating generators for battery groups.

Excitation Methods: The motors are either shunt-wound or compound-wound with a small stable winding. The generators are either compound-wound or separately excited (for generators rated at 230 volts). The voltage-regulating generators are shunt-wound (without a series winding). The separately excited voltage for the motors is available in only one option: 110 volts.

Motors can be driven by V-belts, spur gears, or flexible couplings, and do not bear axial thrust on the motor shaft.

Z2 series motors can be manufactured for use in tropical areas with moisture, mold, and smoke resistance capabilities (TH type), which require separate agreements.

Z2 series 2-11# motors can also be derived as ZYS-A type speedometers.

The basic series of Z2 series motors are self-ventilated motors. When reducing the external armature voltage for downward speed adjustment, the torque decreases proportionally with the speed.

Z2 series 6-11# motors can also be manufactured with an external fan structure, with the fan mounted above the shaft end cover.

External fan models for Z2 series 6-11# motors are listed in Table 1.

Z2 series motors are small DC motors designed for general industrial use, with the motor suitable for power transmission with a constant power speed regulation range not exceeding 2:1 and overload capacity not exceeding 1.5 times the rated torque. They can be used in industries such as metal cutting machine tools, papermaking, dyeing and weaving, printing, and cement production. The generators can serve as power sources, for lighting, or other constant voltage supplies.

II. Structure and Installation Types

DC motors can be manufactured in the structural types shown in Table 2.

The motor has a unidirectional round shaft extension, and upon request, can be manufactured with a double shaft extension. Motors of frame sizes 1-6 can transmit rated torque using the transmission methods described in Overview point 4, whereas for frame sizes 7-11, the commutator end shaft extension is driven by a coupling, capable of transmitting rated torque, and using V-belt or spur gear transmissions can only transmit 50% of the rated torque.

For horizontal motors, the position of the terminal box, when viewed from the shaft end, is on the left side of the frame. Upon request, the position of the terminal box can be made on the right side of the frame, but must be specified when ordering.

Z2 series DC motors can operate normally in both forward and reverse directions.

The rotational direction of Z2 series generators and voltage-regulating generators, when viewed from the shaft end, is counterclockwise. Upon request, they can also be manufactured to rotate clockwise, but must be specified when ordering.

Z2 series generators and voltage-regulating generators can be supplied as a set with Y series three-phase asynchronous motors according to customer requirements.

The rated power of the voltage-regulating generator is the power at average voltage (135 volts for 110/160 volts, and 270 volts for 220/320 volts). When the voltage is higher than the average voltage, the output power does not exceed the rated power, and when the voltage is lower than the average voltage, the output current does not exceed the rated current.

DC generators or DC voltage-regulating generators are only manufactured in horizontal types with base feet.

III. Model Explanation

Z indicates "direct" current, 2 indicates the second national standard design, and the numbers after the dash indicate the frame size and core length, for example, Z2-11, where the first "1" represents the frame size, and the second "1" represents the core length, whereas in Z2-112, "11" represents frame size 11, and "2" represents the long core.

IV. Product Performance

The basic series of DC motors have armature voltages of 110 volts and 220 volts, with rated speeds of 3000 rpm, 1500 rpm, 1000 rpm, 750 rpm, and 600 rpm.

The basic series of DC generators have rated voltages of 115 volts and 230 volts, with rated speeds of 2850 rpm and 1450 rpm; also 960 rpm.

The basic series of DC voltage-regulating generators have rated voltages of 110V/160V and 220V/320V, with rated speeds of 2850 rpm and 1450 rpm.

In addition to the three basic series of motors listed above, there is also a derived armature voltage of 180 volts.

In addition to the data listed above, any specification of motor can be derived with other voltage levels (but not exceeding the maximum allowed voltage for that specification) and corresponding power and speed, but this should be negotiated separately.

Z2 series (110V,3000r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
1	Z2-11	0.8	110	3000	10	3000	0.012	30
2	Z2-12	1.1	110	3000	13	3000	0.015	35
3	Z2-21	1.5	110	3000	17.5	3000	0.045	50
4	Z2-22	2.2	110	3000	24.7	3000	0.055	55
5	Z2-31	3	110	3000	33.2	3000	0.085	67
6	Z2-32	4	110	3000	43.3	3000	0.105	79
7	Z2-41	5.5	110	3000	62.3	3000	0.15	82
8	Z2-42	7.5	110	3000	83	3000	0.18	96
9	Z2-51	10	110	3000	107.5	3000	0.35	144

Z2 series (110V,1500r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
10	Z2-11	0.4	110	1500	5.2	3000	0.012	30
11	Z2-12	0.6	110	1500	7.55	3000	0.015	35
12	Z2-21	0.8	110	1500	9.85	3000	0.045	50
13	Z2-22	1.1	110	1500	13	3000	0.055	55
14	Z2-31	1.5	110	1500	17.5	3000	0.085	67
15	Z2-32	2.2	110	1500	24.8	3000	0.105	79
16	Z2-41	3	110	1500	34.5	3000	0.15	82
17	Z2-42	4	110	1500	44.4	3000	0.18	96
18	Z2-51	5.5	110	1500	61	2400	0.35	144
19	Z2-52	7.5	110	1500	81.7	2400	0.4	156
20	Z2-61	10	110	1500	107.5	2400	0.56	180
21	Z2-62	13	110	1500	134.4	2400	0.65	200
22	Z2-71	17	110	1500	183	2250	1	265
23	Z2-72	22	110	1500	235	2250	1.2	300
24	Z2-81	30	110	1500	317	2250	2.8	403

Z2 series (110V,1000r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
25	Z2-21	0.4	110	1000	5.31	2000	0.045	50
26	Z2-22	0.6	110	1000	7.4	2000	0.055	55
27	Z2-31	0.8	110	1000	10	2000	0.035	67
28	Z2-32	1.1	110	1000	13.35	2000	0.105	79
29	Z2-41	1.5	110	1000	18.3	2000	0.15	82
30	Z2-42	2.2	110	1000	26.4	2000	0.18	96
31	Z2-51	3	110	1000	34.3	2000	0.35	144
32	Z2-52	4	110	1000	45.2	2000	0.4	156
33	Z2-61	5.5	110	1000	61.3	2000	0.56	180
34	Z2-62	7.5	110	1000	82.2	2000	0.65	200
35	Z2-71	10	110	1000	111.6	2000	1	265
36	Z2-72	13	110	1000	142.5	2000	1.2	300
37	Z2-81	17	110	1000	188.4	2000	2.8	403
38	Z2-82	22	110	1000	238	2000	3.2	430
39	Z2-91	30	110	1000	322	2000	5.9	647
40	Z2-92	40	110	1000	425	2000	7	681

Z2 series (110V,750r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
41	Z2-31	0.6	110	750	7.91	1500	0.085	67
42	Z2-32	0.8	110	750	10.1	1500	0.108	79
43	Z2-41	1.1	110	750	14.4	1500	0.15	82
44	Z2-42	1.5	110	750	18.5	1500	0.18	96
45	Z2-51	2.2	110	750	26.5	1500	0.35	144
46	Z2-52	3	110	750	35.6	1500	0.4	156
47	Z2-61	4	110	750	47	1500	0.56	180
48	Z2-62	5.5	110	750	61.5	1500	0.65	200
49	Z2-71	7.5	110	750	86	1500	1	265
50	Z2-72	10	110	750	112	1500	1.2	300
51	Z2-81	13	110	750	148.5	1500	2.8	403
52	Z2-82	17	110	750	188.3	1500	3.2	430
53	Z2-91	22	110	750	242	1500	5.9	647
54	Z2-92	30	110	750	325	1500	7	681
55	Z2-101	40	110	750	427.5	1500	10.3	945

Z2 series (110V,600r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
56	Z2-91	17	110	600	192	1200	5.9	647
57	Z2-92	22	110	600	242.5	1200	7	681
58	Z2-101	30	110	600	327	1200	10.3	945
59	Z2-102	40	110	600	430	1200	12	1083

Z2 series (220V,3000r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
60	Z2-11	0.8	220	3000	5	3000	0.012	30
61	Z2-12	1.1	220	3000	6.52	3000	0.015	35
62	Z2-21	1.5	220	3000	8.85	3000	0.045	50
63	Z2-22	2.2	220	3000	12.2	3000	0.055	55
64	Z2-31	3	220	3000	16.6	3000	0.085	67
65	Z2-32	4	220	3000	22.4	3000	0.105	79
66	Z2-41	5.5	220	3000	31	3000	0.15	82
67	Z2-42	7.5	220	3000	41.5	3000	0.18	96
68	Z2-51	10	220	3000	54.5	3000	0.35	144
69	Z2-52	13	220	3000	68.3	3000	0.4	156
70	Z2-61	17	220	3000	88.8	3000	0.56	180
71	Z2-62	22	220	3000	113.6	3000	0.65	200

Z2 series (220V,1500r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
72	Z2-11	0.4	220	1500	2.64	3000	0.012	30
73	Z2-12	0.6	220	1500	3.77	3000	0.015	35
74	Z2-21	0.8	220	1500	4.92	3000	0.045	50
75	Z2-22	1.1	220	1500	6.5	3000	0.055	55
76	Z2-31	1.5	220	1500	8.74	3000	0.085	67
77	Z2-32	2.2	220	1500	12.5	3000	0.105	79
78	Z2-41	3	220	1500	17.2	3000	0.15	82
79	Z2-42	4	220	1500	22.7	3000	0.18	96
80	Z2-51	5.5	220	1500	30.9	2400	0.35	144
81	Z2-52	7.5	220	1500	41	2400	0.4	156
82	Z2-61	10	220	1500	53.5	2400	0.56	180
83	Z2-62	13	220	1500	68.6	2400	0.65	200
84	Z2-71	17	220	1500	91	2250	1	265
85	Z2-72	22	220	1500	116	2250	1.2	300
86	Z2-81	30	220	1500	157.5	2250	2.8	403
87	Z2-82	40	220	1500	207.5	2250	3.2	430
88	Z2-91	55	220	1500	287	2000	5.9	647
89	Z2-92	75	220	1500	383	2000	7	681
90	Z2-101	100	220	1500	511	1800	10.3	945
91	Z2-102	125	220	1500	630	1800	12	1083
92	Z2-111	160	220	1500	808	1500	20.4	1265
93	Z2-112	200	220	1500	1000	1500	23	1501

Z2 series (220V,1000r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
94	Z2-21	0.4	220	1000	2.64	2000	0.045	50
95	Z2-22	0.6	220	1000	3.7	2000	0.055	55
96	Z2-31	0.8	220	1000	4.98	2000	0.085	67
97	Z2-32	1.1	220	1000	6.6	2000	0.105	79
98	Z2-41	1.5	220	1000	8.87	2000	0.15	82
99	Z2-42	2.2	220	1000	12.67	2000	0.18	96
100	Z2-51	3	220	1000	17.1	2000	0.35	144
101	Z2-52	4	220	1000	22.4	2000	0.4	156
102	Z2-61	5.5	220	1000	30.4	2000	0.56	180
103	Z2-62	7.5	220	1000	41.1	2000	0.65	200
104	Z2-71	10	220	1000	55	2000	1	265
105	Z2-72	13	220	1000	70.1	2000	1.2	300
106	Z2-81	17	220	1000	93.6	2000	2.8	403
107	Z2-82	22	220	1000	118.3	2000	3.2	430
108	Z2-91	30	220	1000	161	2000	5.9	647
109	Z2-92	40	220	1000	211.5	2000	7	881
110	Z2-101	55	220	1000	285.5	1500	10.3	945
111	Z2-102	75	220	1000	385	1500	12	1083
112	Z2-111	100	220	1000	510	1500	20.4	1265
113	Z2-112	125	220	1000	630	1500	23	1510

Z2 series (220V,750r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
114	Z2-31	0.6	220	750	3.96	1500	0.085	67
115	Z2-32	0.8	220	750	5.1	1500	0.105	79
116	Z2-41	1.1	220	750	7.1	1500	0.15	82
117	Z2-42	1.5	220	750	9.2	1500	0.18	96
118	Z2-51	2.2	220	750	13.2	1500	0.35	144
119	Z2-52	3	220	750	17.7	1500	0.4	156
120	Z2-61	4	220	750	22.8	1500	0.56	180
121	Z2-62	5.5	220	750	30.5	1500	0.65	200
122	Z2-71	7.5	220	750	42.8	1500	1	265
123	Z2-72	10	220	750	55.4	1500	1.2	300
124	Z2-81	13	220	750	73.8	1500	2.8	403
125	Z2-82	17	220	750	93.6	1500	3.2	430
126	Z2-91	22	220	750	121	1500	5.9	647
127	Z2-92	30	220	750	161.5	1500	7	681
128	Z2-101	40	220	750	212.5	1500	10.3	945
129	Z2-102	55	220	750	285	1500	12	1086
130	Z2-111	75	220	750	387	1500	20.4	1265
131	Z2-112	100	220	750	514	1500	23	1510

Z2 series (220V,600r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
132	Z2-91	17	220	600	95.5	1200	5.9	647
133	Z2-92	22	220	600	120.5	1200	7	681
134	Z2-101	30	220	600	162.5	1200	10.3	945
135	Z2-102	40	220	600	214	1200	12	1083
136	Z2-111	55	220	600	287	1200	20.4	1265
137	Z2-112	75	220	600	387	1200	23	1510

Z2 series (115V,2850r/min) of generator

serial number	motor type	kW	V	r/min	A	％	original motor type	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	efficiency	original motor type	weight
138	Z2-21	1.4	115	2850	12.2	78	Y90L-2	50
139	Z2-22	1.9	115	2850	16.6	79	Y100L-2	55
140	Z2-31	2.5	115	2850	21.8	81	Y112M-2	67
141	Z2-32	3.5	115	2850	30.5	81.5	Y132S1-2	79
142	Z2-41	4.8	115	2850	41.8	81.5	Y132S2-2	82
143	Z2-42	6.5	115	2850	56.5	83	Y160M1-2	96
144	Z2-51	9	115	2850	78.2	84.5	Y160M2-2	144
145	Z2-52	11.5	115	2850	100	85	Y160M2-2	156

Z2 series (115V,1450r/min) of generator

serial number	motor type	kW	V	r/min	A	％	original motor type	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	efficiency	original motor type	weight
146	Z2-21	0.7	115	1450	6.15	70	Y90S-4	50
147	Z2-22	1	115	1450	8.7	73	Y90L-4	55
148	Z2-31	1.4	115	1450	12.2	77	Y100L1-4	67
149	Z2-32	1.9	115	1450	16.5	79	Y100L2-4	79
150	Z2-41	2.5	115	1450	21.8	79	Y112M-4	82
151	Z2-42	3.5	115	1450	30.5	81	Y132S-4	96
152	Z2-51	4.8	115	1450	41.8	81	Y132M-4	144
153	Z2-52	6.5	115	1450	56.5	83.5	Y160M-4	156
154	Z2-61	9	115	1450	78.2	84	Y160M-4	180
155	Z2-62	11.5	115	1450	100	84.5	Y160L-4	200
156	Z2-71	15	115	1450	130.4	85	Y180M-4	265
157	Z2-72	19.5	115	1450	170	85.5	Y200L-4	300
158	Z2-81	26	115	1450	226	86	Y225S-4	403

Z2 series (230V,2850r/min) of generator

serial number	motor type	kW	V	r/min	A	％	original motor type	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	efficiency	original motor type	weight
159	Z2-21	1.4	230	2850	6.1	78	Y90L-2	50
160	Z2-22	1.9	230	2850	8.3	79	Y100L-2	55
161	Z2-31	2.5	230	2850	10.9	81	Y112M-2	67
162	Z2-32	3.5	230	2850	15.3	81.5	Y132S1-2	79
163	Z2-41	4.8	230	2850	20.9	81.5	Y132S2-2	82
164	Z2-42	6.5	230	2850	28.3	83	Y160M1-2	96
165	Z2-51	9	230	2850	39.1	84.5	Y160M2-2	144
166	Z2-52	11.5	230	2850	50	85	Y160M2-2	156
167	Z2-61	15	230	2850	65.2	86	Y160L-2	180
168	Z2-62	19.5	230	2850	84.8	86.5	Y200L1-2	200

Z2 series (230V,1450r/min) of generator

serial number	motor type	kW	V	r/min	A	％	original motor type	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	efficiency	original motor type	weight
169	Z2-21	0.7	230	1450	3.04	70	Y90S-4	50
170	Z2-22	1	230	1450	4.35	73	Y90L-4	55
171	Z2-31	1.4	230	1450	6.1	77	Y100L1-4	67
172	Z2-32	1.9	230	1450	8.3	79	Y100L2-4	79
173	Z2-41	2.5	230	1450	10.9	79	Y112M-4	82
174	Z2-42	3.5	230	1450	15.3	81	Y132S-4	96
175	Z2-51	4.8	230	1450	20.9	81	Y132M-4	144
176	Z2-52	6.5	230	1450	28.3	83.5	Y160M-4	156
177	Z2-61	9	230	1450	39.1	84	Y160M-4	180
178	Z2-62	11.5	230	1450	50	84.5	Y160L-4	200
179	Z2-71	15	230	1450	65.2	85	Y180M-4	265
180	Z2-72	19.5	230	1450	85	85.5	Y200L-4	300
181	Z2-81	26	230	1450	113	86	Y225S-4	403
182	Z2-82	35	230	1450	152.2	87	Y225M-4	430
183	Z2-91	48	230	1450	209	88	Y280S-4	647
184	Z2-92	65	230	1450	283	88.5	Y280M-4	681
185	Z2-101	90	230	1450	392	89	Y315S-4	945
186	Z2-102	115	230	1450	500	89	Y315M1-4	1083
187	Z2-111	145	230	1450	630	90	Y315M2-4	1265
188	Z2-112	185	230	1450	805	91	Y355M2-4	1510

Z2 series (110/160V,2850r/min) of voltage regulation generator

Serial number	motor type	rating data					voltage				prime	kg
		kw	V	r/min	A	％	110V		160V		prime	kg
		power	voltage	running speed	current	efficiency	kw	A	kw	A	motor type	weight
		power	voltage	running speed	current	efficiency	power	current	power	current	motor type	weight
189	Z2-21	1.1	135	2850	8.15	76	0.9	8.15	1.1	6.88	Y90L-2	50
190	Z2-22	1.5	135	2850	11.2	79	1.23	11.2	1.5	9.38	Y90L-2	55
191	Z2-31	2.2	135	2850	16.3	79.5	1.8	16.3	2.2	13.8	Y100L-2	67
192	Z2-32	3	135	2850	22.2	81.5	2.44	22.2	3	18.8	Y112M-2	70
193	Z2-41	4	135	2850	29.6	78	3.26	29.6	4	25	Y132S1-2	82
194	Z2-42	5.5	135	2850	40.8	81	4.49	40.8	5.5	34.4	Y132S2-2	96
195	Z2-51	7.5	135	2850	55.6	82	6.12	55.6	7.5	46.9	Y160M1-2	144
196	Z2-52	10	135	2850	74.1	83	8.15	74.1	10	62.5	Y160M2-2	156
197	Z2-61	13	135	2850	96.3	84	10.6	96.3	13	81.3	Y160L-2	180

Z2 series (110/160V,1450r/min) of voltage regulation generator

serial number	motor type	rating data					voltage				prime	kg
		kw	V	r/min	A	％	110V		160V		prime	kg
		power	voltage	running speed	current	efficiency	kw	A	kw	A	motor type	weight
		power	voltage	running speed	current	efficiency	power	current	power	current	motor type	weight
198	Z2-21	0.6	135	1450	4.45	67	0.49	4.45	0.6	3.75	Y90S-4	50
199	Z2-22	0.8	135	1450	5.93	73	0.65	5.93	0.8	5	Y90S-4	55
200	Z2-31	1.1	135	1450	8.15	77	0.9	8.15	1.1	6.88	Y90L-4	67
201	Z2-32	1.5	135	1450	11.2	77	1.23	11.2	1.5	9.4	Y100L1-4	79
202	Z2-41	2.2	135	1450	16.3	75	1.8	16.3	2.2	13.8	Y100L2-4	82
203	Z2-42	3	135	1450	22.2	80	2.44	22.2	3	18.8	Y112M-4	96
204	Z2-51	4	135	1450	29.6	80	3.26	29.6	4	25	Y132S-4	144
205	Z2-52	5.5	135	1450	40.8	81	4.49	40.8	5.5	34.4	Y132M-4	156
206	Z2-61	7.5	135	1450	55.6	83	6.12	55.6	7.5	46.9	Y160M-4	180
207	Z2-62	10	135	1450	74.1	81	8.15	74.1	10	62.5	Y160L-4	200
208	Z2-71	13	135	1450	96.3	83	10.6	96.3	13	81.3	Y180M-4	265
209	Z2-72	17	135	1450	126	84	13.9	126	17	106.3	Y180M-4	300
210	Z2-81	22	135	1450	163	85	17.9	163	22	137.5	Y200L-4	403
211	Z2-82	30	135	1450	222	86	24.5	222	30	187.5	Y225S-4	430

Z2 series (220/320V,2850r/min) of voltage regulation generator

		rating data					voltage
serial number	motor type	kw	V	r/min	A	％	110V		160V		prime	kg
		power	voltage	running speed	current	efficiency	kw	A	kw	A	motor type	weight
		power	voltage	running speed	current	efficiency	power	current	power	current	motor type	weight
212	Z2-21	1.1	270	2850	4.08	76	0.9	4.08	1.1	3.44	Y90L-2	50
213	Z2-22	1.5	270	2850	5.6	70	1.23	5.6	1.5	4.69	Y90L-2	55
214	Z2-31	2.2	270	2850	8.15	79.5	1.8	8.15	2.2	6.88	Y100L-2	67
215	Z2-32	3	270	2850	11.2	81.5	2.44	11.2	3	9.38	Y112M-2	79
216	Z2-41	4	270	2850	14.8	78	3.26	14.8	4	12.5	Y132S1-2	82
217	Z2-42	5.5	270	2850	20.4	81	4.49	20.4	5.5	17.2	Y132S2-2	96
218	Z2-51	7.5	270	2850	27.8	82	6.12	27.8	7.5	23.4	Y160M1-2	144
219	Z2-52	10	270	2850	37	83	8.15	37	10	31.3	Y160M2-2	156
220	Z2-61	13	270	2850	48.2	84	10.6	48.2	13	40.7	Y160L-2	180
221	Z2-62	17	270	2850	63	86	13.9	63	17	53.2	Y180M-2	200

Z2 series (220/320V,1450r/min) of voltage regulation generator

serial number	motor type	rating data					voltage				prime	kg
		kw	V	r/min	A	％	110V		160V		prime	kg
		power	voltage	running speed	current	efficiency	kw	A	kw	A	motor type	weight
		power	voltage	running speed	current	efficiency	power	current	power	current	motor type	weight
222	Z2-21	0.6	270	1450	2.23	67	0.49	2.23	0.6	1.88	Y90S-4	50
223	Z2-22	0.8	270	1450	2.97	73	0.65	2.97	0.8	2.5	Y90S-4	55
224	Z2-31	1.1	270	1450	4.08	77	0.9	4.08	1.1	3.44	Y90L-4	67
225	Z2-32	1.5	270	1450	5.6	77	1.23	5.6	1.5	4.7	Y100L1-4	79
226	Z2-41	2.2	270	1450	8.15	75	1.8	8.15	2.2	6.88	Y100L2-4	82
227	Z2-42	3	270	1450	11.2	80	2.44	11.2	3	9.38	Y112M-4	96
228	Z2-51	4	270	1450	14.8	80	3.26	14.8	4	12.5	Y132S-4	144
229	Z2-52	5.5	270	1450	20.4	81	4.49	20.4	5.5	17.2	Y132M-4	156
230	Z2-61	7.5	270	1450	27.8	83	6.12	27.8	7.5	23.5	Y160M-4	180
231	Z2-62	10	270	1450	37.1	81	8.15	37.1	10	31.3	Y160L-4	200
232	Z2-71	13	270	1450	48.2	83	10.6	48.2	13	40.7	Y180M-4	265
233	Z2-72	17	270	1450	63	84	13.9	63	17	53.2	Y180M-4	300
234	Z2-81	22	270	1450	81.5	85	17.9	81.5	22	68.8	Y200L-4	403
235	Z2-82	30	270	1450	111.2	86	24.5	111.2	30	93.8	Y225S-4	430
236	Z2-91	40	270	1450	148	86	32.6	148	40	125	Y250M-4	647
237	Z2-92	55	270	1450	204	87	44.8	204	55	172	Y280S-4	681
238	Z2-101	75	270	1450	278	88.5	61.2	278	75	234	Y280M-4	945
239	Z2-102	100	270	1450	370	89	81.7	370	100	312.5	Y315M1-4	1083
240	Z2-111	125	270	1450	463	90	102	463	125	391	Y315M2-4	1265
241	Z2-112	160	270	1450	593	90.5	130.4	593	160	500	Y355M1-4	1510

rated voltage 440V DC motor

motor type	rating power	rating voltage	rating current	rating running speed	excitation type	excitation coltage	remarks
motor type	kW	V	A	r/min	excitation type	V	remarks
Z2-51	1.2	440	3.9	700/2100	Shunt
Z2-32	2.2	440	6	1500	Separate	220
Z2-42	4	440	10.8	1800	Separate	220
Z2-62	5.5	440	14.9	1350/2000	Shunt
Z2-52	7.5	440	20	1500	Separate	220
Z2-42	7.5	440	20	3000	Separate	110/220
Z2-62	11	440	28.5/30	1500/3000	Separate	220
Z2-62	13	440	33.7	1500/2000	Separate	220
Z2-91	17	440	47.5	600	Shunt
Z2-91	17	440	47	600	Series
Z2-71	17	440	45.1	1500	Shunt
Separate	22	440	59.5	1000		110或220
Separate	22	440	57/59	1500/2000		220
Separate	30	440	82.5	1000		220
Separate	30	440	80	1500		220
Separate	40	440	107/109	600/1200		110/220
Separate	40	440	106/108	750/1500		220
Separate	40	440	104.2	1000		220
Z2-112	75	440	191/193	600/1200	Separate	220
Z2-111	75	440	191	750	Separate	220
Z2-93	75	440	191.5	1500	Separate	220
Z2-113	100	440	225	750/1500	Separate	220
Z2-111	100	440	285/261	1000/1800	Separate	220/440
Z2-102	100	440	253	1500	Separate	220
Z2-102	100/50	440/220	254/127	1500/750	Comp
Z2-113	100/50	440	257/131	850/1700	Separate	180
Z2-112	125	440	318	1000/1500	Separate	220
Z2-111	160	440	410	1500	Separate Comp	220
Z2-113	225	440	560	1500/1800	Separate	220

rated voltage 460V generator

motor type	rating power	rating voltage	rating current	rating running speed	excitation type	remarks
motor type	kW	V	A	r/min	excitation type	remarks
Z2-62	11.5	460	25	1450	Comp.
Z2-62	11.5	460	25	1450	Separate 230V
Z2-62	11.5	460	25	1450	Separate 220/40V
Z2-81	19.5	460	42.4	1450	Comp.
Z2-81	19.5	460	42.4	1450	Separate 220V
Z2-82	26	460	56.5	1450	Comp.
Z2-81	26	460	56.5	1450	Separate 220V
Z2-91	48	460	104.5	1450	Comp.
Z2-91	48	460	104.5	1450	Separate 110V
Z2-91	48	460	104.5	1450	Separate 220V
Z2-92	65	460	141.5	1450	Comp.
Z2-92	65	460	141.5	1450	Separate 220V
Z2-101	65	460	141.5	1450	Separate 110V
Z2-101	65	460	141.5	1450	Separate 30V
Z2-93	65	460	141.5	1450	Comp.
Z2-93	65	460	141.5	1450	Separate 110V
Z2-93	65	460	141.5	1450	Separate 220V
Z2-101	90	460	196	1450	Comp.
Z2-101	90	460	196	1450	Separate 110V
Z2-101	90	460	196	1450	Separate 220V
Z2-101	90	460	196	1450	Separate 30V
Z2-101	90	460	196	1450	Separate 50V
Z2-101	90	460	196	1450	Separate 220V
Z2-102	115	460	250	1450	Comp.
Z2-102	115	460	250	1450	Separate 220V
Z2-111	125	460	272	1450	Separate 220V
Z2-111	145	460	316	1450	Comp.
Z2-111	145	460	316	1450	Separate 220V
Z2-111	145	460	316	1450	Separate 110V
Z2-112	185	460	402	1450	Comp.
Z2-112	185	460	402	1450	Separate 220V
Z2-112	185	460	402	1450	Separate Comp.220V
Z2-112	185	460	402	1450	Separate 110V

Z2T wide range speed-adjusting DC motor

motor type	rating power	rating voltage	rating current	rating running speed	excitation type	remarks
motor type	kW	V	A	r/min	excitation type	remarks
ZT2-72	2.5	220	16	300/1200	Shunt
ZT2-62	1.65	220	10.4	350/1400	Shunt
ZT2-81	4	220	25/27	400/1200	Shunt
ZT2-101	12	220	67/78	400/1200	Separate 200V
ZT2-113	40	220	210	400/1200	Separate 200V
ZT2-111	22	220	120.5/127	400/1600	Shunt
ZTO2-52	0.32/0.96	110	4.8/12	450/1350	Comp.
ZTO2-52	0.32/0.96	220	2.4/5.9	450/1350	Comp.
ZT2-91	7.5	220	46/48	500/1500	Separate 200V
ZT2-93	17	220	93	500/1500	Separate 200V
ZT2-112	55	220	298/300	500/1500	Comp.
ZT2-52	1.4	220	18/20	500/2000	Shunt
ZT2-52	1.4	110	9.0/9.7	500/2000	Shunt
ZT2-92	10	110	119/133	500/2000	Shunt
ZT2-92	10	220	55/66	500/2000	Shunt
ZT2-101	13	220	71.5/95	500/2000	Shunt
ZT2-102	22	220	121/140	500/2000	Shunt
ZT2-82	6.5	220	37/42	500/1650	Separate 200V
ZT2-92	17	220	93/96	600/1800	Shunt
ZT2-101	17	220	93/102	600/1800	Separate 200V
ZT2-71	22	220	120/135	600/1800	Separate 110V/200V
ZT2-72	4	220	23.6/29	600/2400	Shunt
ZT2-81	5.5	220	33/37	600/2400	Shunt
ZT2-82	7.5	110	88/104	600/2400	Shunt
ZT2-111	7.5	220	43.7/52	600/2400	Shunt
ZT2-42	55	220	283/305	700/2100	Shunt
ZT2-51	1.2	220	7.7/8.5	700/2100	Shunt
ZT2-51	1.2	440	3.9/4.4	700/2100	Shunt
ZT2-51	1.6	110	19.4/24.0	700/2100	Shunt
ZT2-52	1.6	220	10.1/12	700/2100	Shunt
ZT2-52	2.5	220	14.9/15.9	700/2100	Shunt
ZT2-52	2.5	110	29/33	700/2100	Shunt
ZT2-52	2	220	12.5/13.3	700/2800	Shunt
ZT2-82	13	220	72/77	750/2250	Shunt
ZT2-42	1.1	220	6.7/8.2	750/3000	Comp.
ZT2-52	2.2	220	13.4/15	750/3000	Shunt
ZT2-61	3	220	17.7/25	750/3000	Shunt
ZT2-22	0.3	110	4.4	800/2400	Shunt
ZT2-32	0.8	220	4.9/5.7	1000/3000	Shunt
ZT2-41	1.1	220	6.6/8.2	1000/3000	Shunt
ZT2-51	2.2	220	12.8/15	1000/3000	Shunt
ZT2-52	3	220	17.1/20	1000/3000	Shunt
ZT2-82	17	220	91/102	1000/3000	Separate 200V

Z2 series (220V,750r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
114	Z2-31	0.6	220	750	3.96	1500	0.085	67
115	Z2-32	0.8	220	750	5.1	1500	0.105	79
116	Z2-41	1.1	220	750	7.1	1500	0.15	82
117	Z2-42	1.5	220	750	9.2	1500	0.18	96
118	Z2-51	2.2	220	750	13.2	1500	0.35	144
119	Z2-52	3	220	750	17.7	1500	0.4	156
120	Z2-61	4	220	750	22.8	1500	0.56	180
121	Z2-62	5.5	220	750	30.5	1500	0.65	200
122	Z2-71	7.5	220	750	42.8	1500	1	265
123	Z2-72	10	220	750	55.4	1500	1.2	300
124	Z2-81	13	220	750	73.8	1500	2.8	403
125	Z2-82	17	220	750	93.6	1500	3.2	430
126	Z2-91	22	220	750	121	1500	5.9	647
127	Z2-92	30	220	750	161.5	1500	7	681
128	Z2-101	40	220	750	212.5	1500	10.3	945
129	Z2-102	55	220	750	285	1500	12	1086
130	Z2-111	75	220	750	387	1500	20.4	1265
131	Z2-112	100	220	750	514	1500	23	1510

Z2 series (220V,600r/min) of motor

serial number	motor type	kW	V	r/min	A	r/min	kg·m2	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	Max. running speed	moment of inertia	weight
132	Z2-91	17	220	600	95.5	1200	5.9	647
133	Z2-92	22	220	600	120.5	1200	7	681
134	Z2-101	30	220	600	162.5	1200	10.3	945
135	Z2-102	40	220	600	214	1200	12	1083
136	Z2-111	55	220	600	287	1200	20.4	1265
137	Z2-112	75	220	600	387	1200	23	1510

Z2 series (115V,2850r/min) of generator

serial number	motor type	kW	V	r/min	A	％	original motor type	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	efficiency	original motor type	weight
138	Z2-21	1.4	115	2850	12.2	78	Y90L-2	50
139	Z2-22	1.9	115	2850	16.6	79	Y100L-2	55
140	Z2-31	2.5	115	2850	21.8	81	Y112M-2	67
141	Z2-32	3.5	115	2850	30.5	81.5	Y132S1-2	79
142	Z2-41	4.8	115	2850	41.8	81.5	Y132S2-2	82
143	Z2-42	6.5	115	2850	56.5	83	Y160M1-2	96
144	Z2-51	9	115	2850	78.2	84.5	Y160M2-2	144
145	Z2-52	11.5	115	2850	100	85	Y160M2-2	156

Z2 series (115V,1450r/min) of generator

serial number	motor type	kW	V	r/min	A	％	original motor type	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	efficiency	original motor type	weight
146	Z2-21	0.7	115	1450	6.15	70	Y90S-4	50
147	Z2-22	1	115	1450	8.7	73	Y90L-4	55
148	Z2-31	1.4	115	1450	12.2	77	Y100L1-4	67
149	Z2-32	1.9	115	1450	16.5	79	Y100L2-4	79
150	Z2-41	2.5	115	1450	21.8	79	Y112M-4	82
151	Z2-42	3.5	115	1450	30.5	81	Y132S-4	96
152	Z2-51	4.8	115	1450	41.8	81	Y132M-4	144
153	Z2-52	6.5	115	1450	56.5	83.5	Y160M-4	156
154	Z2-61	9	115	1450	78.2	84	Y160M-4	180
155	Z2-62	11.5	115	1450	100	84.5	Y160L-4	200
156	Z2-71	15	115	1450	130.4	85	Y180M-4	265
157	Z2-72	19.5	115	1450	170	85.5	Y200L-4	300
158	Z2-81	26	115	1450	226	86	Y225S-4	403

Z2 series (230V,2850r/min) of generator

serial number	motor type	kW	V	r/min	A	％	original motor type	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	efficiency	original motor type	weight
159	Z2-21	1.4	230	2850	6.1	78	Y90L-2	50
160	Z2-22	1.9	230	2850	8.3	79	Y100L-2	55
161	Z2-31	2.5	230	2850	10.9	81	Y112M-2	67
162	Z2-32	3.5	230	2850	15.3	81.5	Y132S1-2	79
163	Z2-41	4.8	230	2850	20.9	81.5	Y132S2-2	82
164	Z2-42	6.5	230	2850	28.3	83	Y160M1-2	96
165	Z2-51	9	230	2850	39.1	84.5	Y160M2-2	144
166	Z2-52	11.5	230	2850	50	85	Y160M2-2	156
167	Z2-61	15	230	2850	65.2	86	Y160L-2	180
168	Z2-62	19.5	230	2850	84.8	86.5	Y200L1-2	200

Z2 series (230V,1450r/min) of generator

serial number	motor type	kW	V	r/min	A	％	original motor type	kg
serial number	motor type	rating power	rating voltage	rating running speed	rating current	efficiency	original motor type	weight
169	Z2-21	0.7	230	1450	3.04	70	Y90S-4	50
170	Z2-22	1	230	1450	4.35	73	Y90L-4	55
171	Z2-31	1.4	230	1450	6.1	77	Y100L1-4	67
172	Z2-32	1.9	230	1450	8.3	79	Y100L2-4	79
173	Z2-41	2.5	230	1450	10.9	79	Y112M-4	82
174	Z2-42	3.5	230	1450	15.3	81	Y132S-4	96
175	Z2-51	4.8	230	1450	20.9	81	Y132M-4	144
176	Z2-52	6.5	230	1450	28.3	83.5	Y160M-4	156
177	Z2-61	9	230	1450	39.1	84	Y160M-4	180
178	Z2-62	11.5	230	1450	50	84.5	Y160L-4	200
179	Z2-71	15	230	1450	65.2	85	Y180M-4	265
180	Z2-72	19.5	230	1450	85	85.5	Y200L-4	300
181	Z2-81	26	230	1450	113	86	Y225S-4	403
182	Z2-82	35	230	1450	152.2	87	Y225M-4	430
183	Z2-91	48	230	1450	209	88	Y280S-4	647
184	Z2-92	65	230	1450	283	88.5	Y280M-4	681
185	Z2-101	90	230	1450	392	89	Y315S-4	945
186	Z2-102	115	230	1450	500	89	Y315M1-4	1083
187	Z2-111	145	230	1450	630	90	Y315M2-4	1265
188	Z2-112	185	230	1450	805	91	Y355M2-4	1510

Z2 series (110/160V,2850r/min) of voltage regulation generator

Serial number	motor type	rating data					voltage				prime	kg
		kw	V	r/min	A	％	110V		160V		prime	kg
		power	voltage	running speed	current	efficiency	kw	A	kw	A	motor type	weight
		power	voltage	running speed	current	efficiency	power	current	power	current	motor type	weight
189	Z2-21	1.1	135	2850	8.15	76	0.9	8.15	1.1	6.88	Y90L-2	50
190	Z2-22	1.5	135	2850	11.2	79	1.23	11.2	1.5	9.38	Y90L-2	55
191	Z2-31	2.2	135	2850	16.3	79.5	1.8	16.3	2.2	13.8	Y100L-2	67
192	Z2-32	3	135	2850	22.2	81.5	2.44	22.2	3	18.8	Y112M-2	70
193	Z2-41	4	135	2850	29.6	78	3.26	29.6	4	25	Y132S1-2	82
194	Z2-42	5.5	135	2850	40.8	81	4.49	40.8	5.5	34.4	Y132S2-2	96
195	Z2-51	7.5	135	2850	55.6	82	6.12	55.6	7.5	46.9	Y160M1-2	144
196	Z2-52	10	135	2850	74.1	83	8.15	74.1	10	62.5	Y160M2-2	156
197	Z2-61	13	135	2850	96.3	84	10.6	96.3	13	81.3	Y160L-2	180

Z2 series (110/160V,1450r/min) of voltage regulation generator

serial number	motor type	rating data					voltage				prime	kg
		kw	V	r/min	A	％	110V		160V		prime	kg
		power	voltage	running speed	current	efficiency	kw	A	kw	A	motor type	weight
		power	voltage	running speed	current	efficiency	power	current	power	current	motor type	weight
198	Z2-21	0.6	135	1450	4.45	67	0.49	4.45	0.6	3.75	Y90S-4	50
199	Z2-22	0.8	135	1450	5.93	73	0.65	5.93	0.8	5	Y90S-4	55
200	Z2-31	1.1	135	1450	8.15	77	0.9	8.15	1.1	6.88	Y90L-4	67
201	Z2-32	1.5	135	1450	11.2	77	1.23	11.2	1.5	9.4	Y100L1-4	79
202	Z2-41	2.2	135	1450	16.3	75	1.8	16.3	2.2	13.8	Y100L2-4	82
203	Z2-42	3	135	1450	22.2	80	2.44	22.2	3	18.8	Y112M-4	96
204	Z2-51	4	135	1450	29.6	80	3.26	29.6	4	25	Y132S-4	144
205	Z2-52	5.5	135	1450	40.8	81	4.49	40.8	5.5	34.4	Y132M-4	156
206	Z2-61	7.5	135	1450	55.6	83	6.12	55.6	7.5	46.9	Y160M-4	180
207	Z2-62	10	135	1450	74.1	81	8.15	74.1	10	62.5	Y160L-4	200
208	Z2-71	13	135	1450	96.3	83	10.6	96.3	13	81.3	Y180M-4	265
209	Z2-72	17	135	1450	126	84	13.9	126	17	106.3	Y180M-4	300
210	Z2-81	22	135	1450	163	85	17.9	163	22	137.5	Y200L-4	403
211	Z2-82	30	135	1450	222	86	24.5	222	30	187.5	Y225S-4	430

Z2 series (220/320V,2850r/min) of voltage regulation generator

		rating data					voltage
serial number	motor type	kw	V	r/min	A	％	110V		160V		prime	kg
		power	voltage	running speed	current	efficiency	kw	A	kw	A	motor type	weight
		power	voltage	running speed	current	efficiency	power	current	power	current	motor type	weight
212	Z2-21	1.1	270	2850	4.08	76	0.9	4.08	1.1	3.44	Y90L-2	50
213	Z2-22	1.5	270	2850	5.6	70	1.23	5.6	1.5	4.69	Y90L-2	55
214	Z2-31	2.2	270	2850	8.15	79.5	1.8	8.15	2.2	6.88	Y100L-2	67
215	Z2-32	3	270	2850	11.2	81.5	2.44	11.2	3	9.38	Y112M-2	79
216	Z2-41	4	270	2850	14.8	78	3.26	14.8	4	12.5	Y132S1-2	82
217	Z2-42	5.5	270	2850	20.4	81	4.49	20.4	5.5	17.2	Y132S2-2	96
218	Z2-51	7.5	270	2850	27.8	82	6.12	27.8	7.5	23.4	Y160M1-2	144
219	Z2-52	10	270	2850	37	83	8.15	37	10	31.3	Y160M2-2	156
220	Z2-61	13	270	2850	48.2	84	10.6	48.2	13	40.7	Y160L-2	180
221	Z2-62	17	270	2850	63	86	13.9	63	17	53.2	Y180M-2	200

Z2 series (220/320V,1450r/min) of voltage regulation generator

serial number	motor type	rating data					voltage				prime	kg
		kw	V	r/min	A	％	110V		160V		prime	kg
		power	voltage	running speed	current	efficiency	kw	A	kw	A	motor type	weight
		power	voltage	running speed	current	efficiency	power	current	power	current	motor type	weight
222	Z2-21	0.6	270	1450	2.23	67	0.49	2.23	0.6	1.88	Y90S-4	50
223	Z2-22	0.8	270	1450	2.97	73	0.65	2.97	0.8	2.5	Y90S-4	55
224	Z2-31	1.1	270	1450	4.08	77	0.9	4.08	1.1	3.44	Y90L-4	67
225	Z2-32	1.5	270	1450	5.6	77	1.23	5.6	1.5	4.7	Y100L1-4	79
226	Z2-41	2.2	270	1450	8.15	75	1.8	8.15	2.2	6.88	Y100L2-4	82
227	Z2-42	3	270	1450	11.2	80	2.44	11.2	3	9.38	Y112M-4	96
228	Z2-51	4	270	1450	14.8	80	3.26	14.8	4	12.5	Y132S-4	144
229	Z2-52	5.5	270	1450	20.4	81	4.49	20.4	5.5	17.2	Y132M-4	156
230	Z2-61	7.5	270	1450	27.8	83	6.12	27.8	7.5	23.5	Y160M-4	180
231	Z2-62	10	270	1450	37.1	81	8.15	37.1	10	31.3	Y160L-4	200
232	Z2-71	13	270	1450	48.2	83	10.6	48.2	13	40.7	Y180M-4	265
233	Z2-72	17	270	1450	63	84	13.9	63	17	53.2	Y180M-4	300
234	Z2-81	22	270	1450	81.5	85	17.9	81.5	22	68.8	Y200L-4	403
235	Z2-82	30	270	1450	111.2	86	24.5	111.2	30	93.8	Y225S-4	430
236	Z2-91	40	270	1450	148	86	32.6	148	40	125	Y250M-4	647
237	Z2-92	55	270	1450	204	87	44.8	204	55	172	Y280S-4	681
238	Z2-101	75	270	1450	278	88.5	61.2	278	75	234	Y280M-4	945
239	Z2-102	100	270	1450	370	89	81.7	370	100	312.5	Y315M1-4	1083
240	Z2-111	125	270	1450	463	90	102	463	125	391	Y315M2-4	1265
241	Z2-112	160	270	1450	593	90.5	130.4	593	160	500	Y355M1-4	1510

rated voltage 440V DC motor

motor type	rating power	rating voltage	rating current	rating running speed	excitation type	excitation coltage	remarks
motor type	kW	V	A	r/min	excitation type	V	remarks
Z2-51	1.2	440	3.9	700/2100	Shunt
Z2-32	2.2	440	6	1500	Separate	220
Z2-42	4	440	10.8	1800	Separate	220
Z2-62	5.5	440	14.9	1350/2000	Shunt
Z2-52	7.5	440	20	1500	Separate	220
Z2-42	7.5	440	20	3000	Separate	110/220
Z2-62	11	440	28.5/30	1500/3000	Separate	220
Z2-62	13	440	33.7	1500/2000	Separate	220
Z2-91	17	440	47.5	600	Shunt
Z2-91	17	440	47	600	Series
Z2-71	17	440	45.1	1500	Shunt
Separate	22	440	59.5	1000		110或220
Separate	22	440	57/59	1500/2000		220
Separate	30	440	82.5	1000		220
Separate	30	440	80	1500		220
Separate	40	440	107/109	600/1200		110/220
Separate	40	440	106/108	750/1500		220
Separate	40	440	104.2	1000		220
Z2-112	75	440	191/193	600/1200	Separate	220
Z2-111	75	440	191	750	Separate	220
Z2-93	75	440	191.5	1500	Separate	220
Z2-113	100	440	225	750/1500	Separate	220
Z2-111	100	440	285/261	1000/1800	Separate	220/440
Z2-102	100	440	253	1500	Separate	220
Z2-102	100/50	440/220	254/127	1500/750	Comp
Z2-113	100/50	440	257/131	850/1700	Separate	180
Z2-112	125	440	318	1000/1500	Separate	220
Z2-111	160	440	410	1500	Separate Comp	220
Z2-113	225	440	560	1500/1800	Separate	220

rated voltage 460V generator

motor type	rating power	rating voltage	rating current	rating running speed	excitation type	remarks
motor type	kW	V	A	r/min	excitation type	remarks
Z2-62	11.5	460	25	1450	Comp.
Z2-62	11.5	460	25	1450	Separate 230V
Z2-62	11.5	460	25	1450	Separate 220/40V
Z2-81	19.5	460	42.4	1450	Comp.
Z2-81	19.5	460	42.4	1450	Separate 220V
Z2-82	26	460	56.5	1450	Comp.
Z2-81	26	460	56.5	1450	Separate 220V
Z2-91	48	460	104.5	1450	Comp.
Z2-91	48	460	104.5	1450	Separate 110V
Z2-91	48	460	104.5	1450	Separate 220V
Z2-92	65	460	141.5	1450	Comp.
Z2-92	65	460	141.5	1450	Separate 220V
Z2-101	65	460	141.5	1450	Separate 110V
Z2-101	65	460	141.5	1450	Separate 30V
Z2-93	65	460	141.5	1450	Comp.
Z2-93	65	460	141.5	1450	Separate 110V
Z2-93	65	460	141.5	1450	Separate 220V
Z2-101	90	460	196	1450	Comp.
Z2-101	90	460	196	1450	Separate 110V
Z2-101	90	460	196	1450	Separate 220V
Z2-101	90	460	196	1450	Separate 30V
Z2-101	90	460	196	1450	Separate 50V
Z2-101	90	460	196	1450	Separate 220V
Z2-102	115	460	250	1450	Comp.
Z2-102	115	460	250	1450	Separate 220V
Z2-111	125	460	272	1450	Separate 220V
Z2-111	145	460	316	1450	Comp.
Z2-111	145	460	316	1450	Separate 220V
Z2-111	145	460	316	1450	Separate 110V
Z2-112	185	460	402	1450	Comp.
Z2-112	185	460	402	1450	Separate 220V
Z2-112	185	460	402	1450	Separate Comp.220V
Z2-112	185	460	402	1450	Separate 110V

Z2T wide range speed-adjusting DC motor

motor type	rating power	rating voltage	rating current	rating running speed	excitation type	remarks
motor type	kW	V	A	r/min	excitation type	remarks
ZT2-72	2.5	220	16	300/1200	Shunt
ZT2-62	1.65	220	10.4	350/1400	Shunt
ZT2-81	4	220	25/27	400/1200	Shunt
ZT2-101	12	220	67/78	400/1200	Separate 200V
ZT2-113	40	220	210	400/1200	Separate 200V
ZT2-111	22	220	120.5/127	400/1600	Shunt
ZTO2-52	0.32/0.96	110	4.8/12	450/1350	Comp.
ZTO2-52	0.32/0.96	220	2.4/5.9	450/1350	Comp.
ZT2-91	7.5	220	46/48	500/1500	Separate 200V
ZT2-93	17	220	93	500/1500	Separate 200V
ZT2-112	55	220	298/300	500/1500	Comp.
ZT2-52	1.4	220	18/20	500/2000	Shunt
ZT2-52	1.4	110	9.0/9.7	500/2000	Shunt
ZT2-92	10	110	119/133	500/2000	Shunt
ZT2-92	10	220	55/66	500/2000	Shunt
ZT2-101	13	220	71.5/95	500/2000	Shunt
ZT2-102	22	220	121/140	500/2000	Shunt
ZT2-82	6.5	220	37/42	500/1650	Separate 200V
ZT2-92	17	220	93/96	600/1800	Shunt
ZT2-101	17	220	93/102	600/1800	Separate 200V
ZT2-71	22	220	120/135	600/1800	Separate 110V/200V
ZT2-72	4	220	23.6/29	600/2400	Shunt
ZT2-81	5.5	220	33/37	600/2400	Shunt
ZT2-82	7.5	110	88/104	600/2400	Shunt
ZT2-111	7.5	220	43.7/52	600/2400	Shunt
ZT2-42	55	220	283/305	700/2100	Shunt
ZT2-51	1.2	220	7.7/8.5	700/2100	Shunt
ZT2-51	1.2	440	3.9/4.4	700/2100	Shunt
ZT2-51	1.6	110	19.4/24.0	700/2100	Shunt
ZT2-52	1.6	220	10.1/12	700/2100	Shunt
ZT2-52	2.5	220	14.9/15.9	700/2100	Shunt
ZT2-52	2.5	110	29/33	700/2100	Shunt
ZT2-52	2	220	12.5/13.3	700/2800	Shunt
ZT2-82	13	220	72/77	750/2250	Shunt
ZT2-42	1.1	220	6.7/8.2	750/3000	Comp.
ZT2-52	2.2	220	13.4/15	750/3000	Shunt
ZT2-61	3	220	17.7/25	750/3000	Shunt
ZT2-22	0.3	110	4.4	800/2400	Shunt
ZT2-32	0.8	220	4.9/5.7	1000/3000	Shunt
ZT2-41	1.1	220	6.6/8.2	1000/3000	Shunt
ZT2-51	2.2	220	12.8/15	1000/3000	Shunt
ZT2-52	3	220	17.1/20	1000/3000	Shunt
ZT2-82	17	220	91/102	1000/3000	Separate 200V

Z2 series dc motor dc motor

Related Products

YRKK Series wound rotor slip ring high voltage Ac Motor

YR Series wound rotor slip ring high voltage ac motor

YPT Series asynchronous servo Ac Motor

YKS Series squirrel cage high voltage Ac Motor

YKK Series squirrel cage high voltage asynchronous Ac Motor

YE3 Series squirrel cage asynchronous Ac Motor

Z2 series dc motor

Related Products

Wangpai Motor
